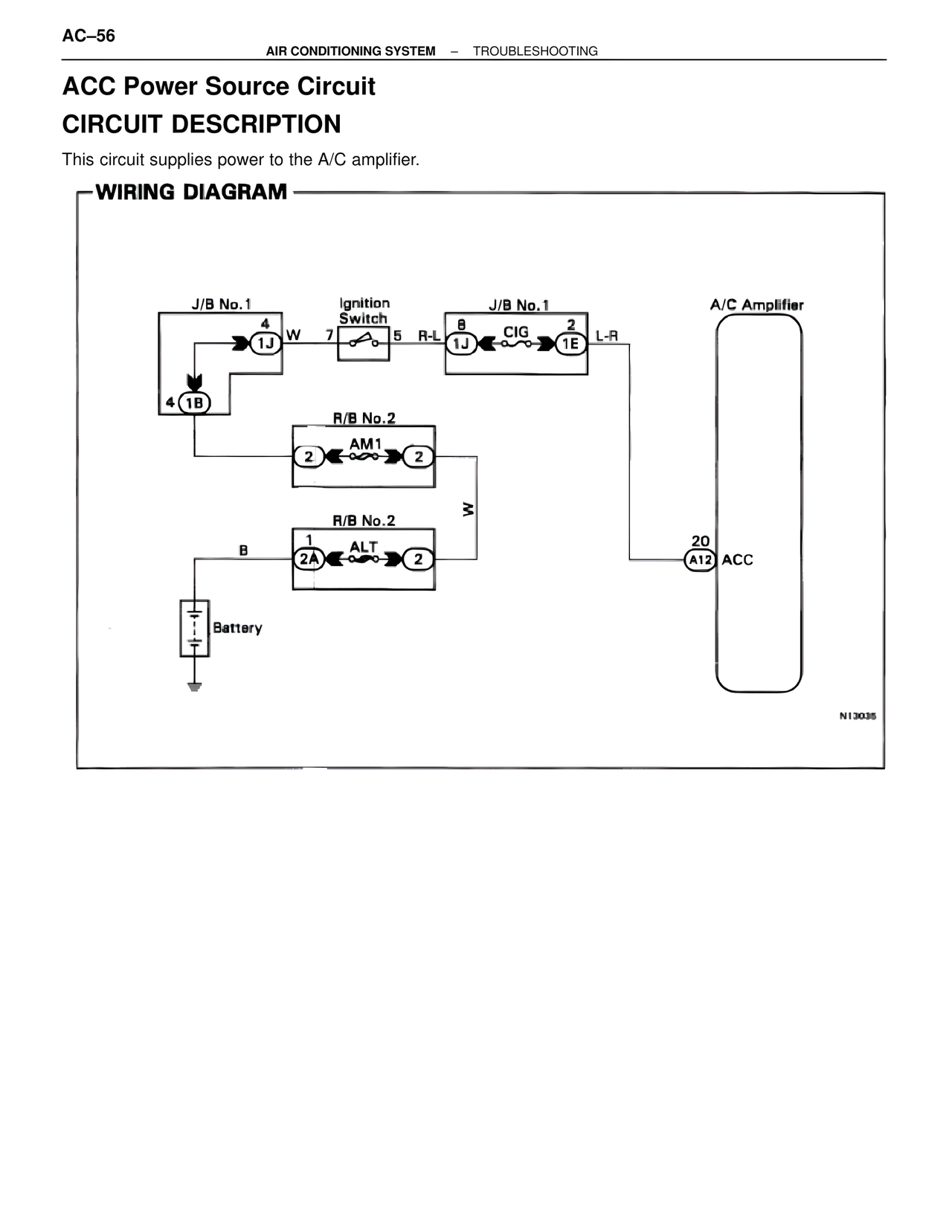

AC–56 AIR CONDITIONING SYSTEM – TROUBLESHOOTING ACC Power Source Circuit CIRCUIT DESCRIPTION This circuit supplies power to the A/C amplifier. WIRING DIAGRAM J/B No.1 4 1J W 7 Ignition Switch 5 R-L J/B No.1 8 CIG 2 1J 1E L-R A/C Amplifier 4 1B R/B No.2 2 AM1 2 R/B No.2 B 1 ALT 2 2A Battery 20 A12 ACC N13035
