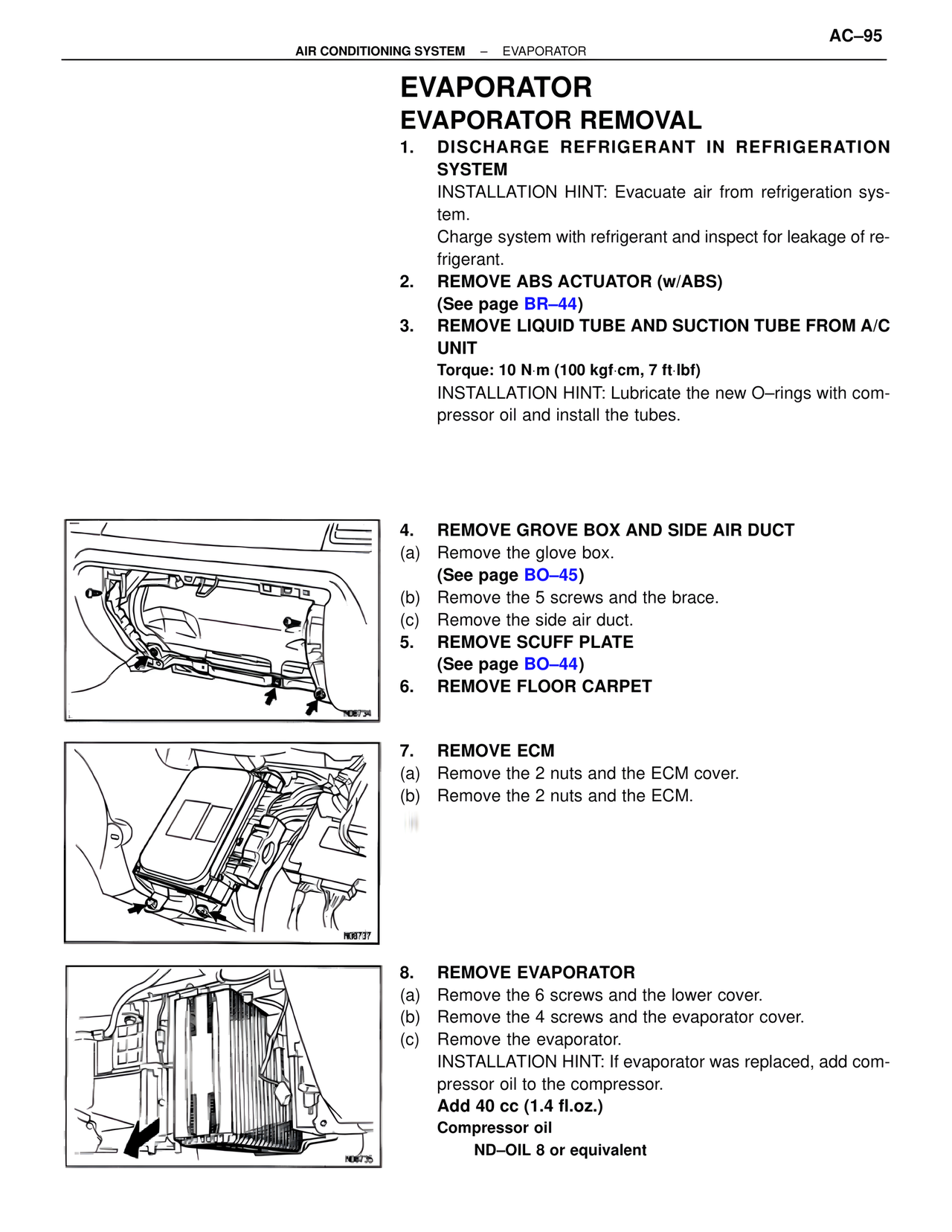

AC–95 AIR CONDITIONING SYSTEM – EVAPORATOR EVAPORATOR EVAPORATOR REMOVAL 1. DISCHARGE REFRIGERANT IN REFRIGERATION SYSTEM INSTALLATION HINT: Evacuate air from refrigeration system. Charge system with refrigerant and inspect for leakage of refrigerant. 2. REMOVE ABS ACTUATOR (w/ABS) (See page BR–44) 3. REMOVE LIQUID TUBE AND SUCTION TUBE FROM A/C UNIT Torque: 10 N·m (100 kgf·cm, 7 ft·lbf) INSTALLATION HINT: Lubricate the new O–rings with compressor oil and install the tubes. 4. REMOVE GROVE BOX AND SIDE AIR DUCT (a) Remove the glove box. (See page BO–45) (b) Remove the 5 screws and the brace. (c) Remove the side air duct. 5. REMOVE SCUFF PLATE (See page BO–44) 6. REMOVE FLOOR CARPET 7. REMOVE ECM (a) Remove the 2 nuts and the ECM cover. (b) Remove the 2 nuts and the ECM. 8. REMOVE EVAPORATOR (a) Remove the 6 screws and the lower cover. (b) Remove the 4 screws and the evaporator cover. (c) Remove the evaporator. INSTALLATION HINT: If evaporator was replaced, add compressor oil to the compressor. Add 40 cc (1.4 fl.oz.) Compressor oil ND–OIL 8 or equivalent N08734 N08737 N08735
