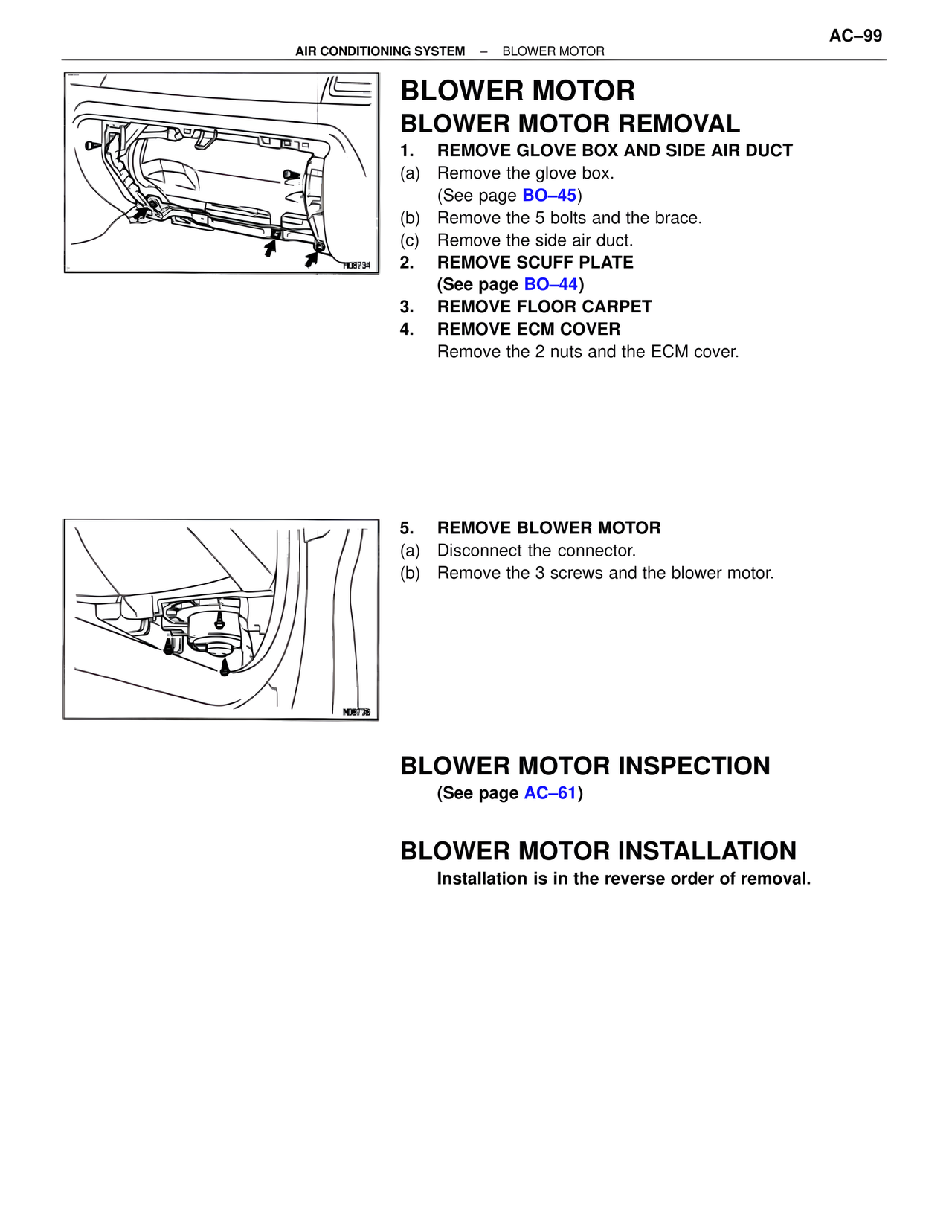

BLOWER MOTOR BLOWER MOTOR REMOVAL 1. REMOVE GLOVE BOX AND SIDE AIR DUCT (a) Remove the glove box. (See page BO–45) (b) Remove the 5 bolts and the brace. (c) Remove the side air duct. 2. REMOVE SCUFF PLATE (See page BO–44) 3. REMOVE FLOOR CARPET 4. REMOVE ECM COVER Remove the 2 nuts and the ECM cover. 5. REMOVE BLOWER MOTOR (a) Disconnect the connector. (b) Remove the 3 screws and the blower motor. BLOWER MOTOR INSPECTION (See page AC–61) BLOWER MOTOR INSTALLATION Installation is in the reverse order of removal. N08734 N08738
