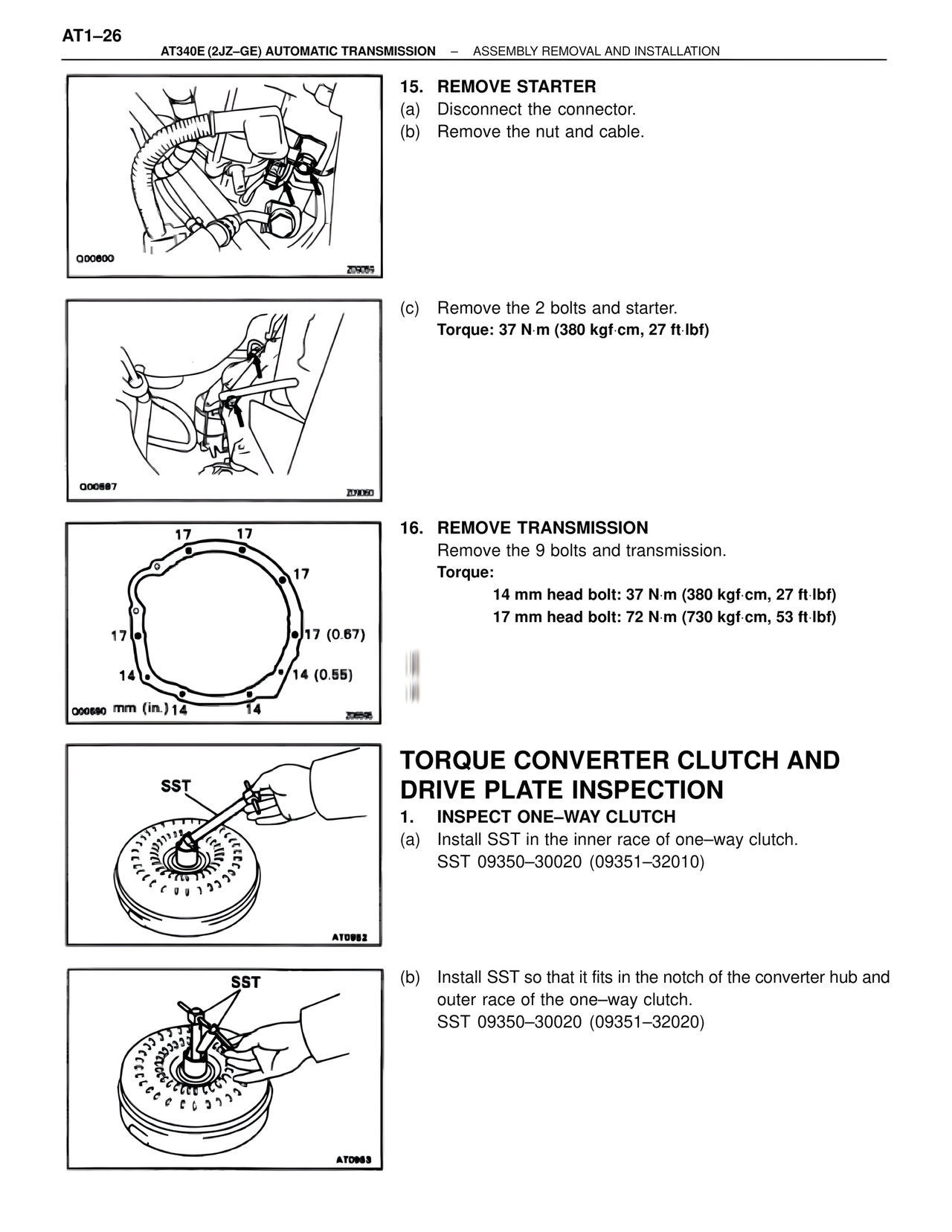

AT1–26 AT340E (2JZ–GE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION 15. REMOVE STARTER (a) Disconnect the connector. (b) Remove the nut and cable. (c) Remove the 2 bolts and starter. Torque: 37 N·m (380 kgf·cm, 27 ft·lbf) 16. REMOVE TRANSMISSION Remove the 9 bolts and transmission. Torque: 14 mm head bolt: 37 N·m (380 kgf·cm, 27 ft·lbf) 17 mm head bolt: 72 N·m (730 kgf·cm, 53 ft·lbf) 17 17 17 17 (0.67) 14 14 (0.55) mm (in.) 14 14 TORQUE CONVERTER CLUTCH AND DRIVE PLATE INSPECTION 1. INSPECT ONE–WAY CLUTCH (a) Install SST in the inner race of one–way clutch. SST 09350–30020 (09351–32010) (b) Install SST so that it fits in the notch of the converter hub and outer race of the one–way clutch. SST 09350–30020 (09351–32020)
