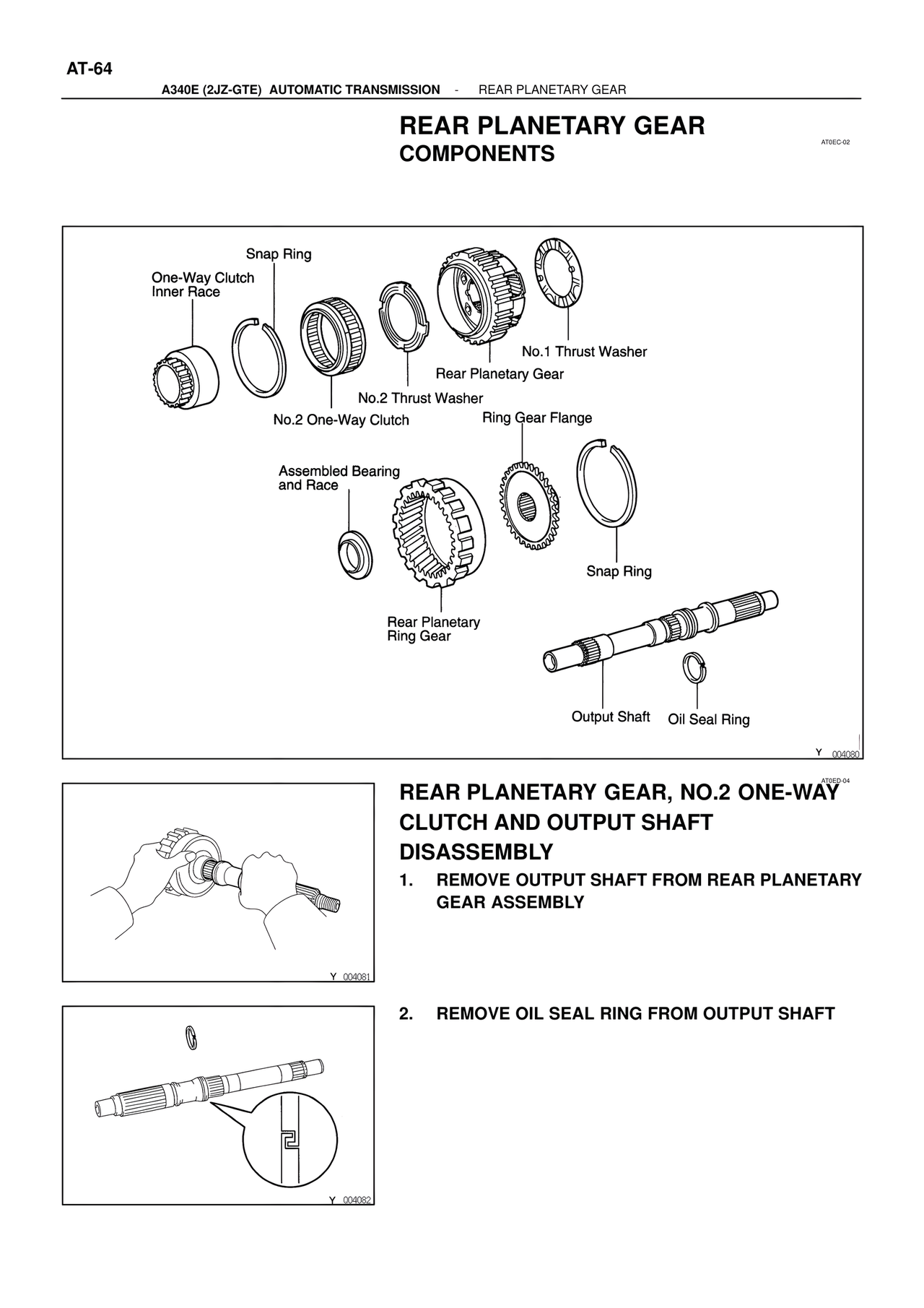

AT-64 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - REAR PLANETARY GEAR REAR PLANETARY GEAR COMPONENTS AT0EC-02 Snap Ring One-Way Clutch Inner Race No.2 One-Way Clutch No.2 Thrust Washer Rear Planetary Gear No.1 Thrust Washer Ring Gear Flange Assembled Bearing and Race Rear Planetary Ring Gear Snap Ring Output Shaft Oil Seal Ring Y 004080 AT0ED-04 REAR PLANETARY GEAR, NO.2 ONE-WAY CLUTCH AND OUTPUT SHAFT DISASSEMBLY 1. REMOVE OUTPUT SHAFT FROM REAR PLANETARY GEAR ASSEMBLY Y 004081 2. REMOVE OIL SEAL RING FROM OUTPUT SHAFT Y 004082
