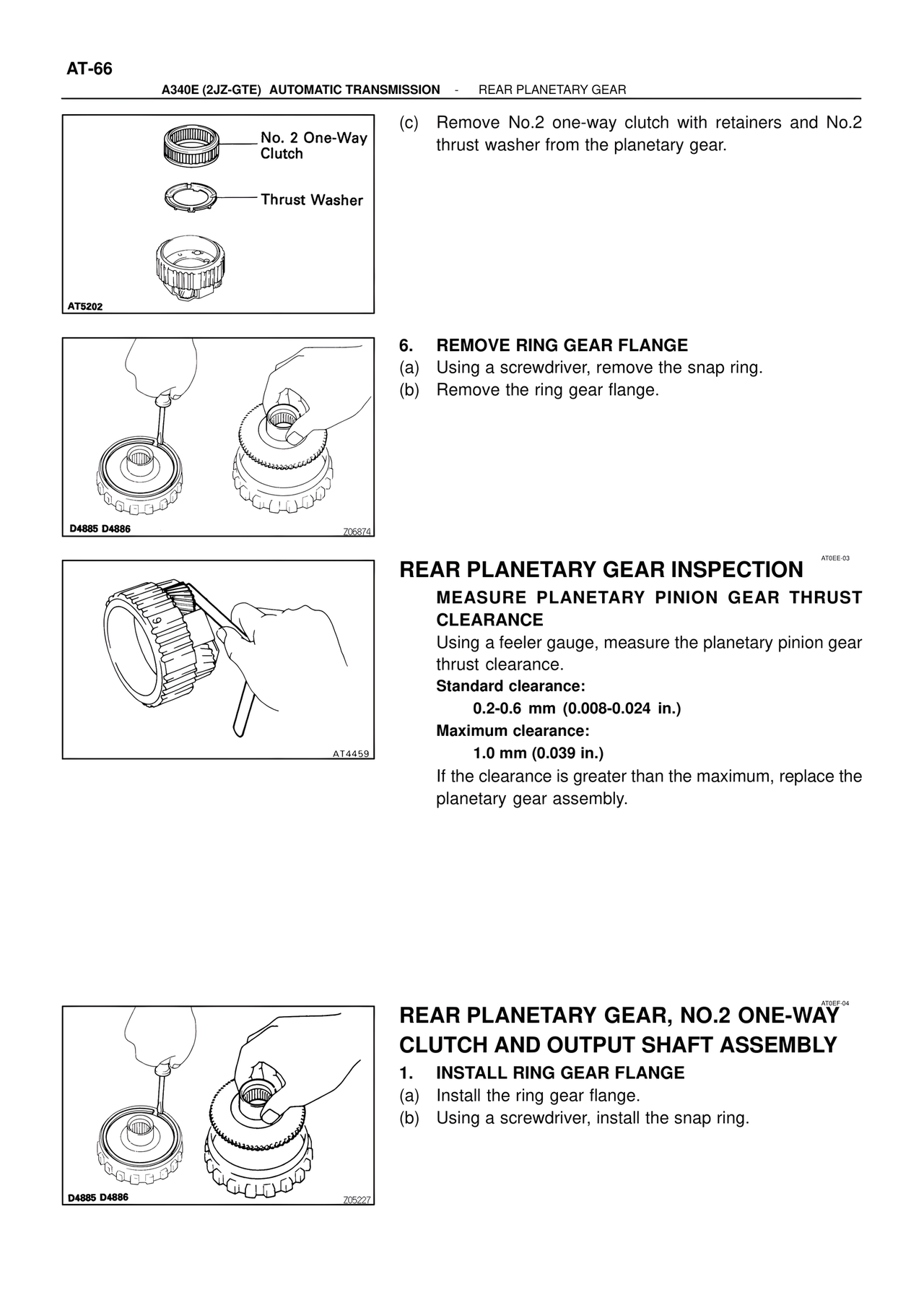

AT-66 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - REAR PLANETARY GEAR No. 2 One-Way Clutch Thrust Washer AT5202 (c) Remove No.2 one-way clutch with retainers and No.2 thrust washer from the planetary gear. D4885 D4886 Z06874 6. REMOVE RING GEAR FLANGE (a) Using a screwdriver, remove the snap ring. (b) Remove the ring gear flange. AT4459 REAR PLANETARY GEAR INSPECTION AT0EE-03 MEASURE PLANETARY PINION GEAR THRUST CLEARANCE Using a feeler gauge, measure the planetary pinion gear thrust clearance. Standard clearance: 0.2-0.6 mm (0.008-0.024 in.) Maximum clearance: 1.0 mm (0.039 in.) If the clearance is greater than the maximum, replace the planetary gear assembly. REAR PLANETARY GEAR, NO.2 ONE-WAY AT0EF-04 CLUTCH AND OUTPUT SHAFT ASSEMBLY 1. INSTALL RING GEAR FLANGE (a) Install the ring gear flange. (b) Using a screwdriver, install the snap ring. D4885 D4886 Z05227
