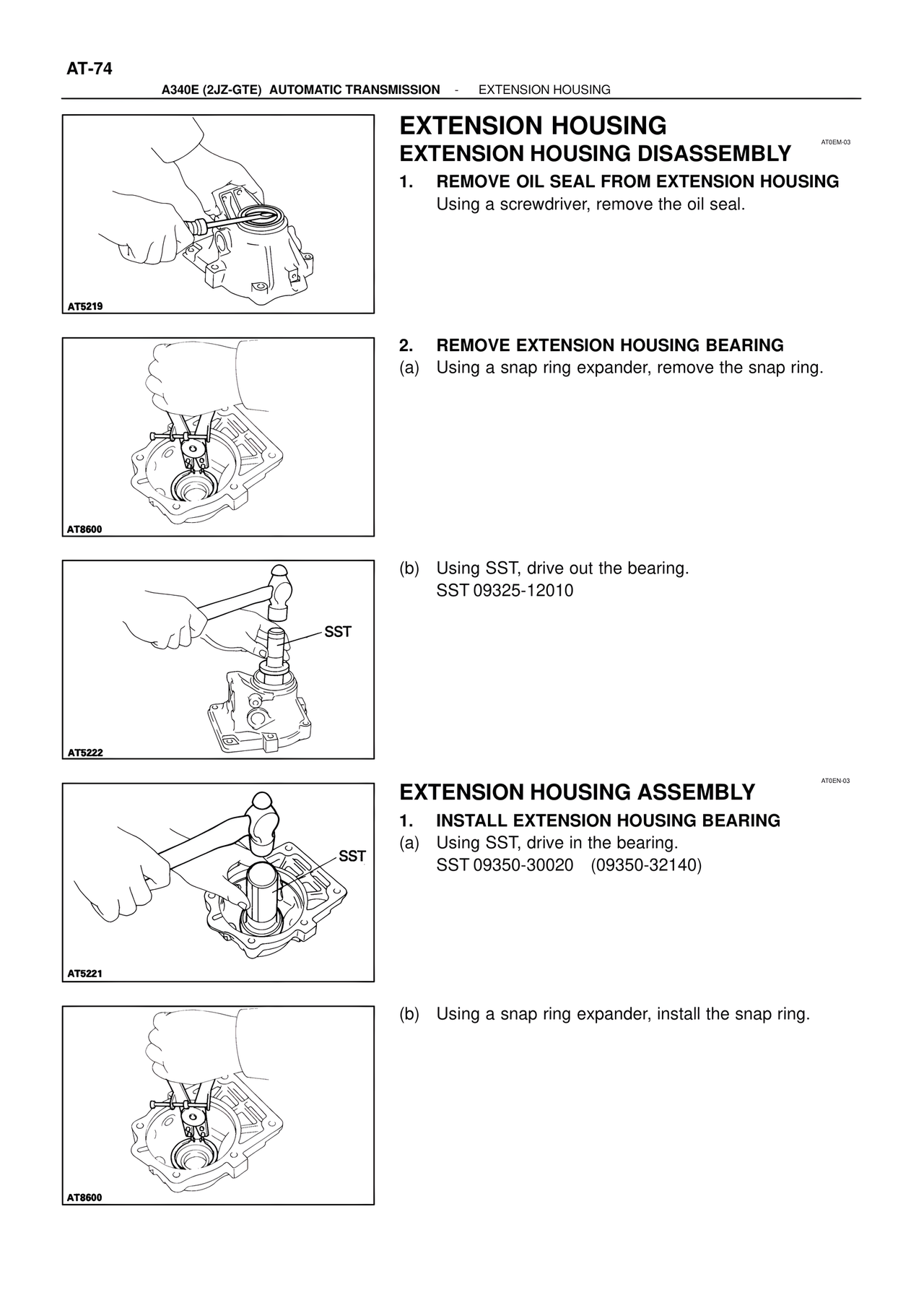

AT-74 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - EXTENSION HOUSING EXTENSION HOUSING EXTENSION HOUSING DISASSEMBLY AT0EM-03 1. REMOVE OIL SEAL FROM EXTENSION HOUSING Using a screwdriver, remove the oil seal. AT5219 2. REMOVE EXTENSION HOUSING BEARING (a) Using a snap ring expander, remove the snap ring. AT8600 (b) Using SST, drive out the bearing. SST 09325-12010 SST AT5222 EXTENSION HOUSING ASSEMBLY AT0EN-03 1. INSTALL EXTENSION HOUSING BEARING (a) Using SST, drive in the bearing. SST 09350-30020 (09350-32140) SST AT5221 (b) Using a snap ring expander, install the snap ring. AT8600
