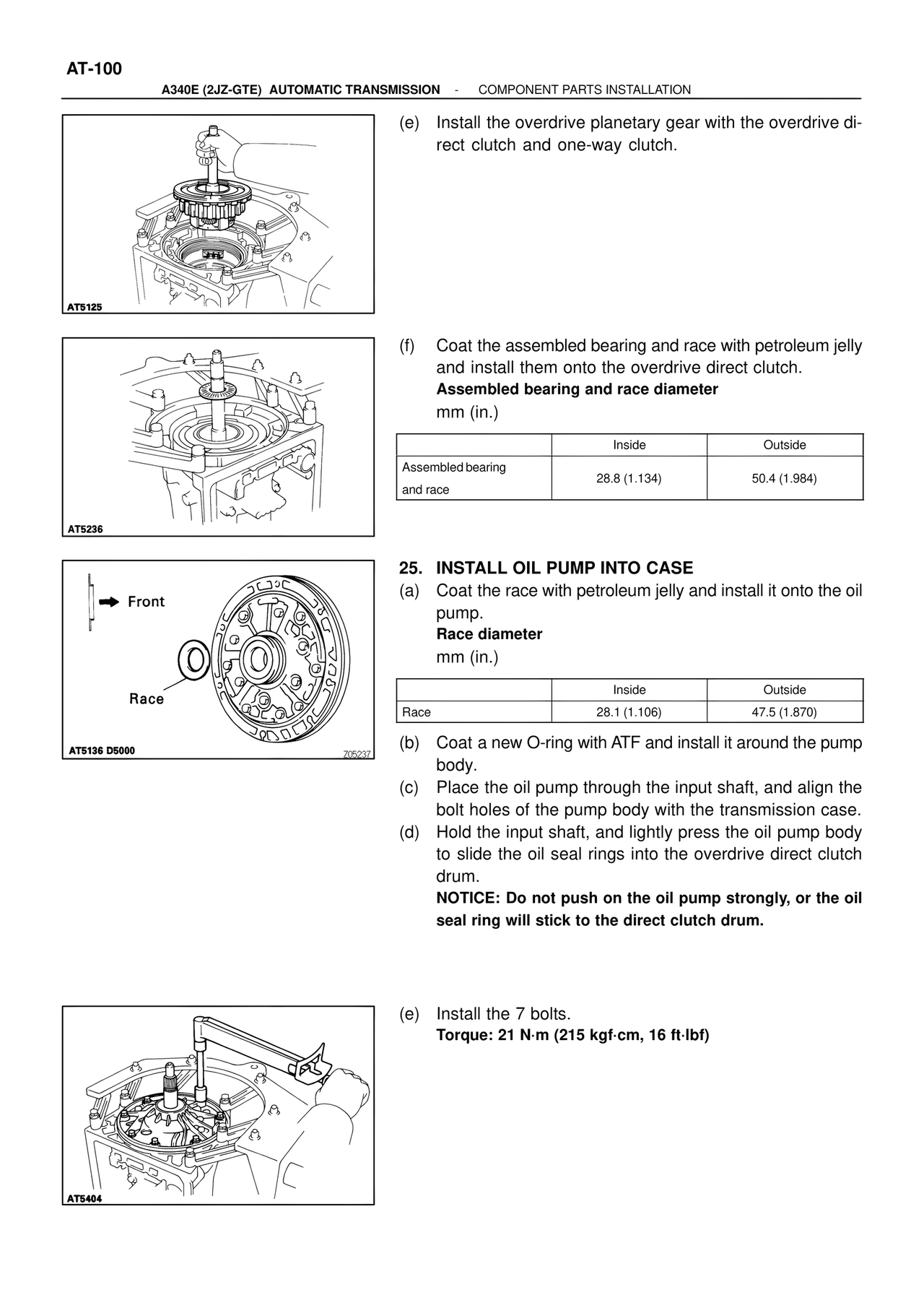

AT-100 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION AT5125 (e) Install the overdrive planetary gear with the overdrive direct clutch and one-way clutch. AT5236 (f) Coat the assembled bearing and race with petroleum jelly and install them onto the overdrive direct clutch. Assembled bearing and race diameter mm (in.) Inside Outside Assembled bearing and race 28.8 (1.134) 50.4 (1.984) ← Front Race AT5136 D5000 Z05237 25. INSTALL OIL PUMP INTO CASE (a) Coat the race with petroleum jelly and install it onto the oil pump. Race diameter mm (in.) Inside Outside Race 28.1 (1.106) 47.5 (1.870) (b) Coat a new O-ring with ATF and install it around the pump body. (c) Place the oil pump through the input shaft, and align the bolt holes of the pump body with the transmission case. (d) Hold the input shaft, and lightly press the oil pump body to slide the oil seal rings into the overdrive direct clutch drum. NOTICE: Do not push on the oil pump strongly, or the oil seal ring will stick to the direct clutch drum. AT5404 (e) Install the 7 bolts. Torque: 21 N·m (215 kgf·cm, 16 ft·lbf)
