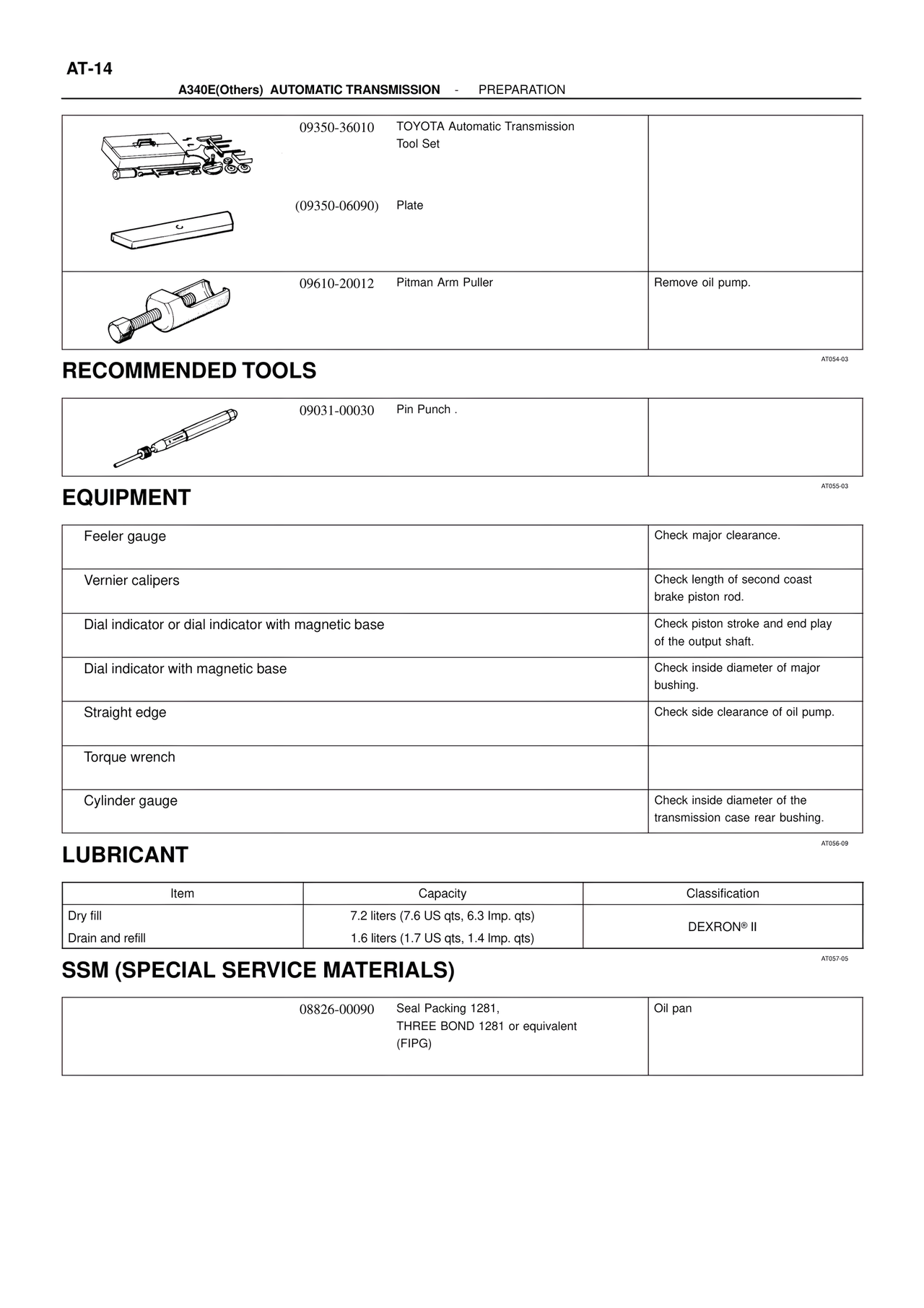

AT-14 A340E(Others) AUTOMATIC TRANSMISSION - PREPARATION 09350-36010 TOYOTA Automatic Transmission Tool Set (09350-06090) Plate 09610-20012 Pitman Arm Puller Remove oil pump. AT054-03 RECOMMENDED TOOLS 09031-00030 Pin Punch . AT055-03 EQUIPMENT Feeler gauge Check major clearance. Vernier calipers Check length of second coast brake piston rod. Dial indicator or dial indicator with magnetic base Check piston stroke and end play of the output shaft. Dial indicator with magnetic base Check inside diameter of major bushing. Straight edge Check side clearance of oil pump. Torque wrench Cylinder gauge Check inside diameter of the transmission case rear bushing. AT056-09 LUBRICANT Item Capacity Classification Dry fill 7.2 liters (7.6 US qts, 6.3 Imp. qts) DEXRON® II Drain and refill 1.6 liters (1.7 US qts, 1.4 Imp. qts) AT057-05 SSM (SPECIAL SERVICE MATERIALS) 08826-00090 Seal Packing 1281, THREE BOND 1281 or equivalent (FIPG) Oil pan
