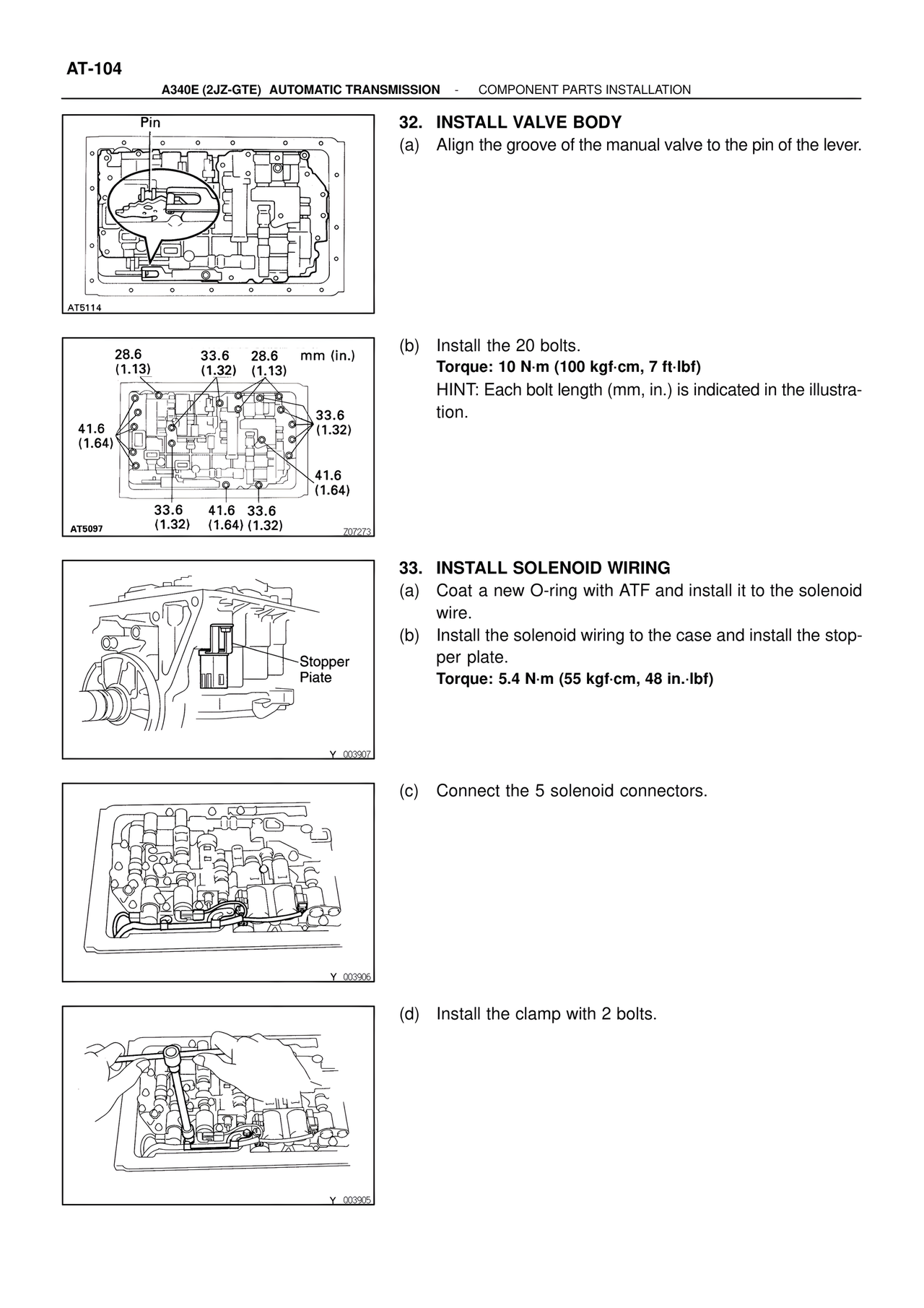

AT-104
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
Pin
AT5114
28.6 33.6 28.6 mm (in.)
(1.13) (1.32) (1.13)
33.6
(1.32)
41.6
(1.64)
41.6
(1.64)
AT5097 33.6 41.6 33.6
(1.32) (1.64) (1.32)
707273
Stopper
Plate
Y_003907
Y_003906
Y_003905
32. INSTALL VALVE BODY
(a) Align the groove of the manual valve to the pin of the lever.
(b) Install the 20 bolts.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
HINT: Each bolt length (mm, in.) is indicated in the illustration.
33. INSTALL SOLENOID WIRING
(a) Coat a new O-ring with ATF and install it to the solenoid wire.
(b) Install the solenoid wiring to the case and install the stopper plate.
Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf)
(c) Connect the 5 solenoid connectors.
(d) Install the clamp with 2 bolts.
