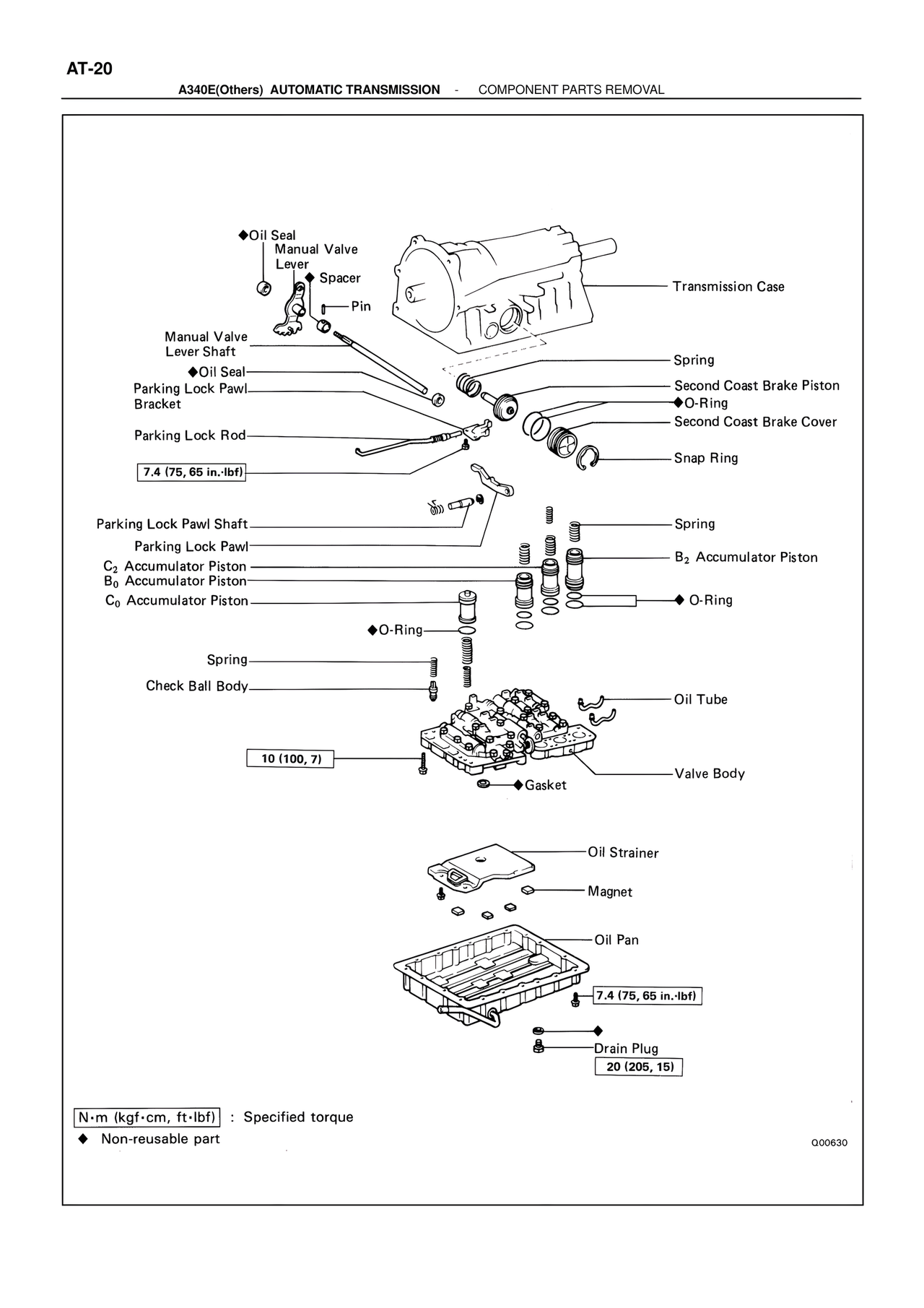

AT-20 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL ♦Oil Seal Manual Valve Lever ♦ Spacer — Pin Manual Valve Lever Shaft ♦Oil Seal Parking Lock Pawl Bracket Parking Lock Rod 7.4 (75, 65 in.·lbf) Parking Lock Pawl Shaft Parking Lock Pawl C2 Accumulator Piston B0 Accumulator Piston C0 Accumulator Piston ♦O-Ring Spring Check Ball Body 10 (100, 7) Transmission Case Spring Second Coast Brake Piston ♦O-Ring Second Coast Brake Cover Snap Ring Spring B2 Accumulator Piston ♦ O-Ring Oil Tube Valve Body ♦Gasket Oil Strainer Magnet Oil Pan 7.4 (75, 65 in.·lbf) Drain Plug 20 (205, 15) N·m (kgf·cm, ft·lbf) : Specified torque ♦ Non-reusable part Q00630
