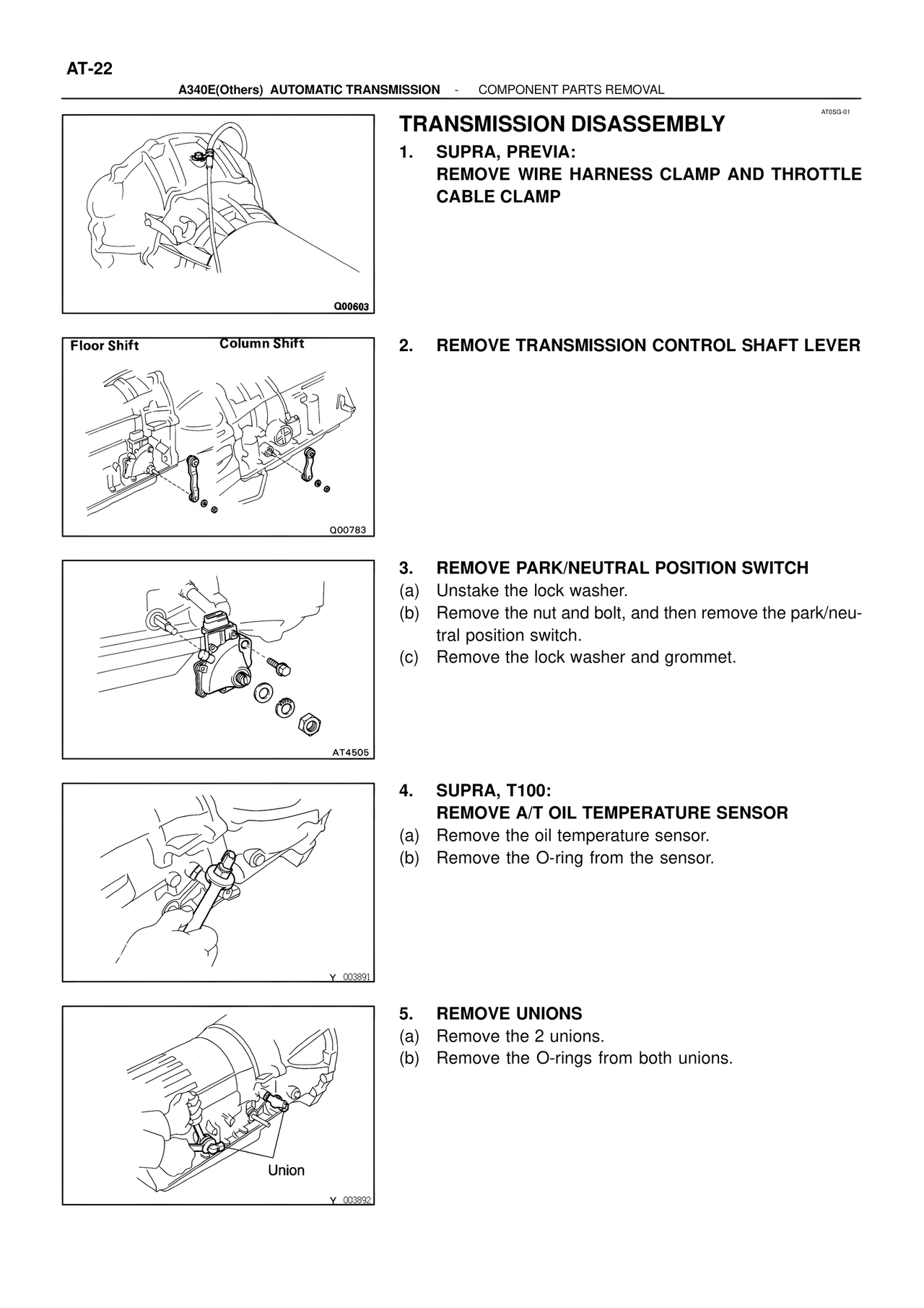

AT-22 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL AT0SG-01 TRANSMISSION DISASSEMBLY 1. SUPRA, PREVIA: REMOVE WIRE HARNESS CLAMP AND THROTTLE CABLE CLAMP Q00603 Floor Shift Column Shift 2. REMOVE TRANSMISSION CONTROL SHAFT LEVER Q00783 3. REMOVE PARK/NEUTRAL POSITION SWITCH (a) Unstake the lock washer. (b) Remove the nut and bolt, and then remove the park/neu- tral position switch. (c) Remove the lock washer and grommet. AT4505 4. SUPRA, T100: REMOVE A/T OIL TEMPERATURE SENSOR (a) Remove the oil temperature sensor. (b) Remove the O-ring from the sensor. Y_003891 5. REMOVE UNIONS (a) Remove the 2 unions. (b) Remove the O-rings from both unions. Union Y_003892
