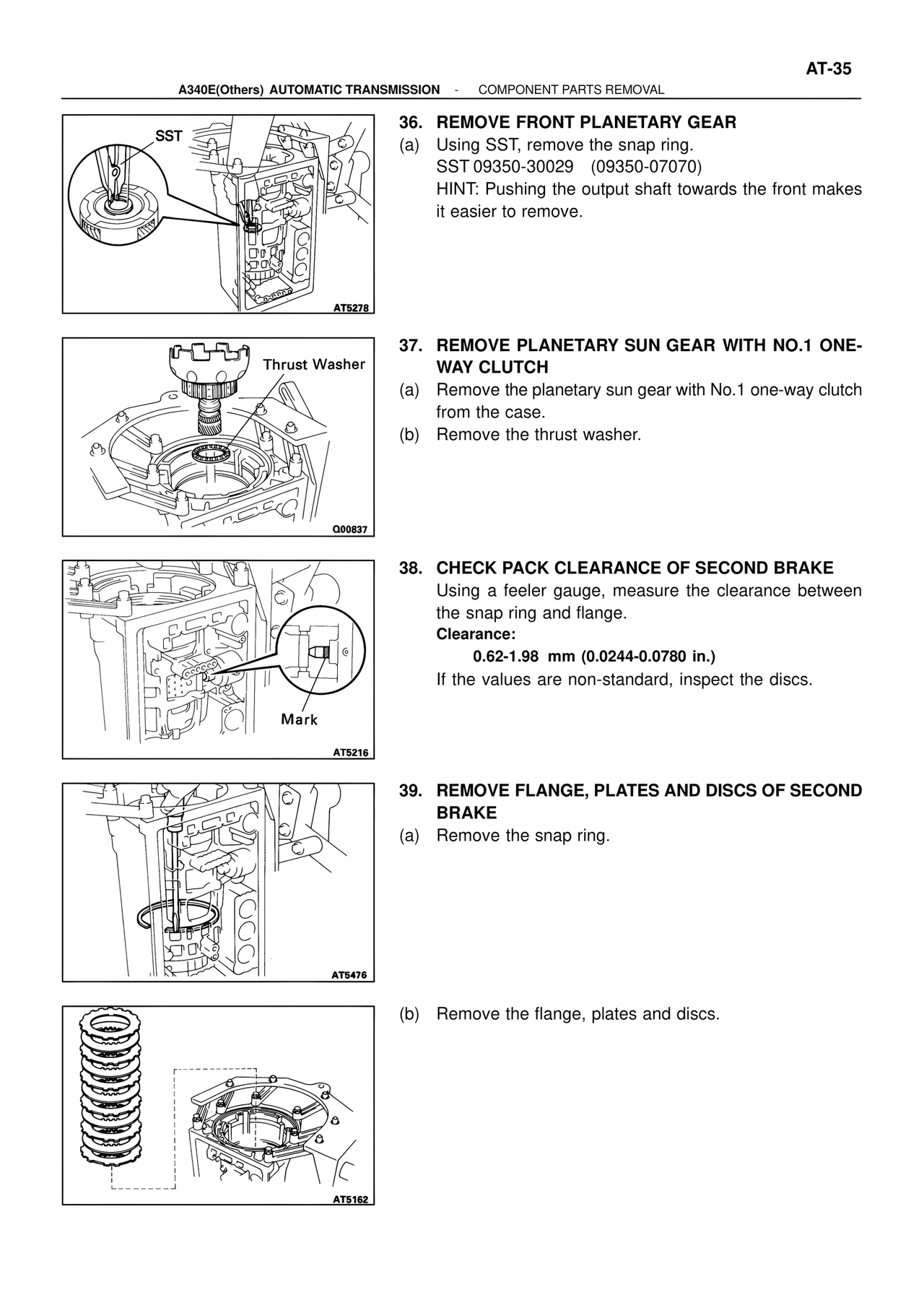

AT-35
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
SST
AT5278
36. REMOVE FRONT PLANETARY GEAR
(a) Using SST, remove the snap ring.
SST 09350-30029 (09350-07070)
HINT: Pushing the output shaft towards the front makes
it easier to remove.
Thrust Washer
Q00837
37. REMOVE PLANETARY SUN GEAR WITH NO.1 ONE-
WAY CLUTCH
(a) Remove the planetary sun gear with No.1 one-way clutch
from the case.
(b) Remove the thrust washer.
Mark
AT5216
38. CHECK PACK CLEARANCE OF SECOND BRAKE
Using a feeler gauge, measure the clearance between
the snap ring and flange.
Clearance:
0.62-1.98 mm (0.0244-0.0780 in.)
If the values are non-standard, inspect the discs.
AT5476
39. REMOVE FLANGE, PLATES AND DISCS OF SECOND
BRAKE
(a) Remove the snap ring.
AT5162
(b) Remove the flange, plates and discs.
