A340E(Others) AUTOMATIC TRANSMISSION - OVERDRIVE DIRECT CLUTCH

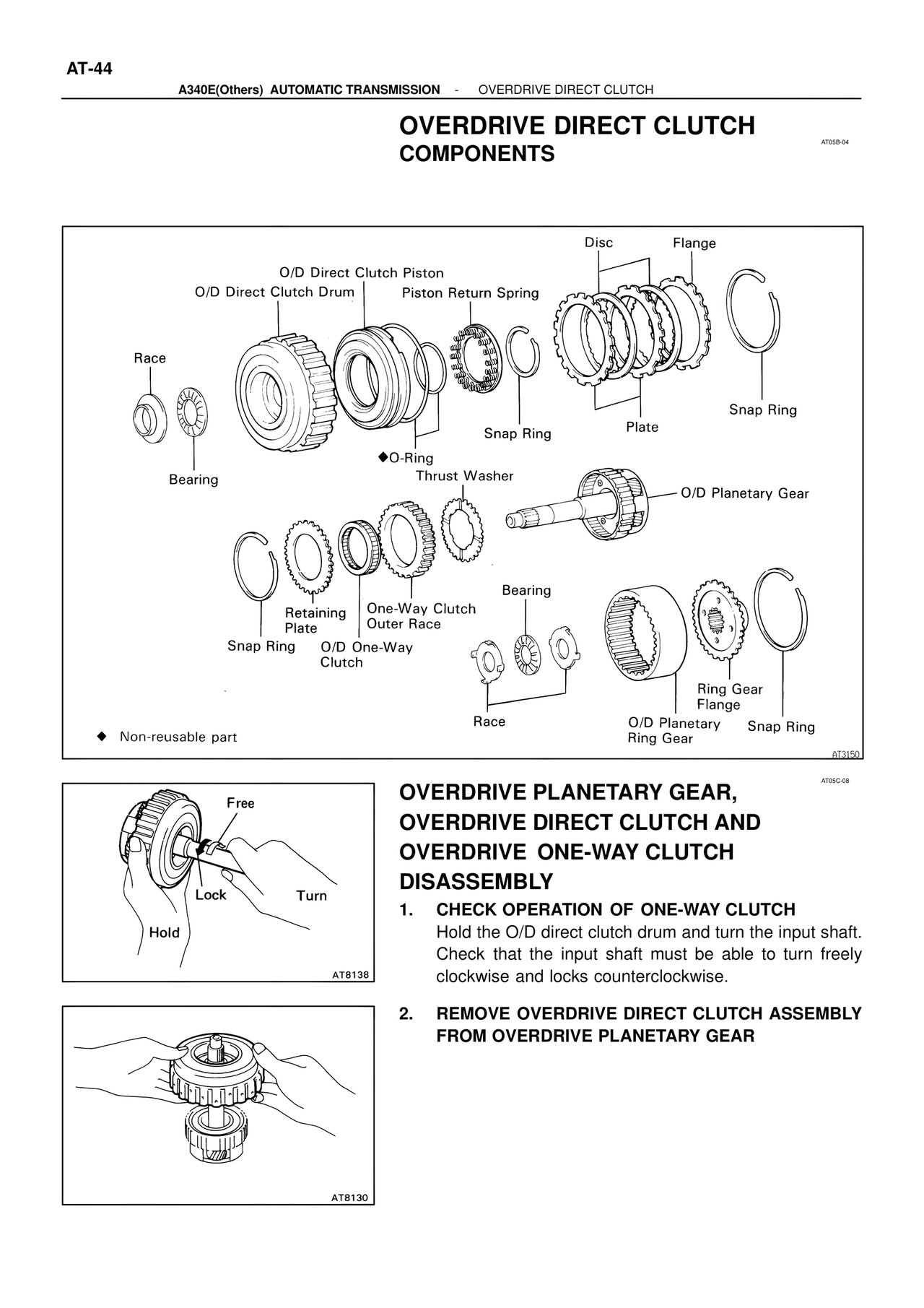

OVERDRIVE DIRECT CLUTCH COMPONENTS
AT05B-04
Disc Flange
O/D Direct Clutch Piston
O/D Direct Clutch Drum Piston Return Spring
Race
Snap Ring
Snap Ring
Plate
Bearing
♦O-Ring
Thrust Washer
O/D Planetary Gear
Retaining
Plate One-Way Clutch
Outer Race
Snap Ring O/D One-Way
Clutch
Bearing
Ring Gear
Flange
Race O/D Planetary
Ring Gear Snap Ring
♦ Non-reusable part
AT3150
AT05C-08
Free
Lock Turn
Hold
AT8138
OVERDRIVE PLANETARY GEAR,
OVERDRIVE DIRECT CLUTCH AND
OVERDRIVE ONE-WAY CLUTCH
DISASSEMBLY
1. CHECK OPERATION OF ONE-WAY CLUTCH
Hold the O/D direct clutch drum and turn the input shaft.
Check that the input shaft must be able to turn freely
clockwise and locks counterclockwise.
2. REMOVE OVERDRIVE DIRECT CLUTCH ASSEMBLY
FROM OVERDRIVE PLANETARY GEAR
AT8130
