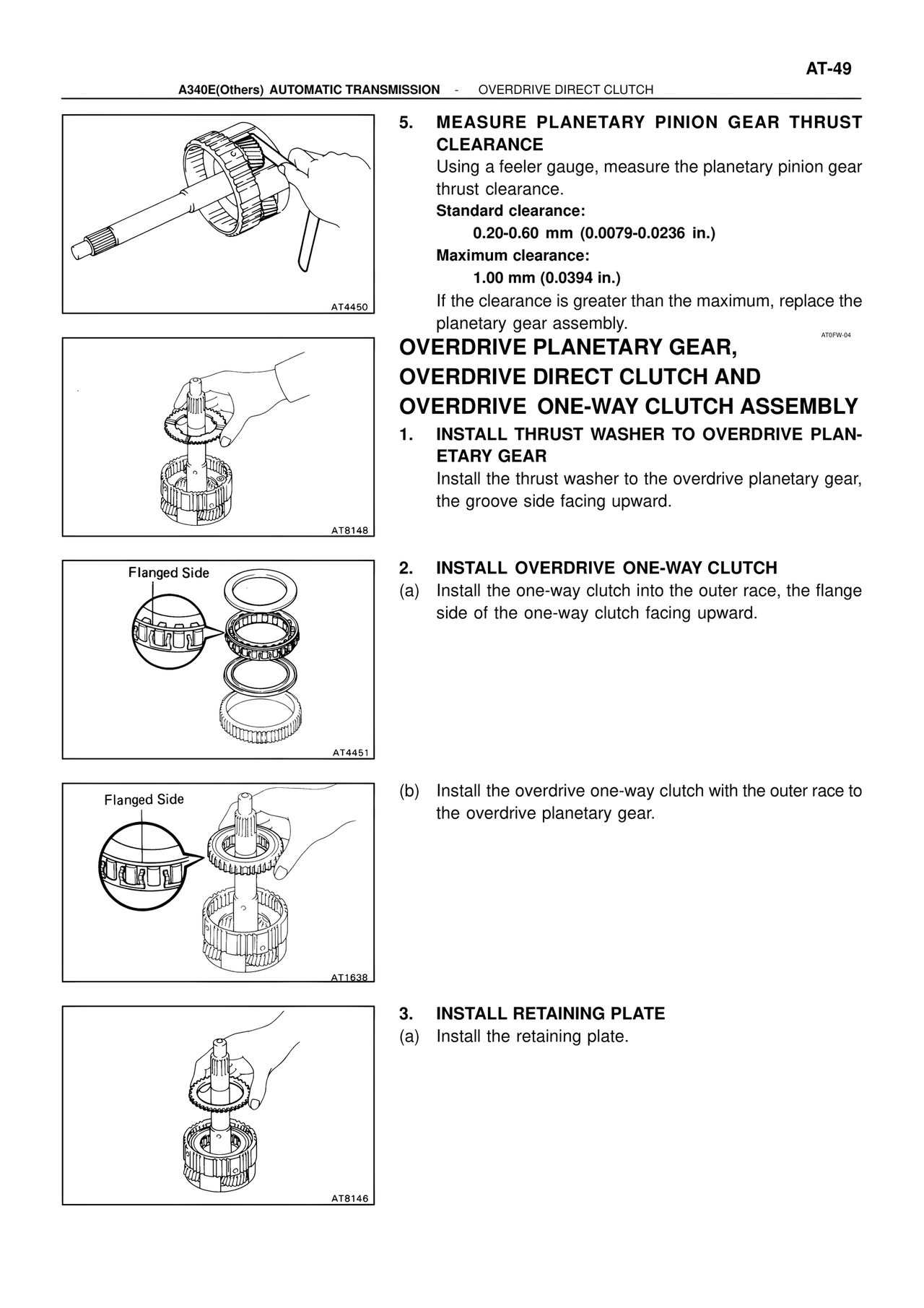

AT-49
A340E(Others) AUTOMATIC TRANSMISSION - OVERDRIVE DIRECT CLUTCH
5. MEASURE PLANETARY PINION GEAR THRUST CLEARANCE
Using a feeler gauge, measure the planetary pinion gear thrust clearance.
Standard clearance:
0.20-0.60 mm (0.0079-0.0236 in.)
Maximum clearance:
1.00 mm (0.0394 in.)
If the clearance is greater than the maximum, replace the planetary gear assembly.
AT4450
AT8148
AT0FW-04
OVERDRIVE PLANETARY GEAR,
OVERDRIVE DIRECT CLUTCH AND
OVERDRIVE ONE-WAY CLUTCH ASSEMBLY
1. INSTALL THRUST WASHER TO OVERDRIVE PLANETARY GEAR
Install the thrust washer to the overdrive planetary gear, the groove side facing upward.
2. INSTALL OVERDRIVE ONE-WAY CLUTCH
(a) Install the one-way clutch into the outer race, the flange side of the one-way clutch facing upward.
Flanged Side
AT4451
Flanged Side
(b) Install the overdrive one-way clutch with the outer race to the overdrive planetary gear.
AT1638
3. INSTALL RETAINING PLATE
(a) Install the retaining plate.
AT8146
