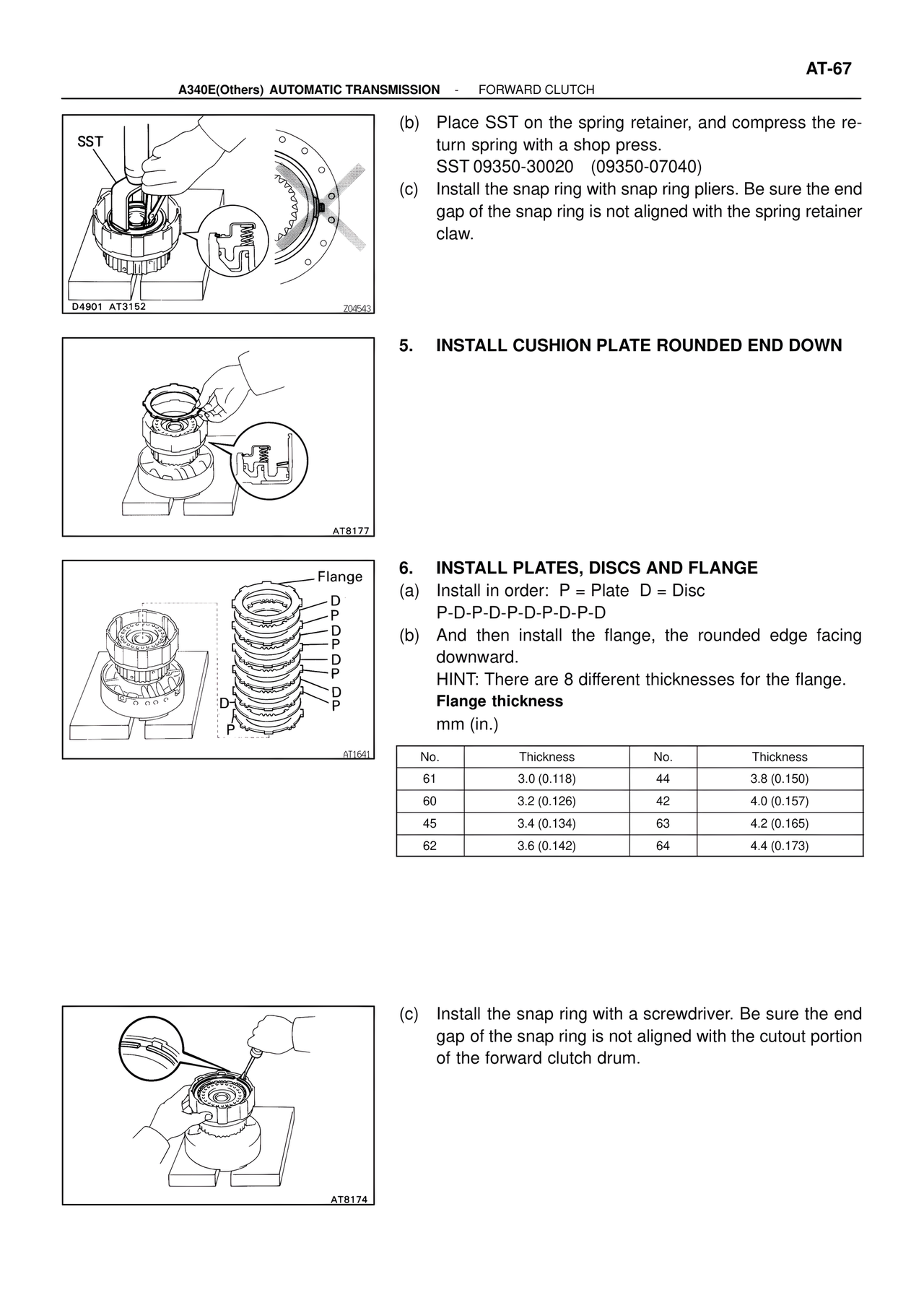

AT-67
A340E(Others) AUTOMATIC TRANSMISSION - FORWARD CLUTCH
SST
D4901 AT3152
Z04543
(b) Place SST on the spring retainer, and compress the return spring with a shop press.
SST 09350-30020 (09350-07040)
(c) Install the snap ring with snap ring pliers. Be sure the end gap of the snap ring is not aligned with the spring retainer claw.
AT8177
5. INSTALL CUSHION PLATE ROUNDED END DOWN
Flange
D
P
D
D
P
D
P
D
P
D
P
AT1641
6. INSTALL PLATES, DISCS AND FLANGE
(a) Install in order: P = Plate D = Disc
P-D-P-D-P-D-P-D-P-D
(b) And then install the flange, the rounded edge facing downward.
HINT: There are 8 different thicknesses for the flange.
Flange thickness
mm (in.)
No. Thickness No. Thickness
61 3.0 (0.118) 44 3.8 (0.150)
60 3.2 (0.126) 42 4.0 (0.157)
45 3.4 (0.134) 63 4.2 (0.165)
62 3.6 (0.142) 64 4.4 (0.173)
AT8174
(c) Install the snap ring with a screwdriver. Be sure the end gap of the snap ring is not aligned with the cutout portion of the forward clutch drum.
