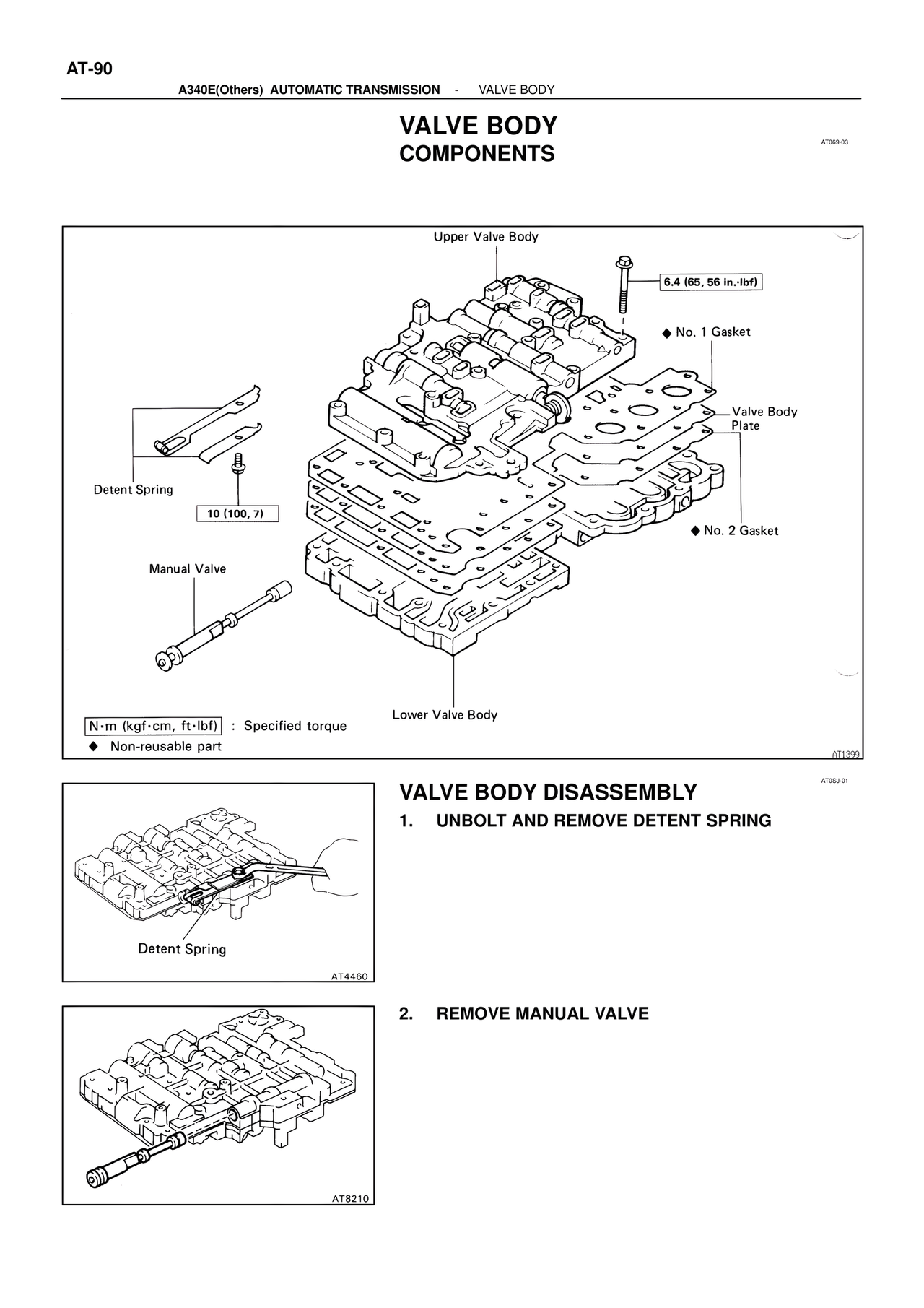

AT-90 A340E(Others) AUTOMATIC TRANSMISSION - VALVE BODY VALVE BODY COMPONENTS AT069-03 Upper Valve Body 6.4 (65, 56 in.·lbf) ◆ No. 1 Gasket Valve Body Plate Detent Spring 10 (100, 7) ◆ No. 2 Gasket Manual Valve Lower Valve Body N·m (kgf·cm, ft·lbf) : Specified torque ◆ Non-reusable part AT1399 AT0SJ-01 VALVE BODY DISASSEMBLY 1. UNBOLT AND REMOVE DETENT SPRING Detent Spring AT4460 2. REMOVE MANUAL VALVE AT8210
