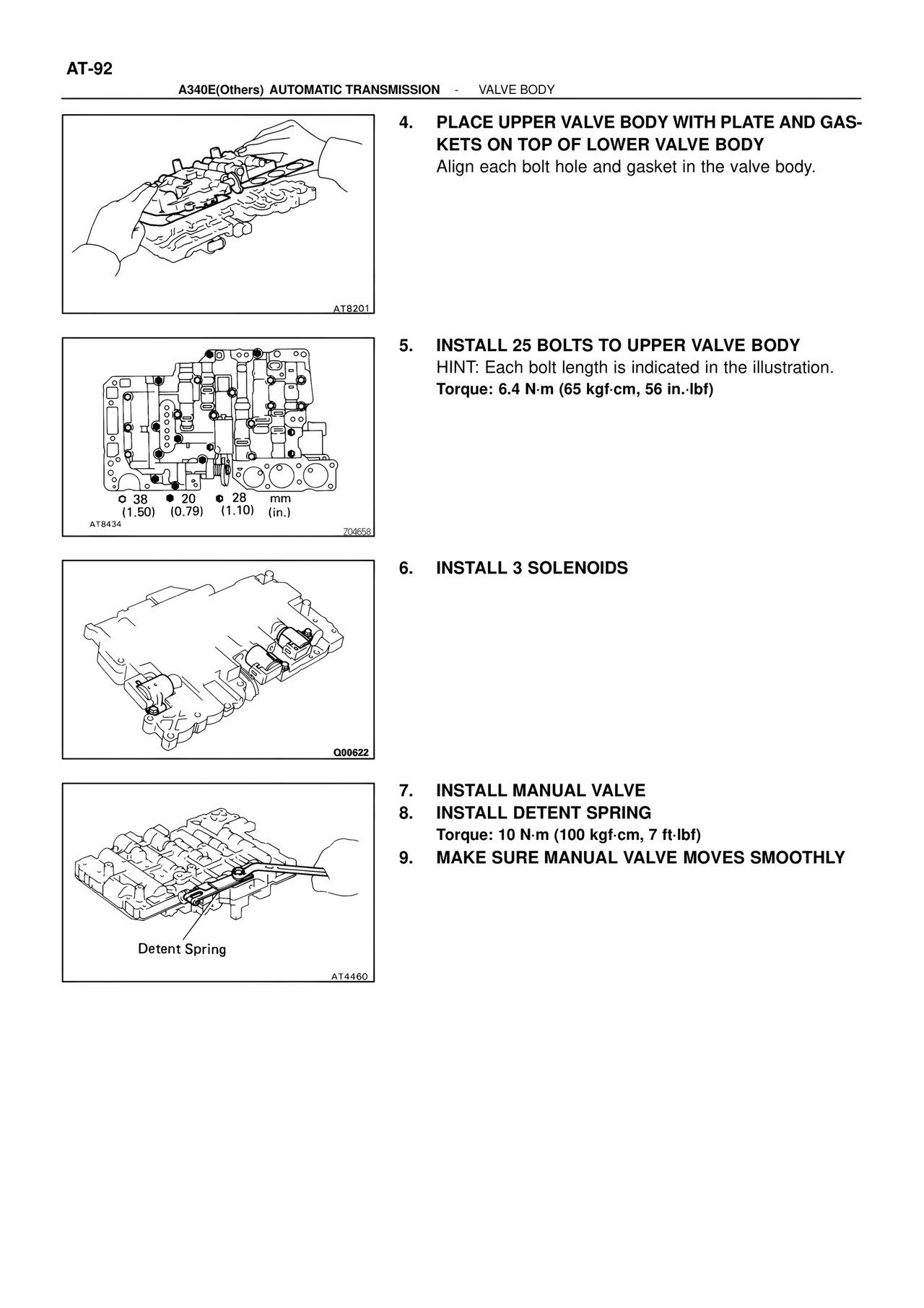

AT-92 A340E(Others) AUTOMATIC TRANSMISSION - VALVE BODY 4. PLACE UPPER VALVE BODY WITH PLATE AND GAS- KETS ON TOP OF LOWER VALVE BODY Align each bolt hole and gasket in the valve body. AT8201 5. INSTALL 25 BOLTS TO UPPER VALVE BODY HINT: Each bolt length is indicated in the illustration. Torque: 6.4 N·m (65 kgf·cm, 56 in.·lbf) o 38 • 20 • 28 mm (1.50) (0.79) (1.10) (in.) AT8434 Z04558 6. INSTALL 3 SOLENOIDS Q00622 7. INSTALL MANUAL VALVE 8. INSTALL DETENT SPRING Torque: 10 N·m (100 kgf·cm, 7 ft·lbf) 9. MAKE SURE MANUAL VALVE MOVES SMOOTHLY Detent Spring AT4460
