AT-94
A340E(Others) AUTOMATIC TRANSMISSION - UPPER VALVE BODY
AT06D-04

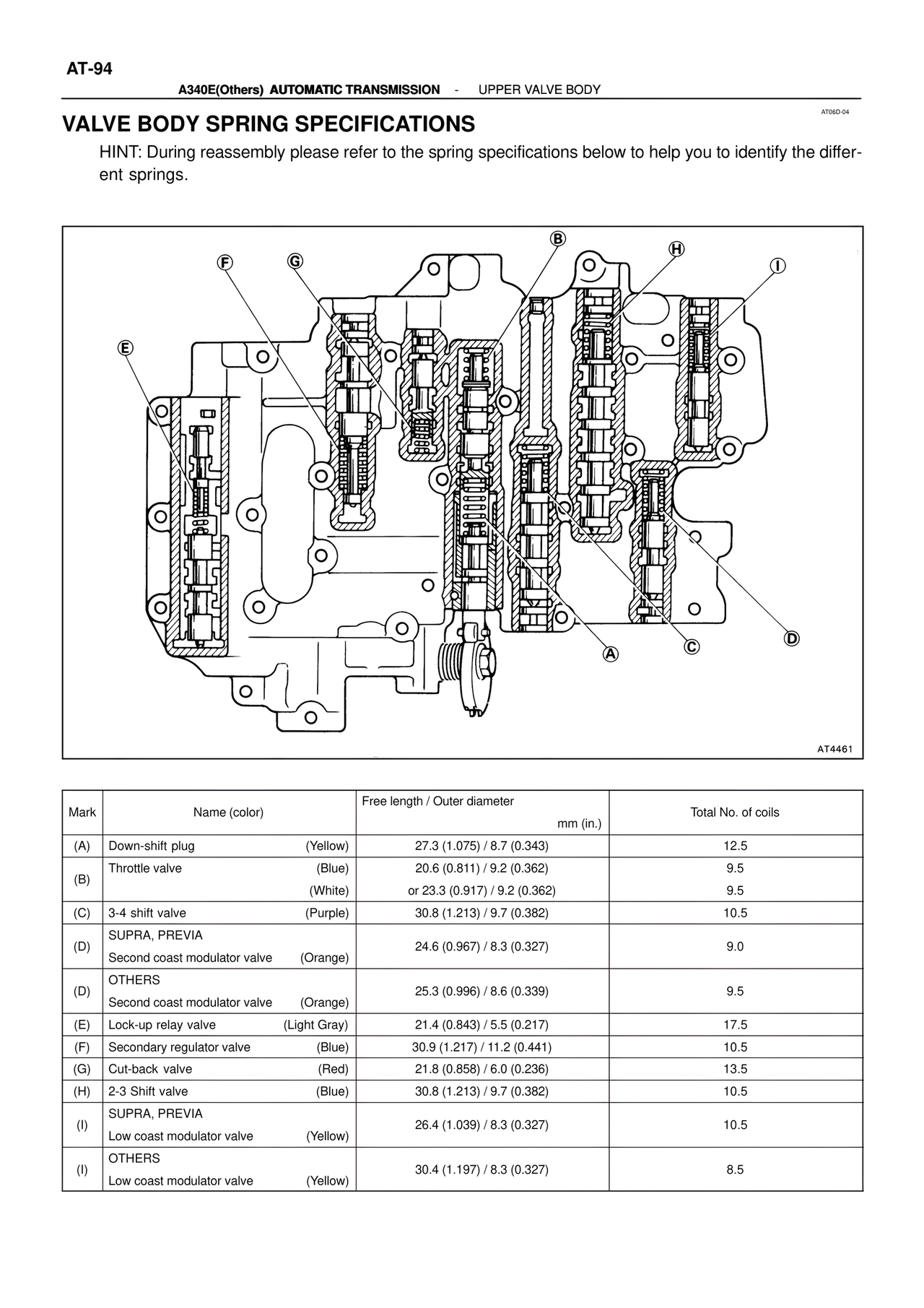

VALVE BODY SPRING SPECIFICATIONS
HINT: During reassembly please refer to the spring specifications below to help you to identify the different springs.
AT4461
Mark | Name (color) | Free length / Outer diameter mm (in.) | Total No. of coils
(A) | Down-shift plug (Yellow) | 27.3 (1.075) / 8.7 (0.343) | 12.5
(B) | Throttle valve (Blue) | 20.6 (0.811) / 9.2 (0.362) | 9.5
(B) | (White) | or 23.3 (0.917) / 9.2 (0.362) | 9.5
(C) | 3-4 shift valve (Purple) | 30.8 (1.213) / 9.7 (0.382) | 10.5
(D) | SUPRA, PREVIA
Second coast modulator valve (Orange) | 24.6 (0.967) / 8.3 (0.327) | 9.0
(D) | OTHERS
Second coast modulator valve (Orange) | 25.3 (0.996) / 8.6 (0.339) | 9.5
(E) | Lock-up relay valve (Light Gray) | 21.4 (0.843) / 5.5 (0.217) | 17.5
(F) | Secondary regulator valve (Blue) | 30.9 (1.217) / 11.2 (0.441) | 10.5
(G) | Cut-back valve (Red) | 21.8 (0.858) / 6.0 (0.236) | 13.5
(H) | 2-3 Shift valve (Blue) | 30.8 (1.213) / 9.7 (0.382) | 10.5
(I) | SUPRA, PREVIA
Low coast modulator valve (Yellow) | 26.4 (1.039) / 8.3 (0.327) | 10.5
(I) | OTHERS
Low coast modulator valve (Yellow) | 30.4 (1.197) / 8.3 (0.327) | 8.5
