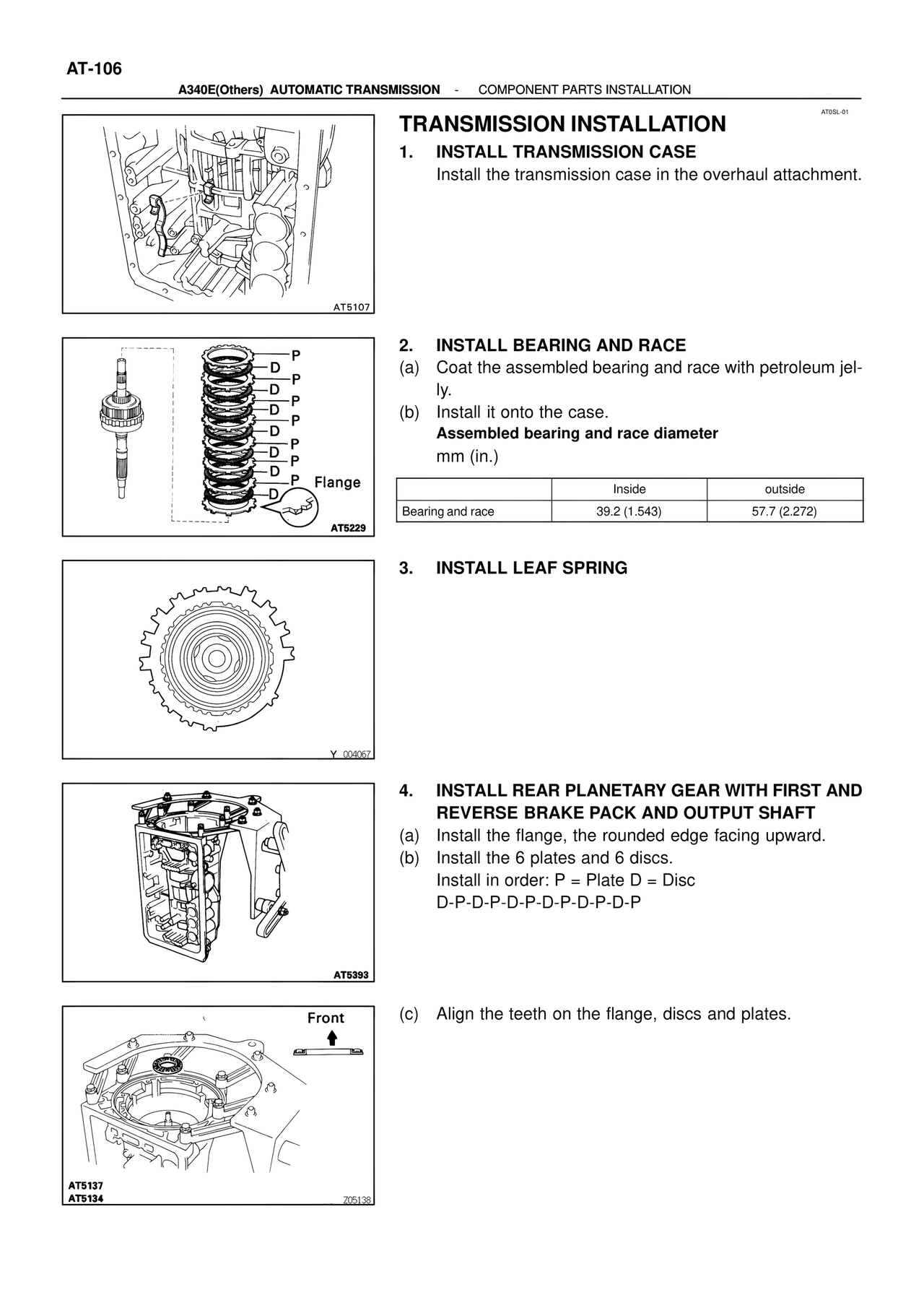

AT-106 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION AT0SL-01 TRANSMISSION INSTALLATION 1. INSTALL TRANSMISSION CASE Install the transmission case in the overhaul attachment. AT5107 P D P D P D P D P D P D P D Flange AT5229 2. INSTALL BEARING AND RACE (a) Coat the assembled bearing and race with petroleum jelly. (b) Install it onto the case. Assembled bearing and race diameter mm (in.) Inside outside Bearing and race 39.2 (1.543) 57.7 (2.272) 3. INSTALL LEAF SPRING Y 004067 AT5393 4. INSTALL REAR PLANETARY GEAR WITH FIRST AND REVERSE BRAKE PACK AND OUTPUT SHAFT (a) Install the flange, the rounded edge facing upward. (b) Install the 6 plates and 6 discs. Install in order: P = Plate D = Disc D-P-D-P-D-P-D-P-D-P-D-P Front (c) Align the teeth on the flange, discs and plates. AT5137 AT5134 Z05138
