AT-1 11

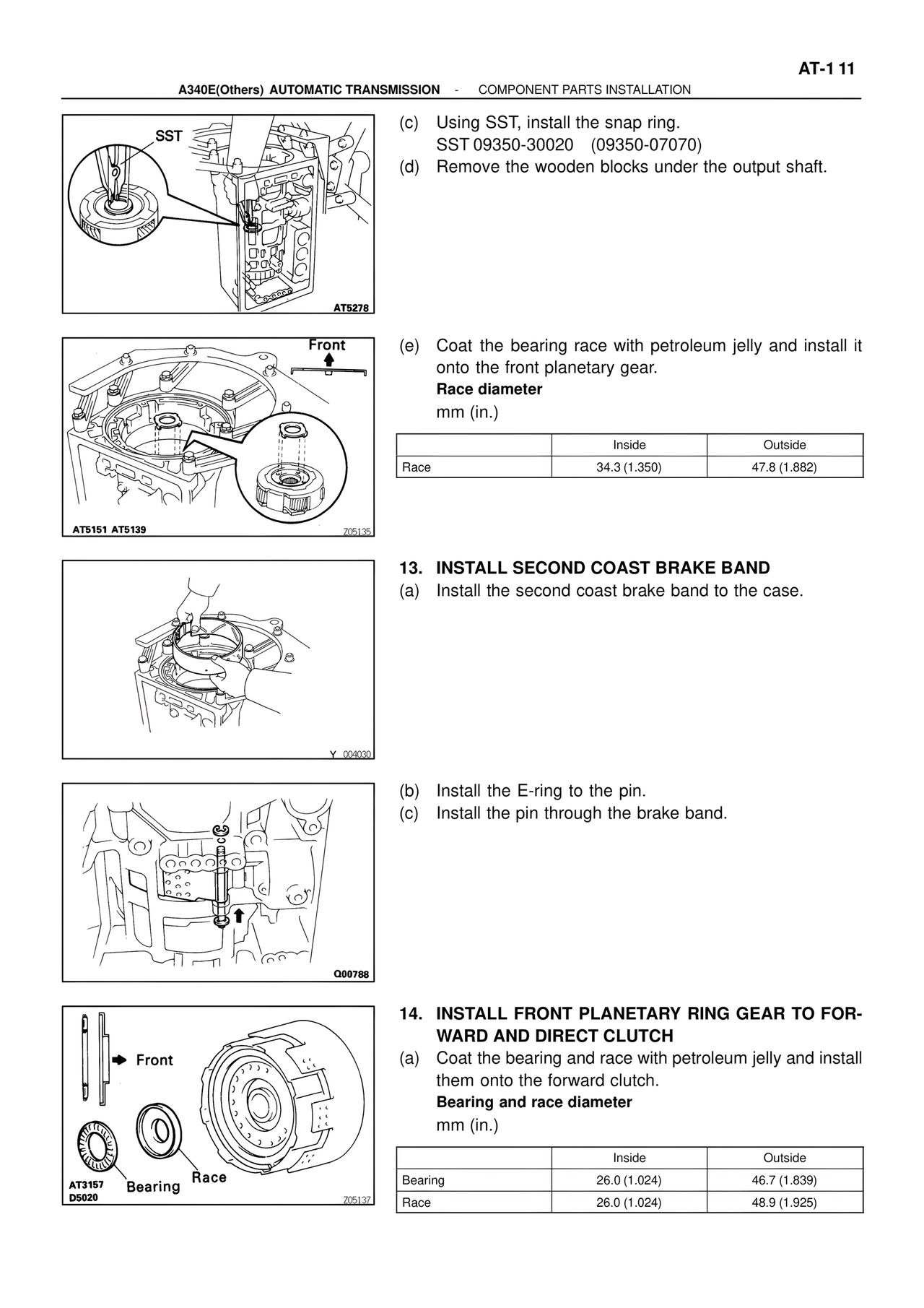

A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
SST
AT5278
(c) Using SST, install the snap ring.
SST 09350-30020 (09350-07070)
(d) Remove the wooden blocks under the output shaft.
Front
AT5151 AT5139
Z05125
(e) Coat the bearing race with petroleum jelly and install it
onto the front planetary gear.
Race diameter
mm (in.)
Inside Outside
Race 34.3 (1.350) 47.8 (1.882)
13. INSTALL SECOND COAST BRAKE BAND
(a) Install the second coast brake band to the case.
Y_004030
(b) Install the E-ring to the pin.
(c) Install the pin through the brake band.
Q00788
14. INSTALL FRONT PLANETARY RING GEAR TO FOR-
WARD AND DIRECT CLUTCH
(a) Coat the bearing and race with petroleum jelly and install
them onto the forward clutch.
Bearing and race diameter
mm (in.)
Inside Outside
Bearing 26.0 (1.024) 46.7 (1.839)
Race 26.0 (1.024) 48.9 (1.925)
Front
AT3157
D5020 Bearing Race
Z05137
