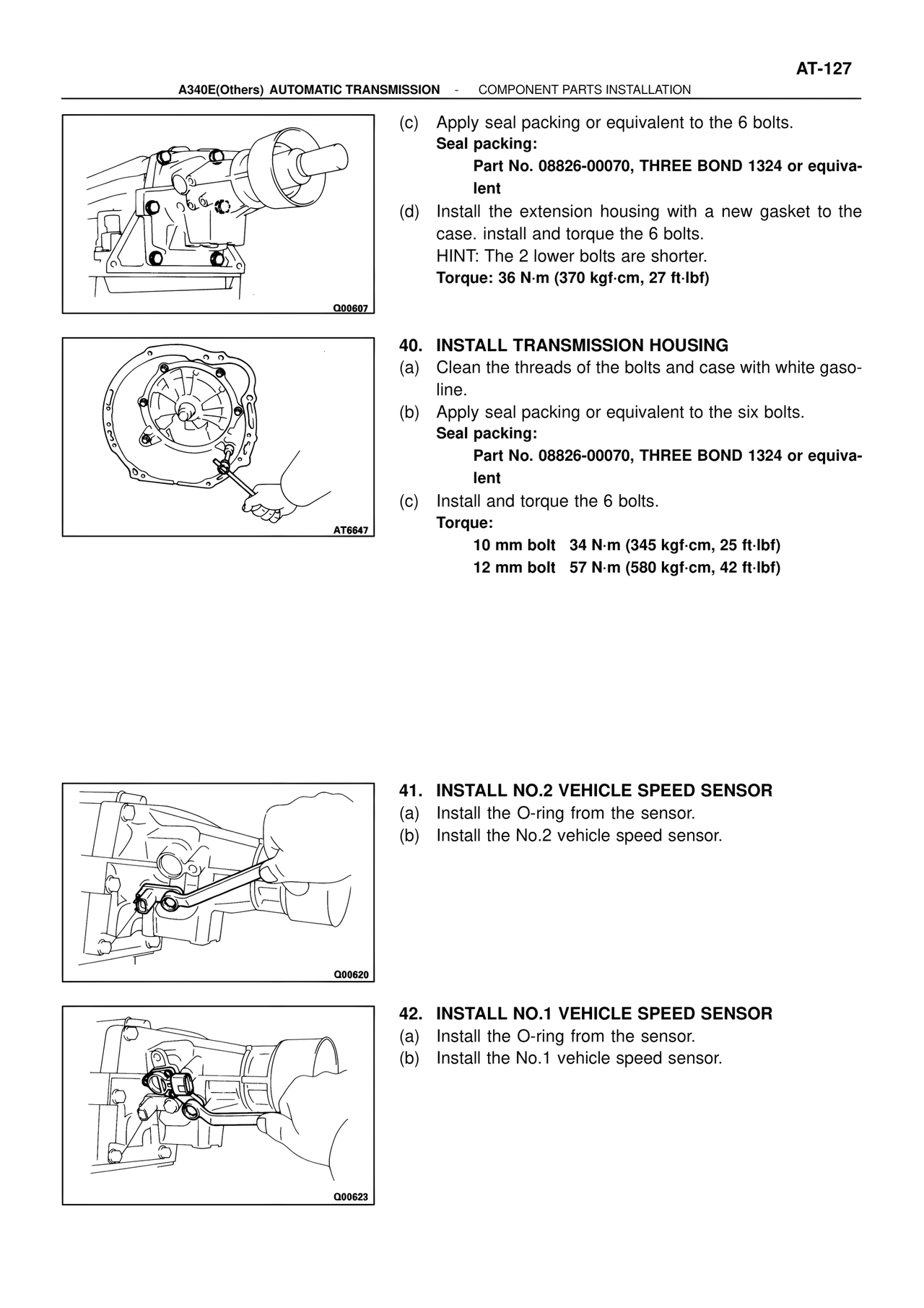

AT-127
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
(c) Apply seal packing or equivalent to the 6 bolts.
Seal packing:
Part No. 08826-00070, THREE BOND 1324 or equivalent
(d) Install the extension housing with a new gasket to the case. install and torque the 6 bolts.
HINT: The 2 lower bolts are shorter.
Torque: 36 N·m (370 kgf·cm, 27 ft·lbf)
Q00607
40. INSTALL TRANSMISSION HOUSING
(a) Clean the threads of the bolts and case with white gasoline.
(b) Apply seal packing or equivalent to the six bolts.
Seal packing:
Part No. 08826-00070, THREE BOND 1324 or equivalent
(c) Install and torque the 6 bolts.
Torque:
10 mm bolt 34 N·m (345 kgf·cm, 25 ft·lbf)
12 mm bolt 57 N·m (580 kgf·cm, 42 ft·lbf)
AT6647
41. INSTALL NO.2 VEHICLE SPEED SENSOR
(a) Install the O-ring from the sensor.
(b) Install the No.2 vehicle speed sensor.
Q00620
42. INSTALL NO.1 VEHICLE SPEED SENSOR
(a) Install the O-ring from the sensor.
(b) Install the No.1 vehicle speed sensor.
Q00623
