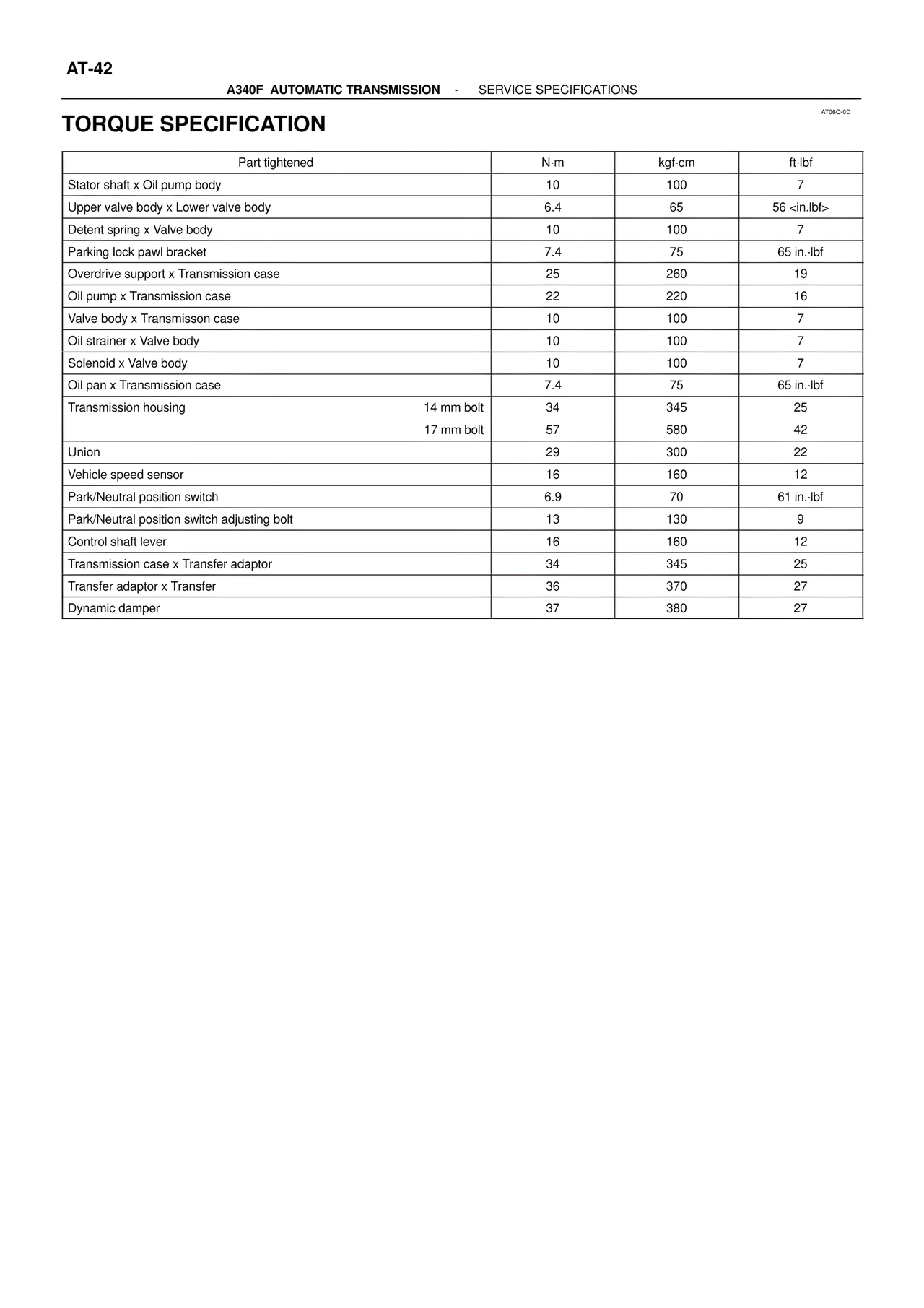

AT-42 A340F AUTOMATIC TRANSMISSION - SERVICE SPECIFICATIONS AT06Q-0D TORQUE SPECIFICATION Part tightened | N·m | kgf·cm | ft·lbf Stator shaft x Oil pump body | 10 | 100 | 7 Upper valve body x Lower valve body | 6.4 | 65 | 56 <in.lbf> Detent spring x Valve body | 10 | 100 | 7 Parking lock pawl bracket | 7.4 | 75 | 65 in.·lbf Overdrive support x Transmission case | 25 | 260 | 19 Oil pump x Transmission case | 22 | 220 | 16 Valve body x Transmisson case | 10 | 100 | 7 Oil strainer x Valve body | 10 | 100 | 7 Solenoid x Valve body | 10 | 100 | 7 Oil pan x Transmission case | 7.4 | 75 | 65 in.·lbf Transmission housing | 14 mm bolt | 34 | 345 | 25 | 17 mm bolt | 57 | 580 | 42 Union | 29 | 300 | 22 Vehicle speed sensor | 16 | 160 | 12 Park/Neutral position switch | 6.9 | 70 | 61 in.·lbf Park/Neutral position switch adjusting bolt | 13 | 130 | 9 Control shaft lever | 16 | 160 | 12 Transmission case x Transfer adaptor | 34 | 345 | 25 Transfer adaptor x Transfer | 36 | 370 | 27 Dynamic damper | 37 | 380 | 27
