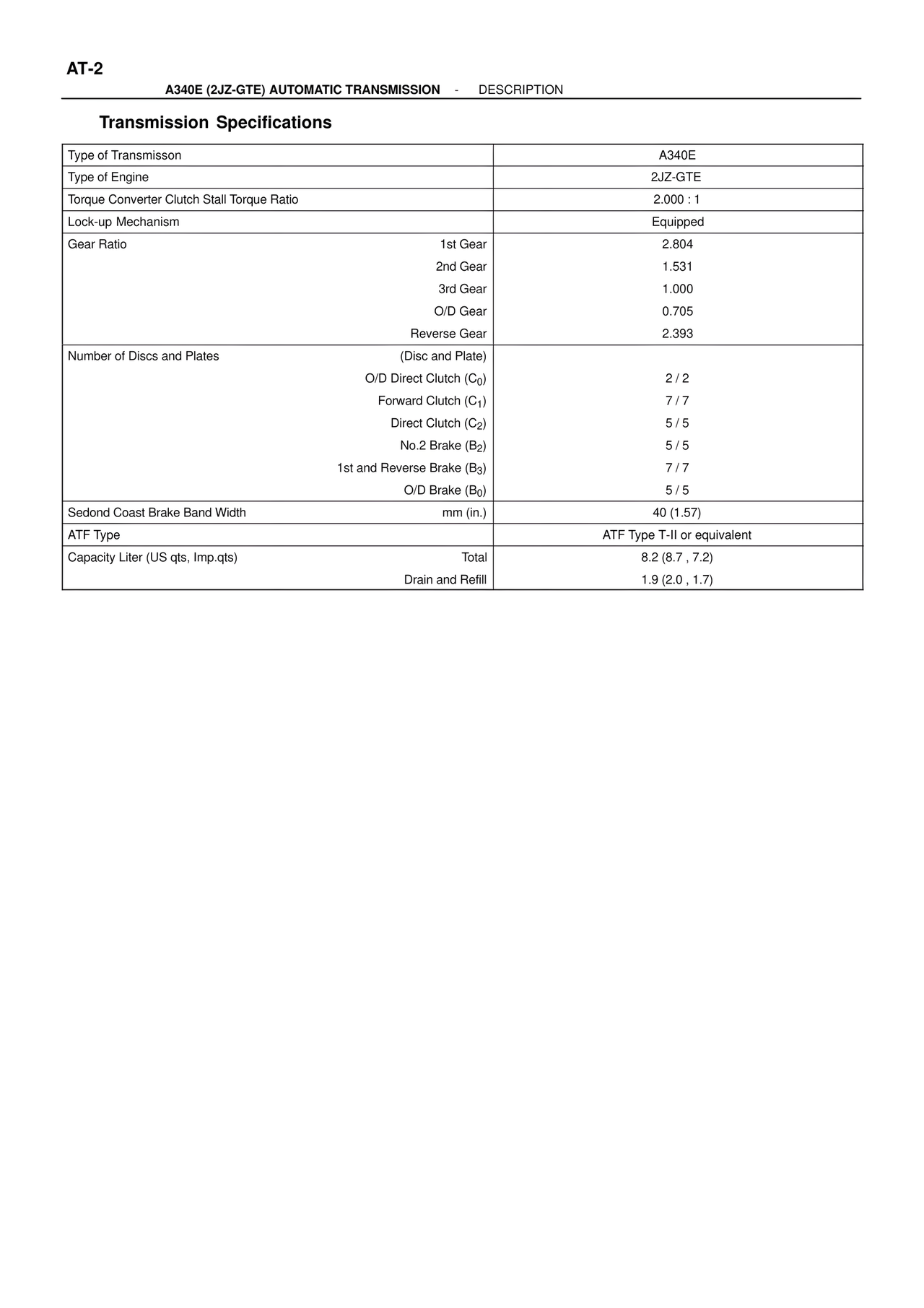

AT-2 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - DESCRIPTION Transmission Specifications Type of Transmisson A340E Type of Engine 2JZ-GTE Torque Converter Clutch Stall Torque Ratio 2.000 : 1 Lock-up Mechanism Equipped Gear Ratio 1st Gear 2.804 2nd Gear 1.531 3rd Gear 1.000 O/D Gear 0.705 Reverse Gear 2.393 Number of Discs and Plates (Disc and Plate) O/D Direct Clutch (C0) 2 / 2 Forward Clutch (C1) 7 / 7 Direct Clutch (C2) 5 / 5 No.2 Brake (B2) 5 / 5 1st and Reverse Brake (B3) 7 / 7 O/D Brake (B0) 5 / 5 Sedond Coast Brake Band Width mm (in.) 40 (1.57) ATF Type ATF Type T-II or equivalent Capacity Liter (US qts, Imp.qts) Total 8.2 (8.7 , 7.2) Drain and Refill 1.9 (2.0 , 1.7)
