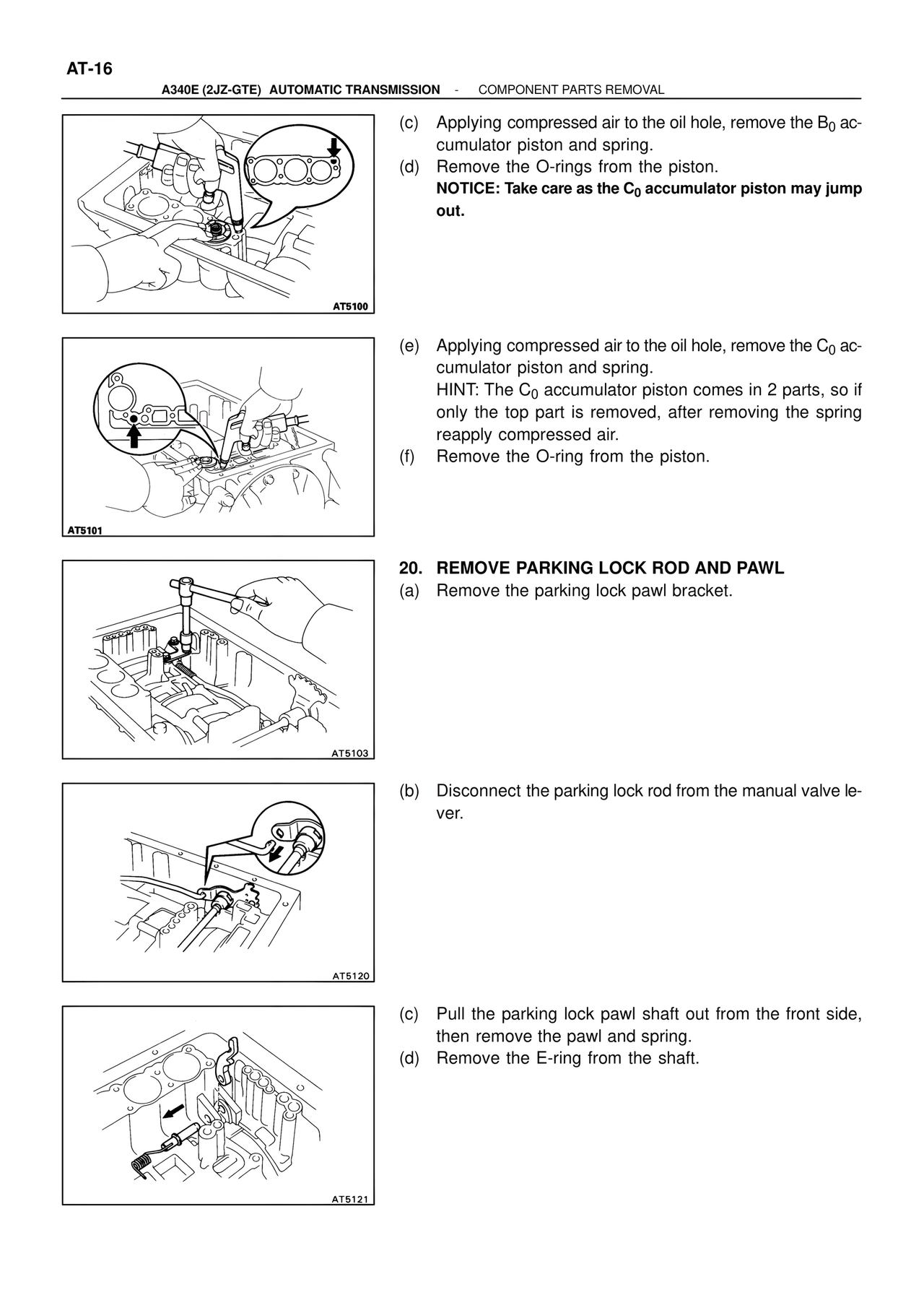

AT-16
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
(c) Applying compressed air to the oil hole, remove the B0 accumulator piston and spring.
(d) Remove the O-rings from the piston.
NOTICE: Take care as the C0 accumulator piston may jump out.
AT5100
(e) Applying compressed air to the oil hole, remove the C0 accumulator piston and spring.
HINT: The C0 accumulator piston comes in 2 parts, so if only the top part is removed, after removing the spring reapply compressed air.
(f) Remove the O-ring from the piston.
AT5101
20. REMOVE PARKING LOCK ROD AND PAWL
(a) Remove the parking lock pawl bracket.
AT5103
(b) Disconnect the parking lock rod from the manual valve lever.
AT5120
(c) Pull the parking lock pawl shaft out from the front side, then remove the pawl and spring.
(d) Remove the E-ring from the shaft.
AT5121
