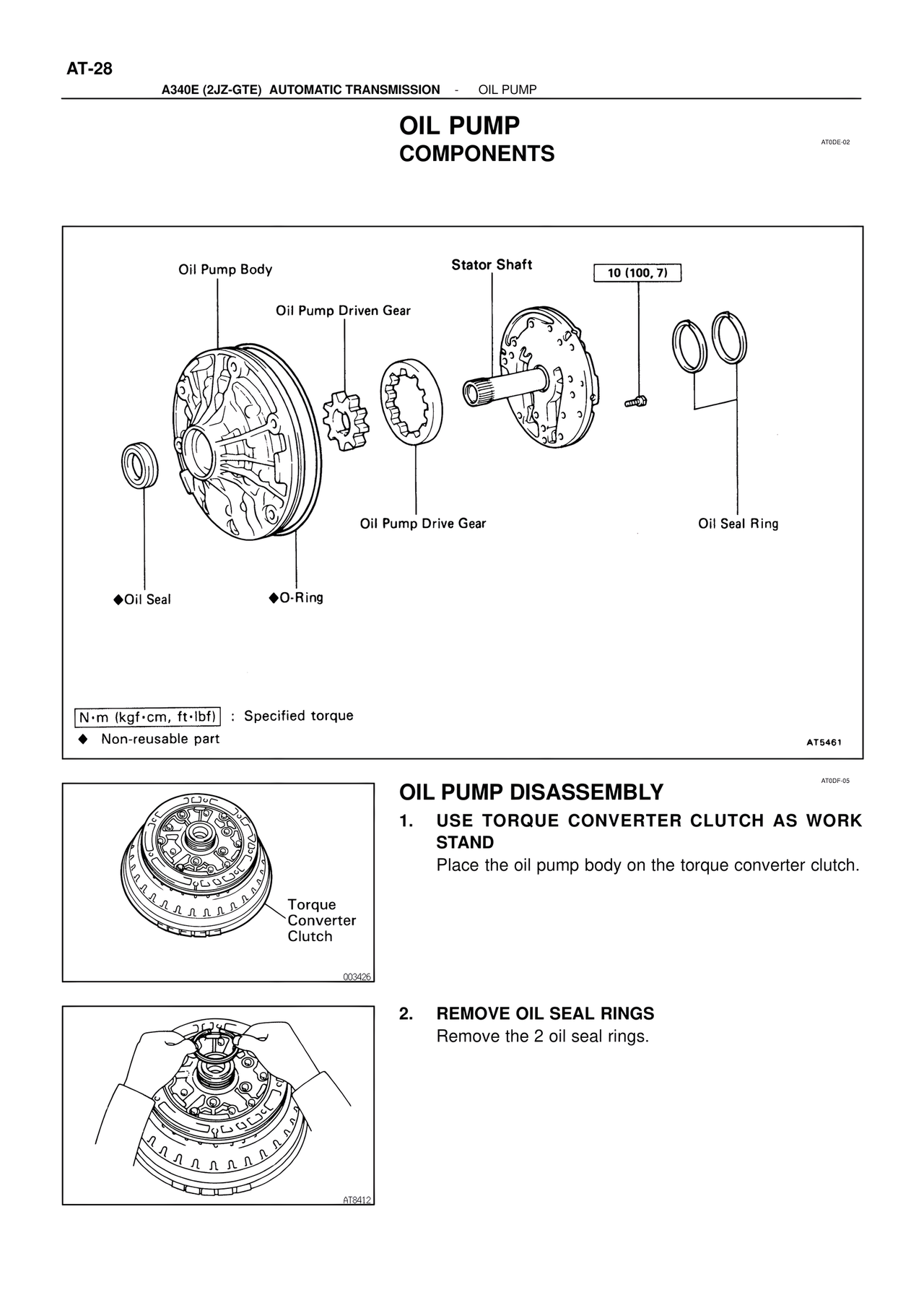

AT-28 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OIL PUMP OIL PUMP COMPONENTS AT0DE-02 Oil Pump Body Stator Shaft 10 (100, 7) Oil Pump Driven Gear Oil Pump Drive Gear Oil Seal Ring ◆Oil Seal ◆O-Ring N·m (kgf·cm, ft·lbf) : Specified torque ◆ Non-reusable part AT5461 AT0DF-05 OIL PUMP DISASSEMBLY 1. USE TORQUE CONVERTER CLUTCH AS WORK STAND Place the oil pump body on the torque converter clutch. Torque Converter Clutch 003426 2. REMOVE OIL SEAL RINGS Remove the 2 oil seal rings. AT8412
