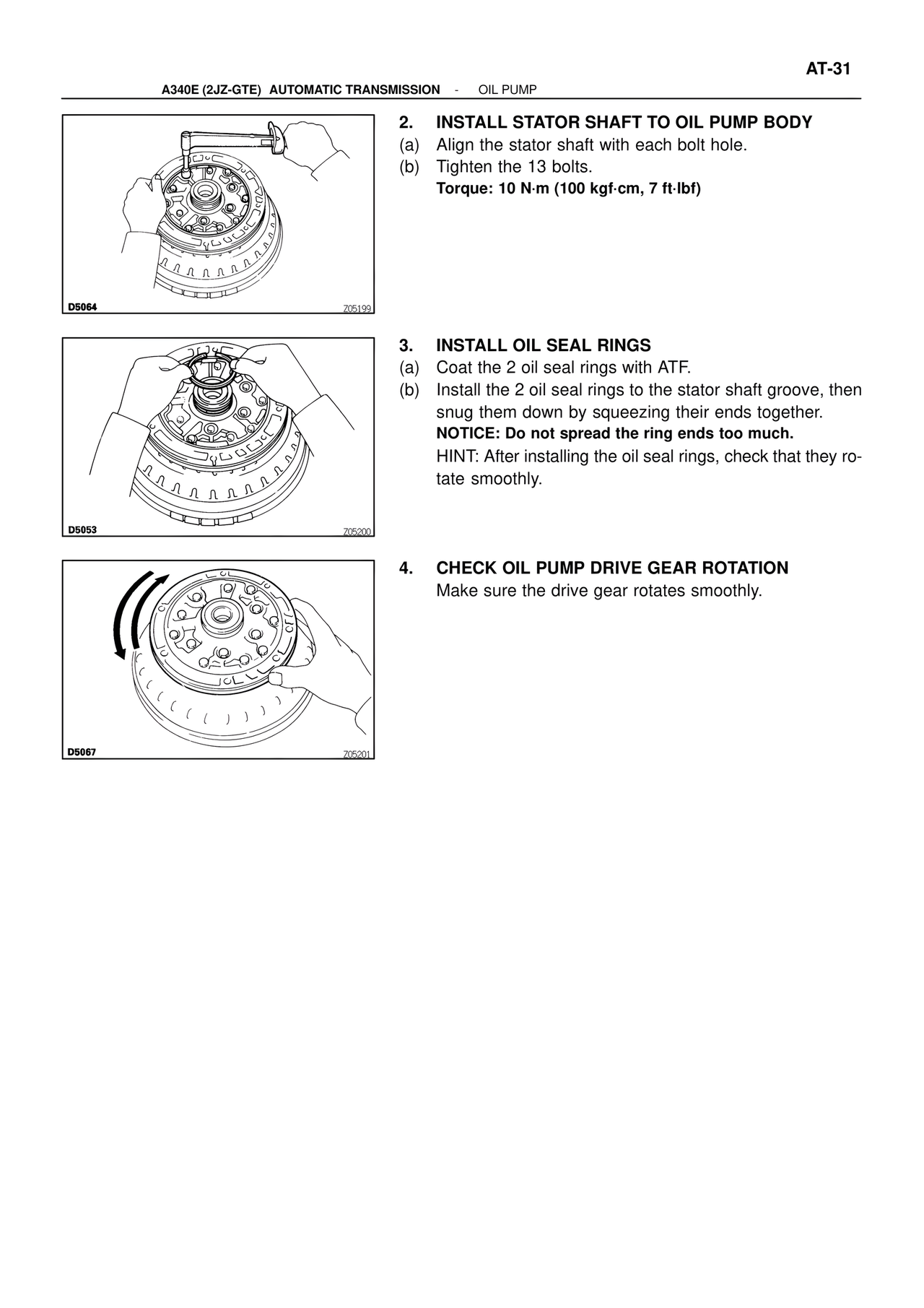

AT-31
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OIL PUMP
D5064 Z05199
2. INSTALL STATOR SHAFT TO OIL PUMP BODY
(a) Align the stator shaft with each bolt hole.
(b) Tighten the 13 bolts.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
D5053 Z05200
3. INSTALL OIL SEAL RINGS
(a) Coat the 2 oil seal rings with ATF.
(b) Install the 2 oil seal rings to the stator shaft groove, then
snug them down by squeezing their ends together.
NOTICE: Do not spread the ring ends too much.
HINT: After installing the oil seal rings, check that they ro-
tate smoothly.
D5067 Z05201
4. CHECK OIL PUMP DRIVE GEAR ROTATION
Make sure the drive gear rotates smoothly.
