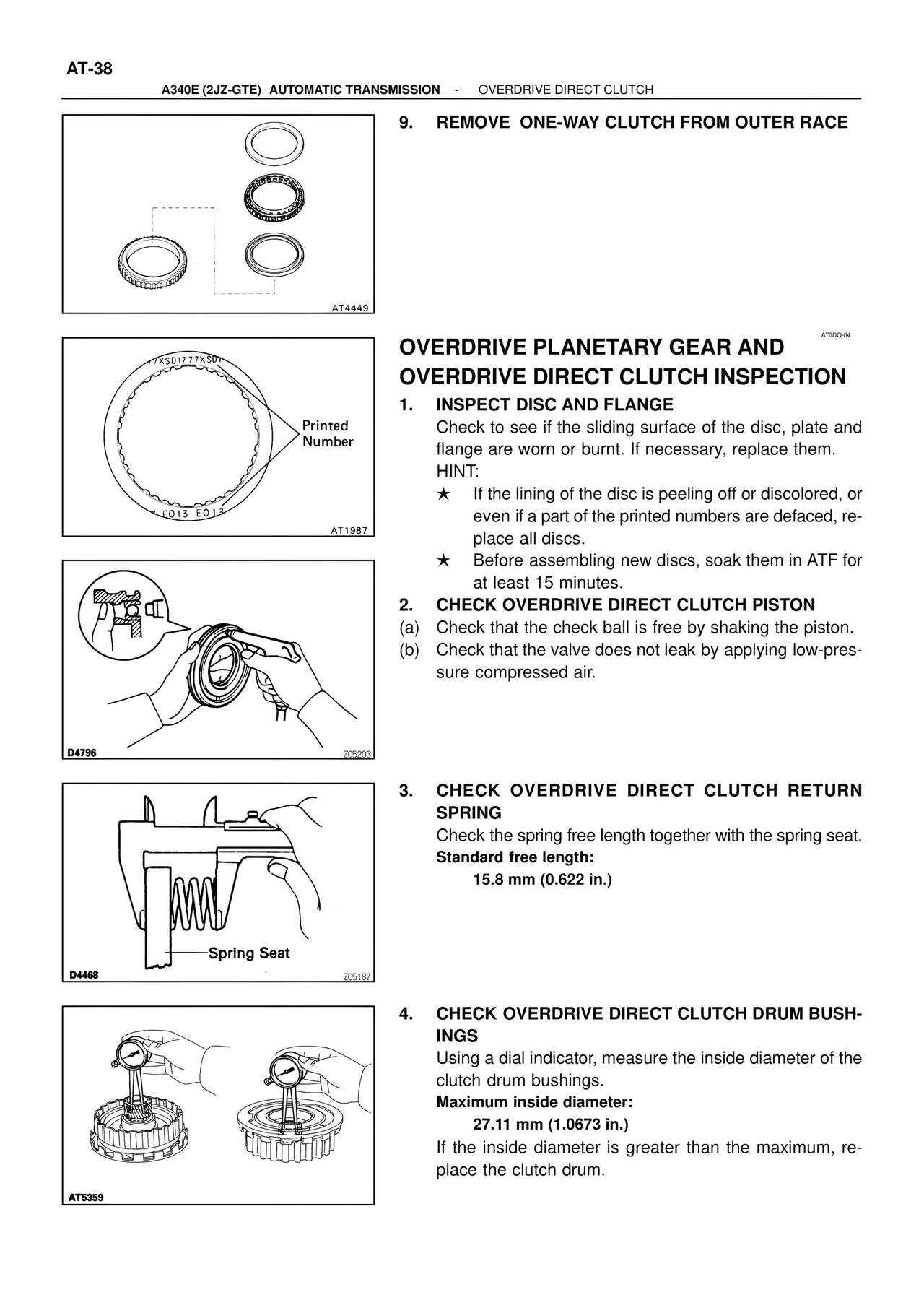

AT-38
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OVERDRIVE DIRECT CLUTCH
9. REMOVE ONE-WAY CLUTCH FROM OUTER RACE
AT4449
Printed
Number
AT1987
D4796
Z05203
Spring Seat
D4468
Z05187
AT5359
AT0DO-04
OVERDRIVE PLANETARY GEAR AND
OVERDRIVE DIRECT CLUTCH INSPECTION
1. INSPECT DISC AND FLANGE
Check to see if the sliding surface of the disc, plate and
flange are worn or burnt. If necessary, replace them.
HINT:
★ If the lining of the disc is peeling off or discolored, or
even if a part of the printed numbers are defaced, re-
place all discs.
★ Before assembling new discs, soak them in ATF for
at least 15 minutes.
2. CHECK OVERDRIVE DIRECT CLUTCH PISTON
(a) Check that the check ball is free by shaking the piston.
(b) Check that the valve does not leak by applying low-pres-
sure compressed air.
3. CHECK OVERDRIVE DIRECT CLUTCH RETURN
SPRING
Check the spring free length together with the spring seat.
Standard free length:
15.8 mm (0.622 in.)
4. CHECK OVERDRIVE DIRECT CLUTCH DRUM BUSH-
INGS
Using a dial indicator, measure the inside diameter of the
clutch drum bushings.
Maximum inside diameter:
27.11 mm (1.0673 in.)
If the inside diameter is greater than the maximum, re-
place the clutch drum.
