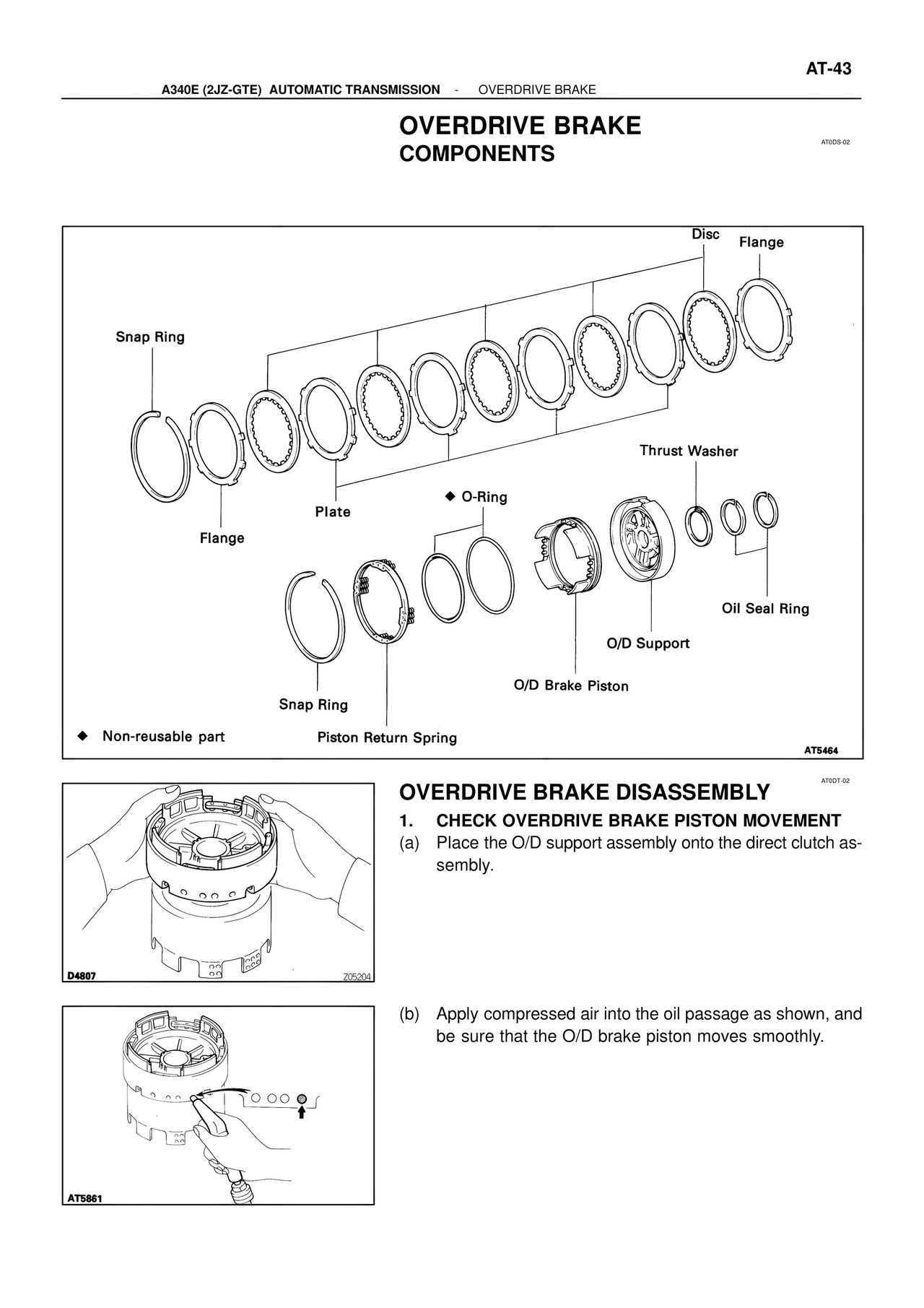

AT-43 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - OVERDRIVE BRAKE OVERDRIVE BRAKE COMPONENTS AT0DS-02 Disc Flange Snap Ring Thrust Washer ◆ O-Ring Plate Flange Oil Seal Ring O/D Support Snap Ring O/D Brake Piston ◆ Non-reusable part Piston Return Spring AT5464 AT0DT-02 OVERDRIVE BRAKE DISASSEMBLY 1. CHECK OVERDRIVE BRAKE PISTON MOVEMENT (a) Place the O/D support assembly onto the direct clutch assembly. D4807 705204 (b) Apply compressed air into the oil passage as shown, and be sure that the O/D brake piston moves smoothly. AT5861
