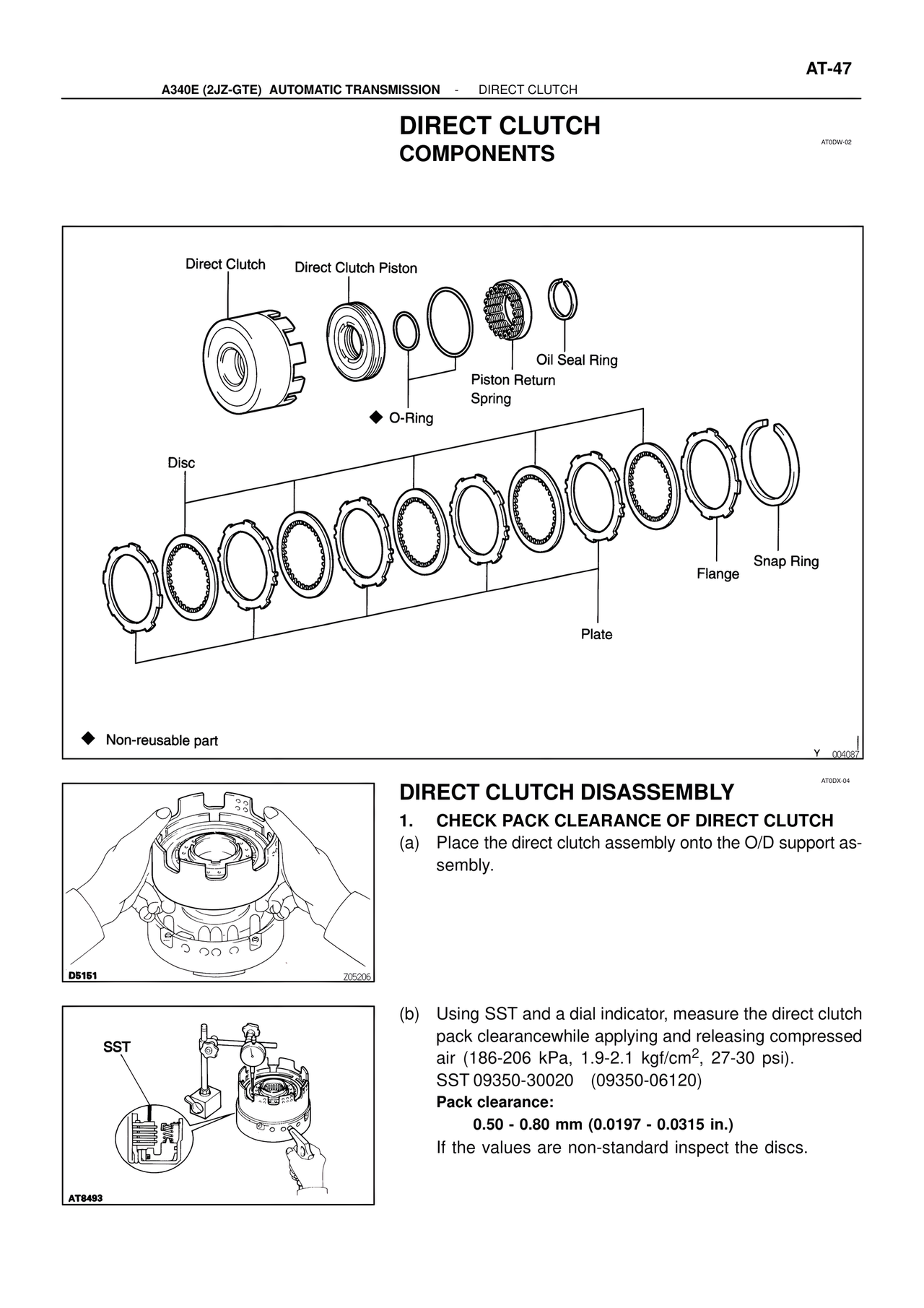

AT-47 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - DIRECT CLUTCH DIRECT CLUTCH COMPONENTS AT0DW-02 Direct Clutch Direct Clutch Piston Oil Seal Ring Piston Return Spring ◆ O-Ring Disc Flange Snap Ring Plate ◆ Non-reusable part Y 004087 AT0DX-04 DIRECT CLUTCH DISASSEMBLY 1. CHECK PACK CLEARANCE OF DIRECT CLUTCH (a) Place the direct clutch assembly onto the O/D support assembly. D5151 Z05206 (b) Using SST and a dial indicator, measure the direct clutch pack clearance while applying and releasing compressed air (186-206 kPa, 1.9-2.1 kgf/cm², 27-30 psi). SST 09350-30020 (09350-06120) Pack clearance: 0.50 - 0.80 mm (0.0197 - 0.0315 in.) If the values are non-standard inspect the discs. SST AT8493
