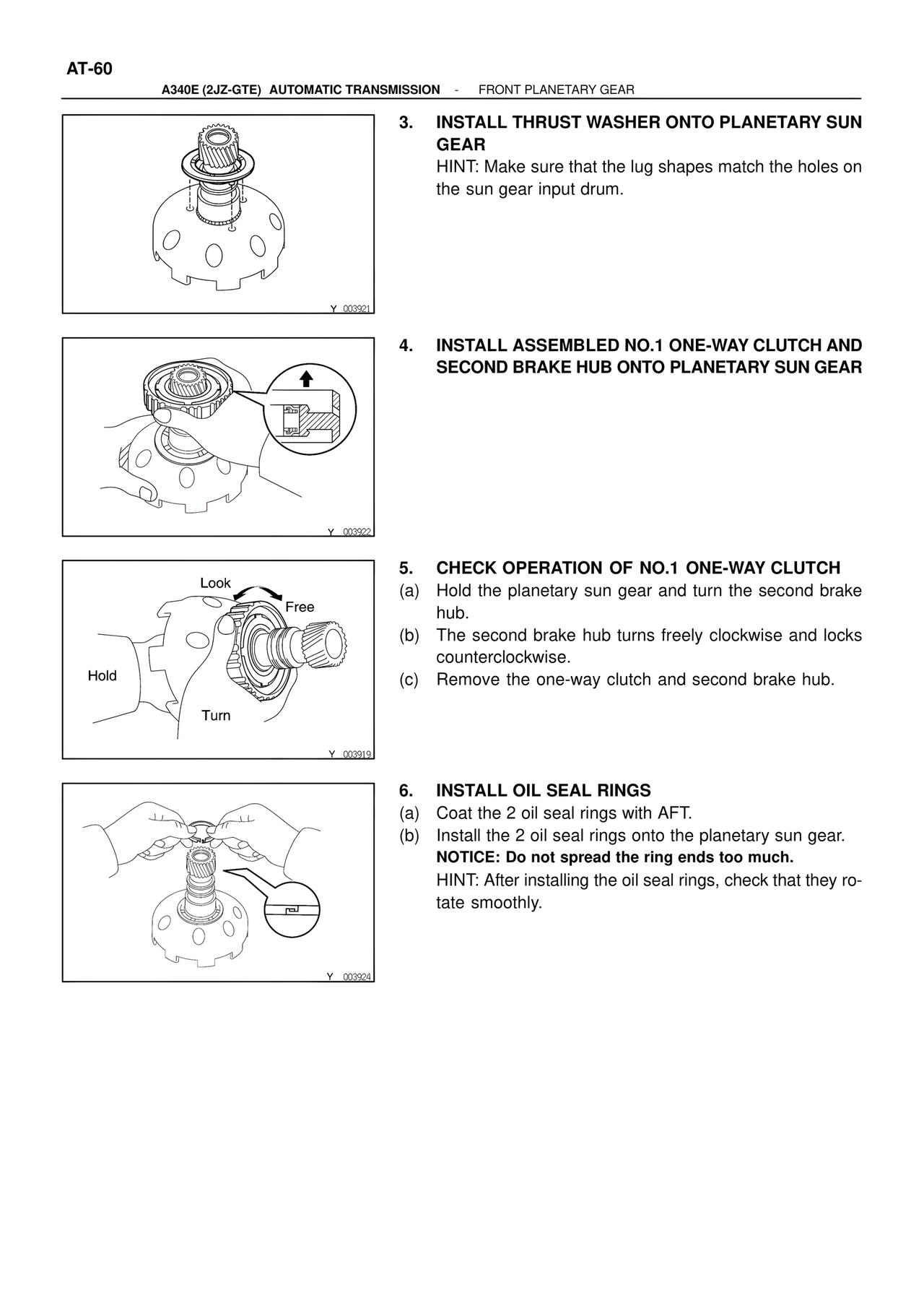

AT-60
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - FRONT PLANETARY GEAR
Y_003921
3. INSTALL THRUST WASHER ONTO PLANETARY SUN GEAR
HINT: Make sure that the lug shapes match the holes on the sun gear input drum.
Y_003922
4. INSTALL ASSEMBLED NO.1 ONE-WAY CLUTCH AND SECOND BRAKE HUB ONTO PLANETARY SUN GEAR
Look
Free
Hold
Turn
Y_003919
5. CHECK OPERATION OF NO.1 ONE-WAY CLUTCH
(a) Hold the planetary sun gear and turn the second brake hub.
(b) The second brake hub turns freely clockwise and locks counterclockwise.
(c) Remove the one-way clutch and second brake hub.
Y_003924
6. INSTALL OIL SEAL RINGS
(a) Coat the 2 oil seal rings with AFT.
(b) Install the 2 oil seal rings onto the planetary sun gear.
NOTICE: Do not spread the ring ends too much.
HINT: After installing the oil seal rings, check that they rotate smoothly.
