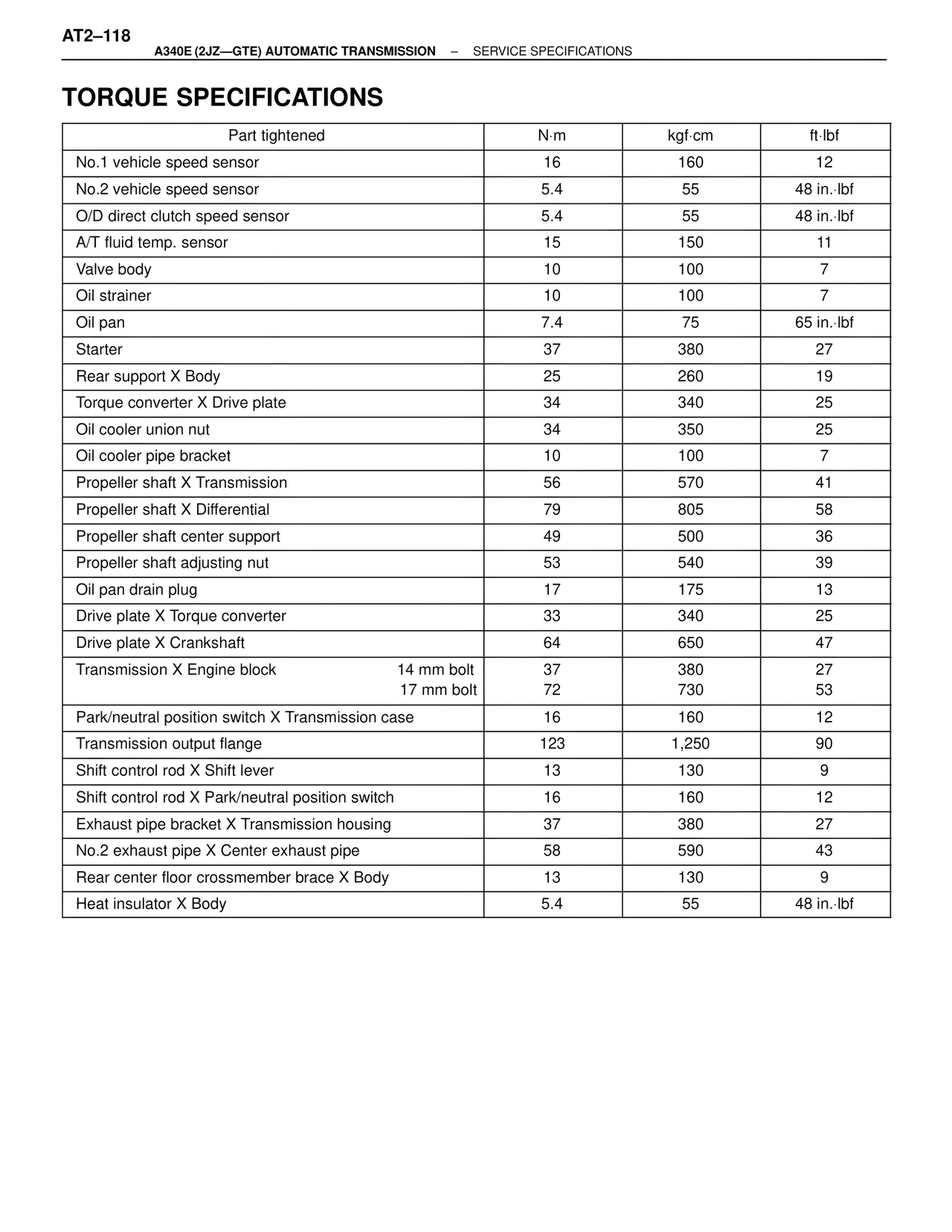

AT2–118 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – SERVICE SPECIFICATIONS TORQUE SPECIFICATIONS Part tightened N·m kgf·cm ft·lbf No.1 vehicle speed sensor 16 160 12 No.2 vehicle speed sensor 5.4 55 48 in.·lbf O/D direct clutch speed sensor 5.4 55 48 in.·lbf A/T fluid temp. sensor 15 150 11 Valve body 10 100 7 Oil strainer 10 100 7 Oil pan 7.4 75 65 in.·lbf Starter 37 380 27 Rear support X Body 25 260 19 Torque converter X Drive plate 34 340 25 Oil cooler union nut 34 350 25 Oil cooler pipe bracket 10 100 7 Propeller shaft X Transmission 56 570 41 Propeller shaft X Differential 79 805 58 Propeller shaft center support 49 500 36 Propeller shaft adjusting nut 53 540 39 Oil pan drain plug 17 175 13 Drive plate X Torque converter 33 340 25 Drive plate X Crankshaft 64 650 47 Transmission X Engine block 14 mm bolt 37 380 27 17 mm bolt 72 730 53 Park/neutral position switch X Transmission case 16 160 12 Transmission output flange 123 1,250 90 Shift control rod X Shift lever 13 130 9 Shift control rod X Park/neutral position switch 16 160 12 Exhaust pipe bracket X Transmission housing 37 380 27 No.2 exhaust pipe X Center exhaust pipe 58 590 43 Rear center floor crossmember brace X Body 13 130 9 Heat insulator X Body 5.4 55 48 in.·lbf
