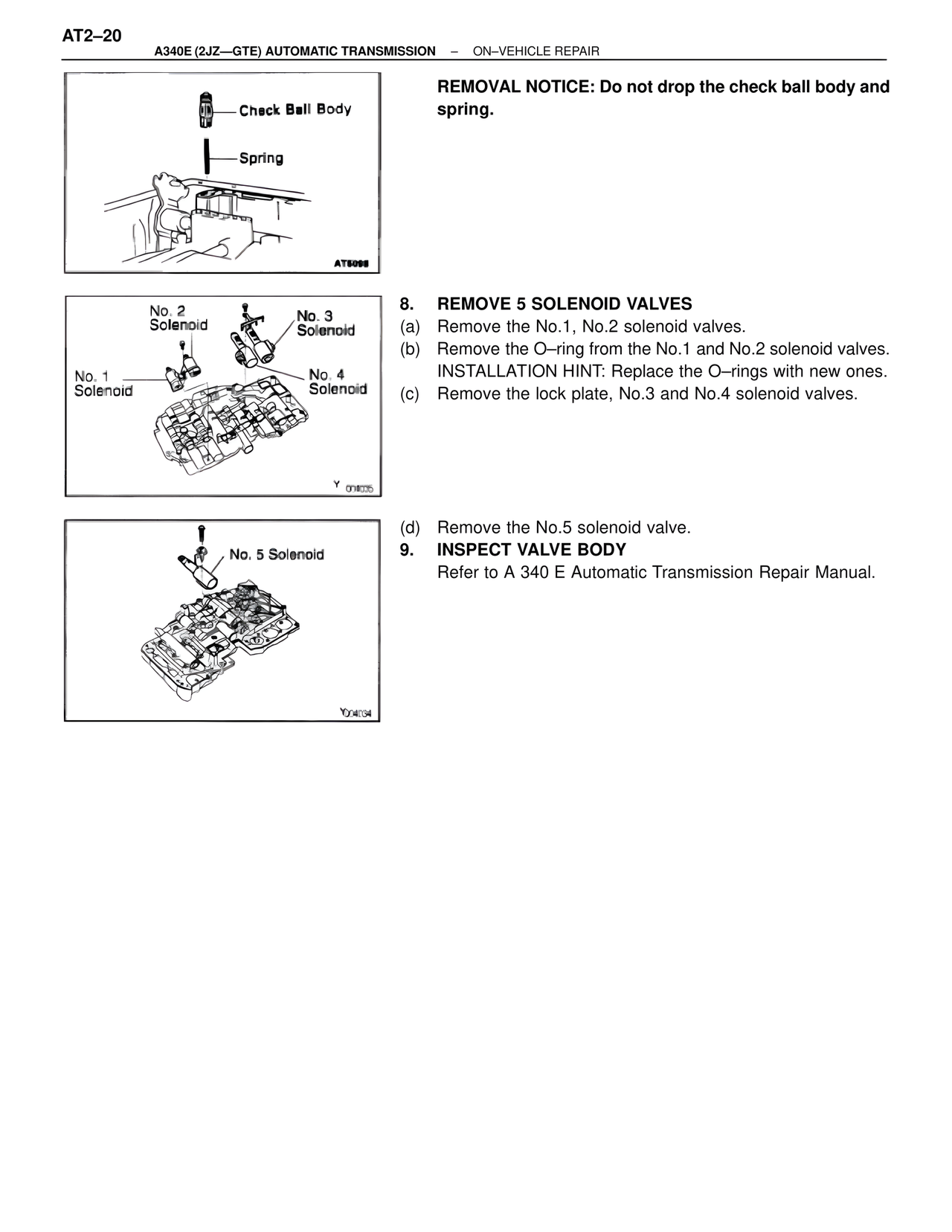

AT2–20 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR Check Ball Body Spring AT6098 REMOVAL NOTICE: Do not drop the check ball body and spring. No. 2 Solenoid No. 3 Solenoid No. 1 Solenoid No. 4 Solenoid Y 0n8025 8. REMOVE 5 SOLENOID VALVES (a) Remove the No.1, No.2 solenoid valves. (b) Remove the O–ring from the No.1 and No.2 solenoid valves. INSTALLATION HINT: Replace the O–rings with new ones. (c) Remove the lock plate, No.3 and No.4 solenoid valves. No. 5 Solenoid Y004034 (d) Remove the No.5 solenoid valve. 9. INSPECT VALVE BODY Refer to A 340 E Automatic Transmission Repair Manual.
