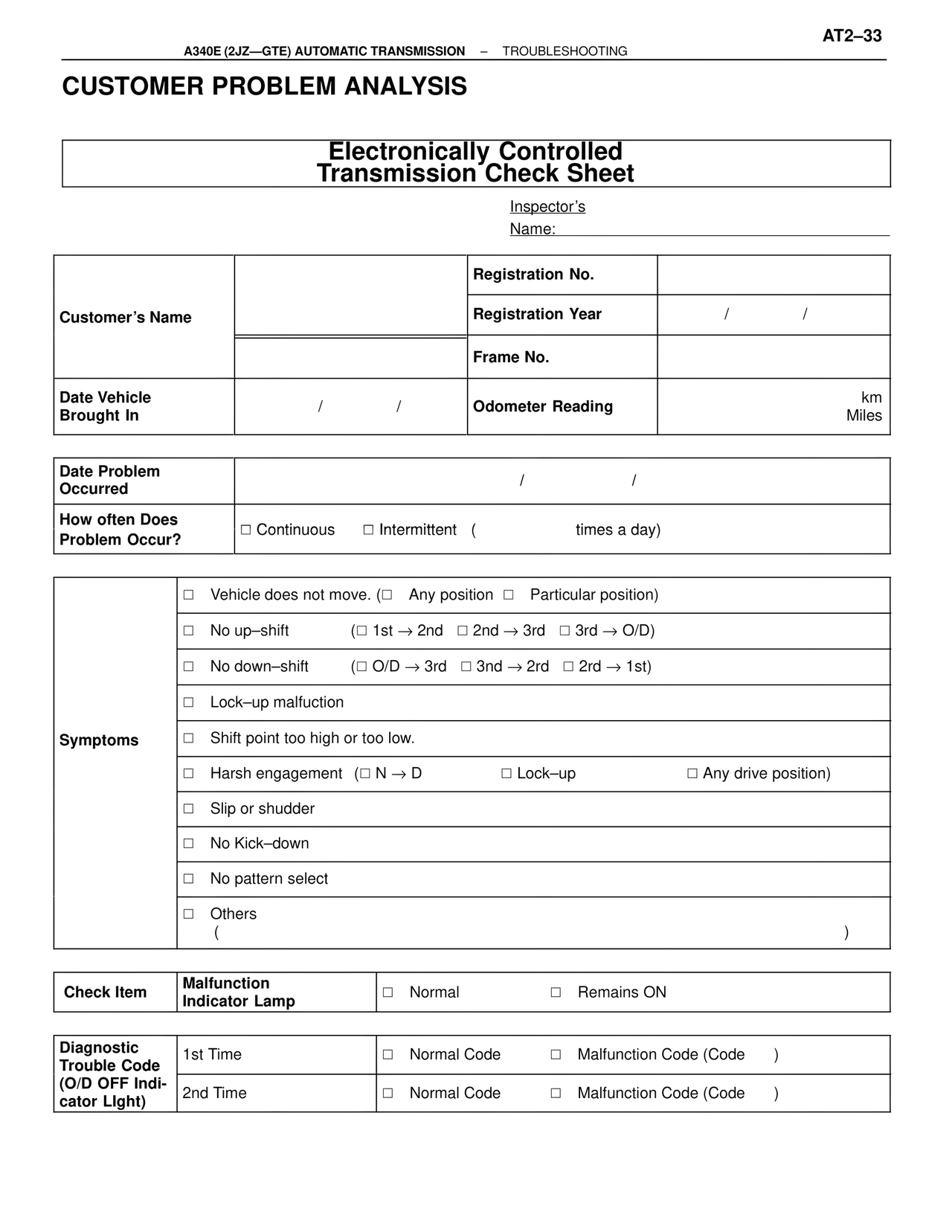

AT2–33
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
CUSTOMER PROBLEM ANALYSIS
Electronically Controlled
Transmission Check Sheet
Inspector's
Name:
Customer's Name
Registration No.
Registration Year / /
Frame No.
Date Vehicle
Brought In / /
Odometer Reading km
Miles
Date Problem
Occurred / /
How often Does
Problem Occur? □ Continuous □ Intermittent ( times a day)
Symptoms
□ Vehicle does not move. (□ Any position □ Particular position)
□ No up–shift (□ 1st → 2nd □ 2nd → 3rd □ 3rd → O/D)
□ No down–shift (□ O/D → 3rd □ 3nd → 2nd □ 2rd → 1st)
□ Lock–up malfuction
□ Shift point too high or too low.
□ Harsh engagement (□ N → D □ Lock–up □ Any drive position)
□ Slip or shudder
□ No Kick–down
□ No pattern select
□ Others
( )
Check Item Malfunction
Indicator Lamp □ Normal □ Remains ON
Diagnostic
Trouble Code
(O/D OFF Indi-
cator LIght)
1st Time □ Normal Code □ Malfunction Code (Code )
2nd Time □ Normal Code □ Malfunction Code (Code )
