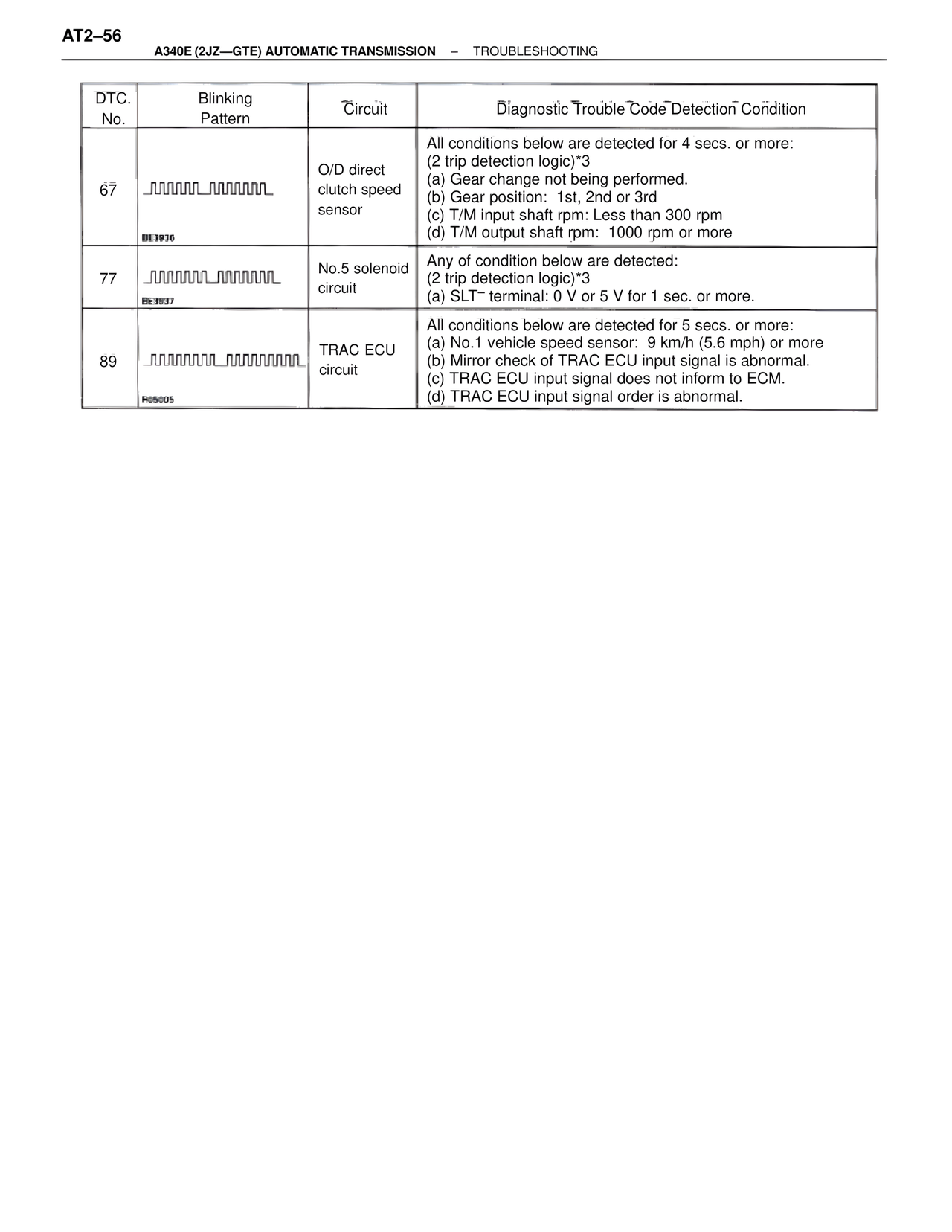

AT2–56 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING DTC. No. | Blinking Pattern | Circuit | Diagnostic Trouble Code Detection Condition 67 | BE3936 | O/D direct clutch speed sensor | All conditions below are detected for 4 secs. or more: (2 trip detection logic)*3 (a) Gear change not being performed. (b) Gear position: 1st, 2nd or 3rd (c) T/M input shaft rpm: Less than 300 rpm (d) T/M output shaft rpm: 1000 rpm or more 77 | BE3937 | No.5 solenoid circuit | Any of condition below are detected: (2 trip detection logic)*3 (a) SLT⁻ terminal: 0 V or 5 V for 1 sec. or more. 89 | R05005 | TRAC ECU circuit | All conditions below are detected for 5 secs. or more: (a) No.1 vehicle speed sensor: 9 km/h (5.6 mph) or more (b) Mirror check of TRAC ECU input signal is abnormal. (c) TRAC ECU input signal does not inform to ECM. (d) TRAC ECU input signal order is abnormal.
