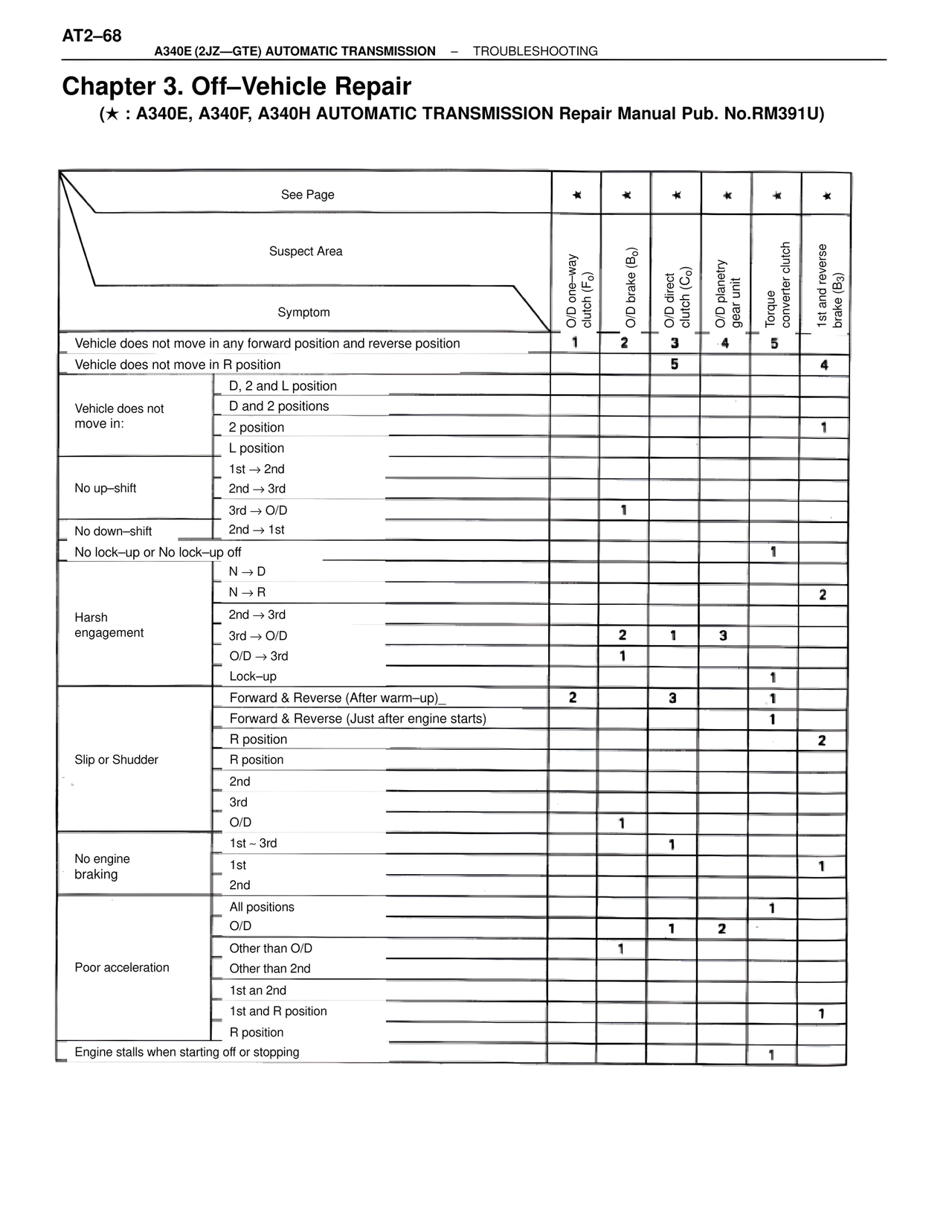

AT2–68 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING Chapter 3. Off–Vehicle Repair (★ : A340E, A340F, A340H AUTOMATIC TRANSMISSION Repair Manual Pub. No.RM391U) See Page Suspect Area Symptom O/D one–way clutch (F₀) O/D brake (B₀) O/D direct clutch (C₀) O/D planetry gear unit Torque converter clutch 1st and reverse brake (B₃) Vehicle does not move in any forward position and reverse position 1 2 3 4 5 Vehicle does not move in R position 5 4 Vehicle does not move in: D, 2 and L position D and 2 positions 2 position 1 L position No up–shift 1st → 2nd 2nd → 3rd 3rd → O/D 1 No down–shift 2nd → 1st No lock–up or No lock–up off 1 Harsh engagement N → D N → R 2 2nd → 3rd 3rd → O/D 2 1 3 O/D → 3rd 1 Lock–up 1 Slip or Shudder Forward & Reverse (After warm–up)_ 2 3 1 Forward & Reverse (Just after engine starts) 1 R position 2 R position 2nd 3rd O/D 1 No engine braking 1st – 3rd 1 1st 1 2nd Poor acceleration All positions 1 O/D 1 2 Other than O/D 1 Other than 2nd 1st an 2nd 1st and R position 1 R position Engine stalls when starting off or stopping 1
