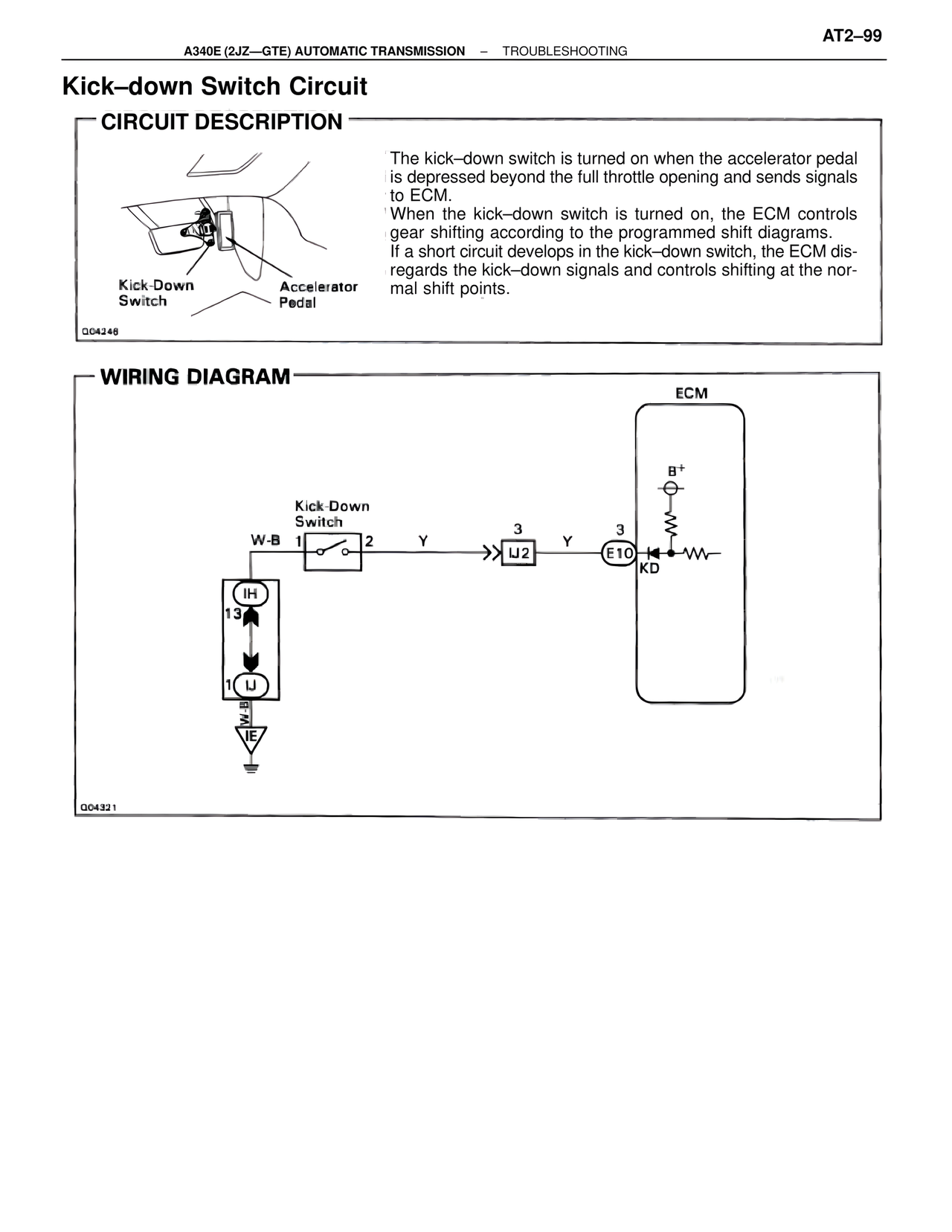

AT2–99
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
Kick–down Switch Circuit
CIRCUIT DESCRIPTION
Kick-Down
Switch
Accelerator
Pedal
Q04248
The kick–down switch is turned on when the accelerator pedal
is depressed beyond the full throttle opening and sends signals
to ECM.
When the kick–down switch is turned on, the ECM controls
gear shifting according to the programmed shift diagrams.
If a short circuit develops in the kick–down switch, the ECM dis-
regards the kick–down signals and controls shifting at the nor-
mal shift points.
WIRING DIAGRAM
ECM
B+
Kick-Down
Switch
W-B 1 2 Y 3 Y 3
IJ2 E10
KD
IH
13
1 IJ
W-B
IE
Q04321
