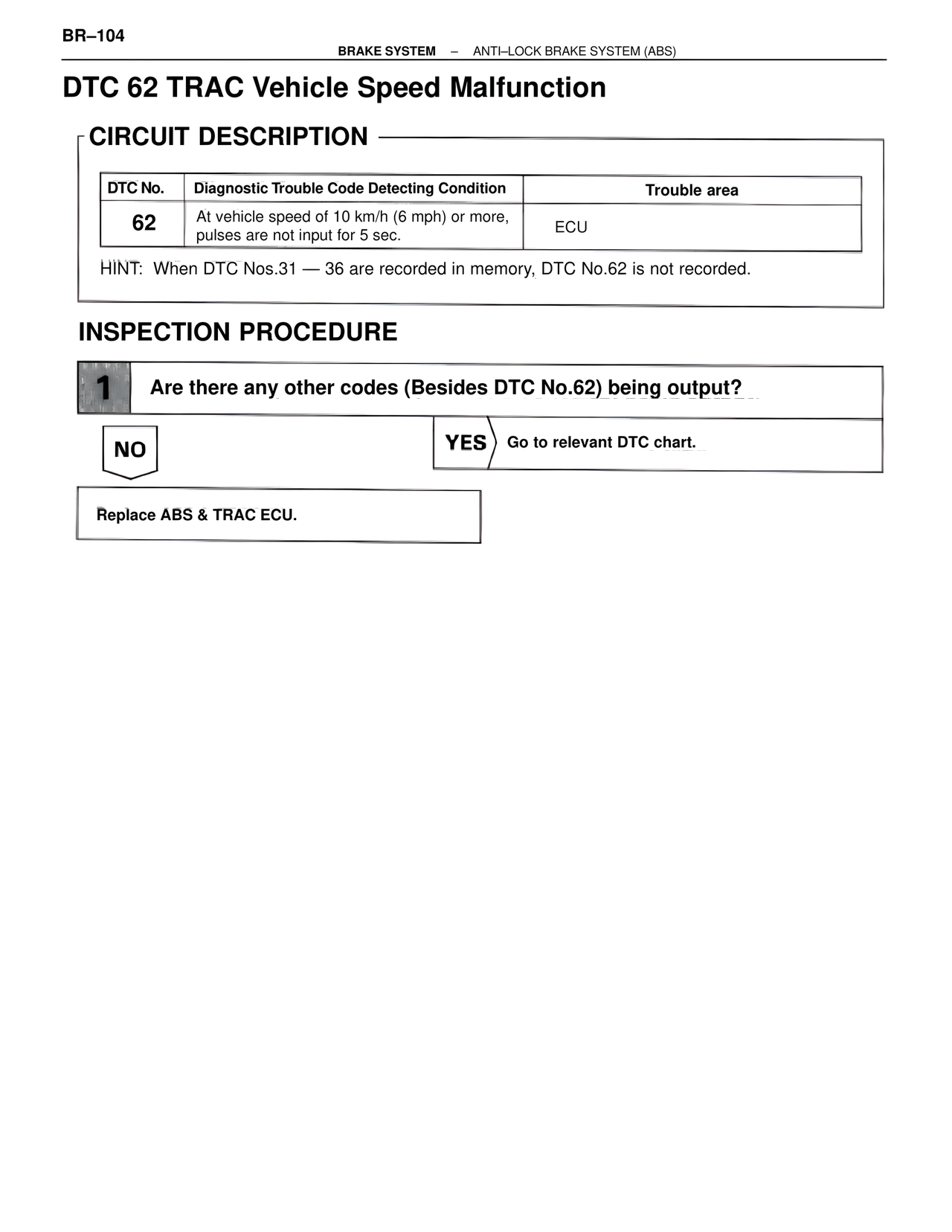

BR–104
BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)
DTC 62 TRAC Vehicle Speed Malfunction
CIRCUIT DESCRIPTION
DTC No. | Diagnostic Trouble Code Detecting Condition | Trouble area
62 | At vehicle speed of 10 km/h (6 mph) or more, pulses are not input for 5 sec. | ECU
HINT: When DTC Nos.31 — 36 are recorded in memory, DTC No.62 is not recorded.
INSPECTION PROCEDURE
1 Are there any other codes (Besides DTC No.62) being output?
NO YES > Go to relevant DTC chart.
Replace ABS & TRAC ECU.
