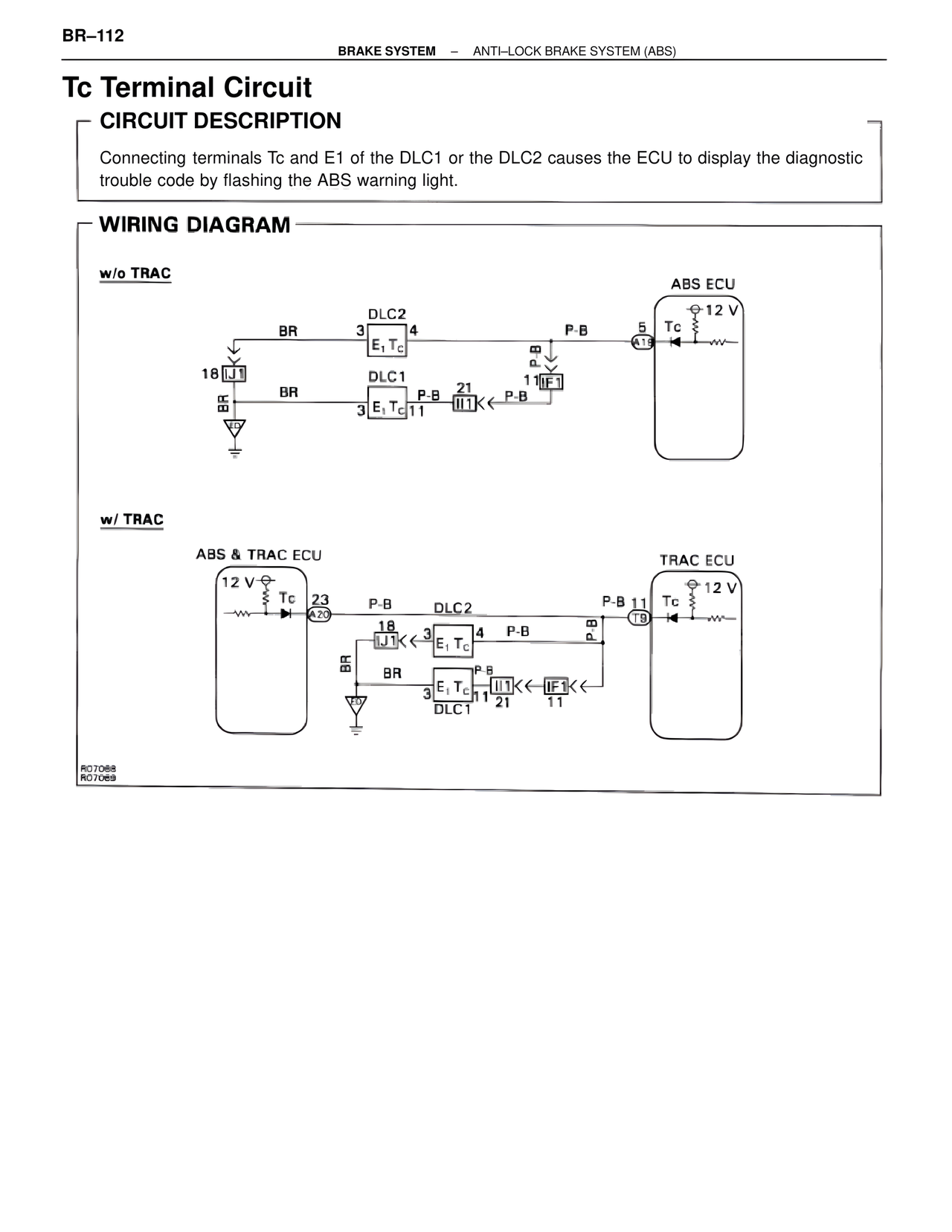

BR–112 BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS) Tc Terminal Circuit CIRCUIT DESCRIPTION Connecting terminals Tc and E1 of the DLC1 or the DLC2 causes the ECU to display the diagnostic trouble code by flashing the ABS warning light. WIRING DIAGRAM w/o TRAC ABS ECU 12 V Tc DLC2 BR 3 4 E1 Tc P-B 5 A13 18 IJ1 BR DLC1 P-B 21 11 IF1 P-B BR 3 E1 Tc 11 II1 P-B w/ TRAC ABS & TRAC ECU TRAC ECU 12 V Tc 23 P-B DLC2 P-B 11 Tc 12 V A20 18 3 4 P-B T9 IJ1 E1 Tc BR BR 3 E1 Tc P-B II1 IF1 3 DLC1 21 11 R07068 R07069
