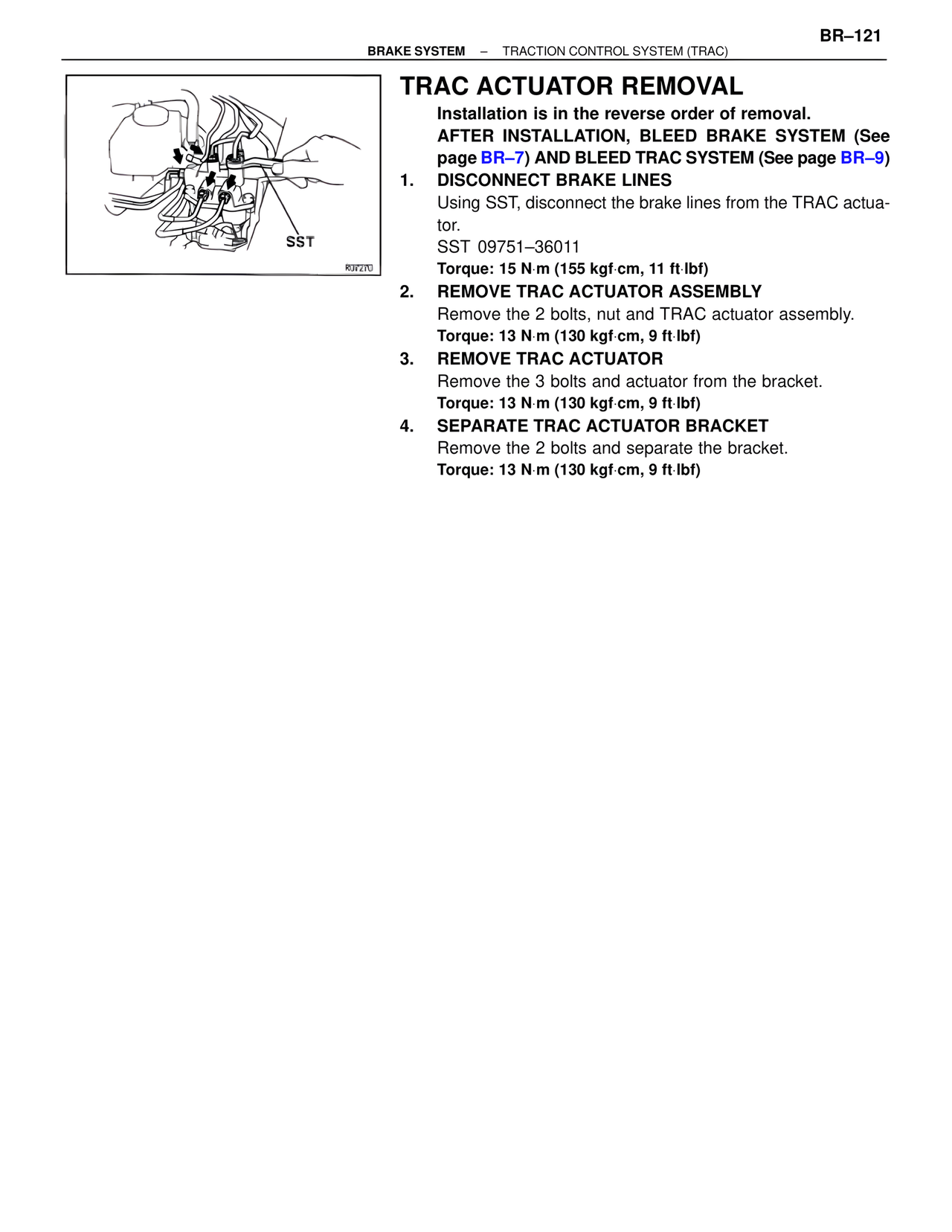

BR–121 BRAKE SYSTEM – TRACTION CONTROL SYSTEM (TRAC) TRAC ACTUATOR REMOVAL Installation is in the reverse order of removal. AFTER INSTALLATION, BLEED BRAKE SYSTEM (See page BR–7) AND BLEED TRAC SYSTEM (See page BR–9) 1. DISCONNECT BRAKE LINES Using SST, disconnect the brake lines from the TRAC actuator. SST 09751–36011 Torque: 15 N·m (155 kgf·cm, 11 ft·lbf) 2. REMOVE TRAC ACTUATOR ASSEMBLY Remove the 2 bolts, nut and TRAC actuator assembly. Torque: 13 N·m (130 kgf·cm, 9 ft·lbf) 3. REMOVE TRAC ACTUATOR Remove the 3 bolts and actuator from the bracket. Torque: 13 N·m (130 kgf·cm, 9 ft·lbf) 4. SEPARATE TRAC ACTUATOR BRACKET Remove the 2 bolts and separate the bracket. Torque: 13 N·m (130 kgf·cm, 9 ft·lbf) SST R07270
