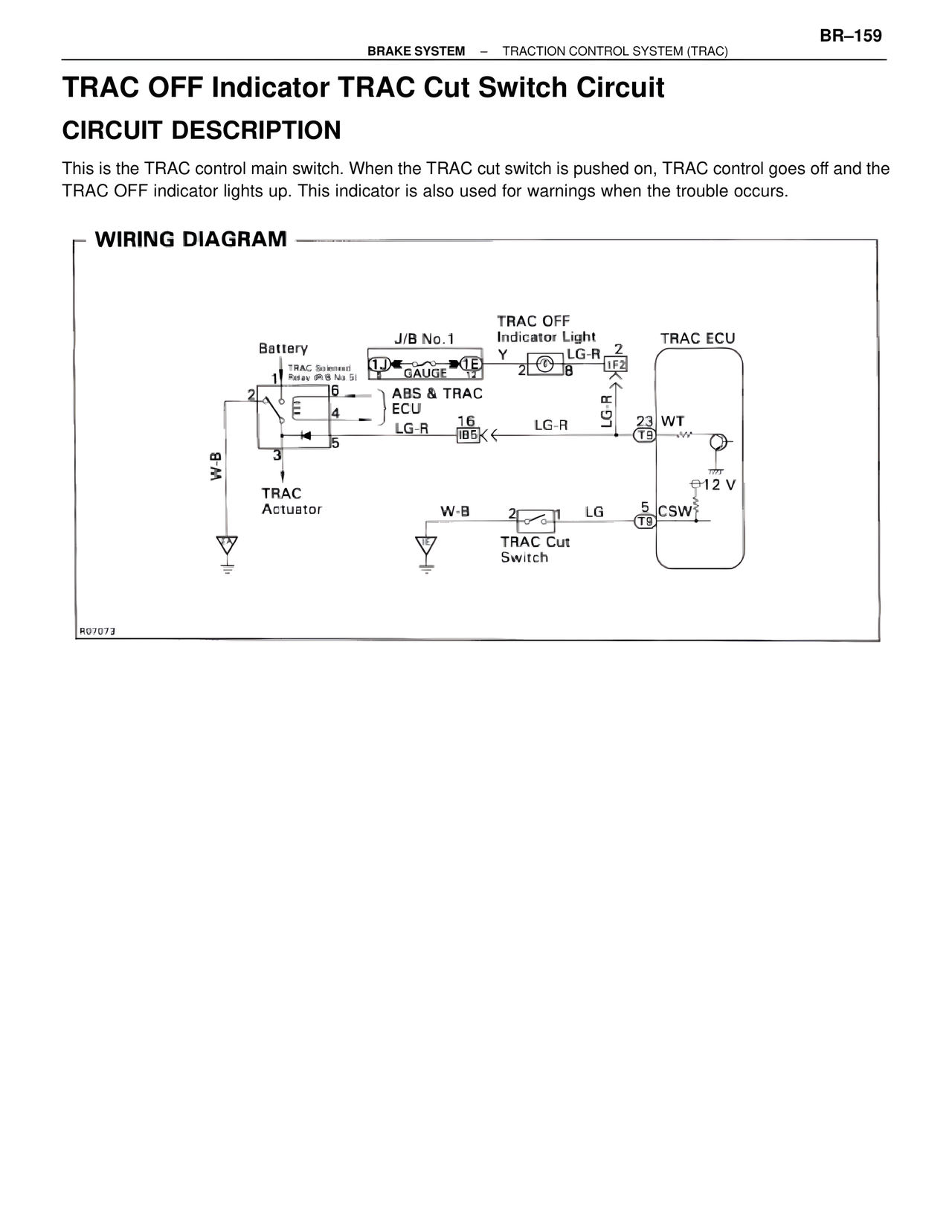

BR–159 BRAKE SYSTEM – TRACTION CONTROL SYSTEM (TRAC) TRAC OFF Indicator TRAC Cut Switch Circuit CIRCUIT DESCRIPTION This is the TRAC control main switch. When the TRAC cut switch is pushed on, TRAC control goes off and the TRAC OFF indicator lights up. This indicator is also used for warnings when the trouble occurs. WIRING DIAGRAM Battery TRAC Solenoid Relay (R/B No. 5) 1 2 6 E 4 5 3 W-B TRAC Actuator J/B No. 1 1 GAUGE 1B ABS & TRAC ECU LG-R 16 IB5 TRAC OFF Indicator Light Y LG-R 2 2 8 1F2 LG-R LG-R TRAC ECU 23 WT T9 12 V W-B 2 LG 5 CSW T9 TRAC Cut Switch R07073
