BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)

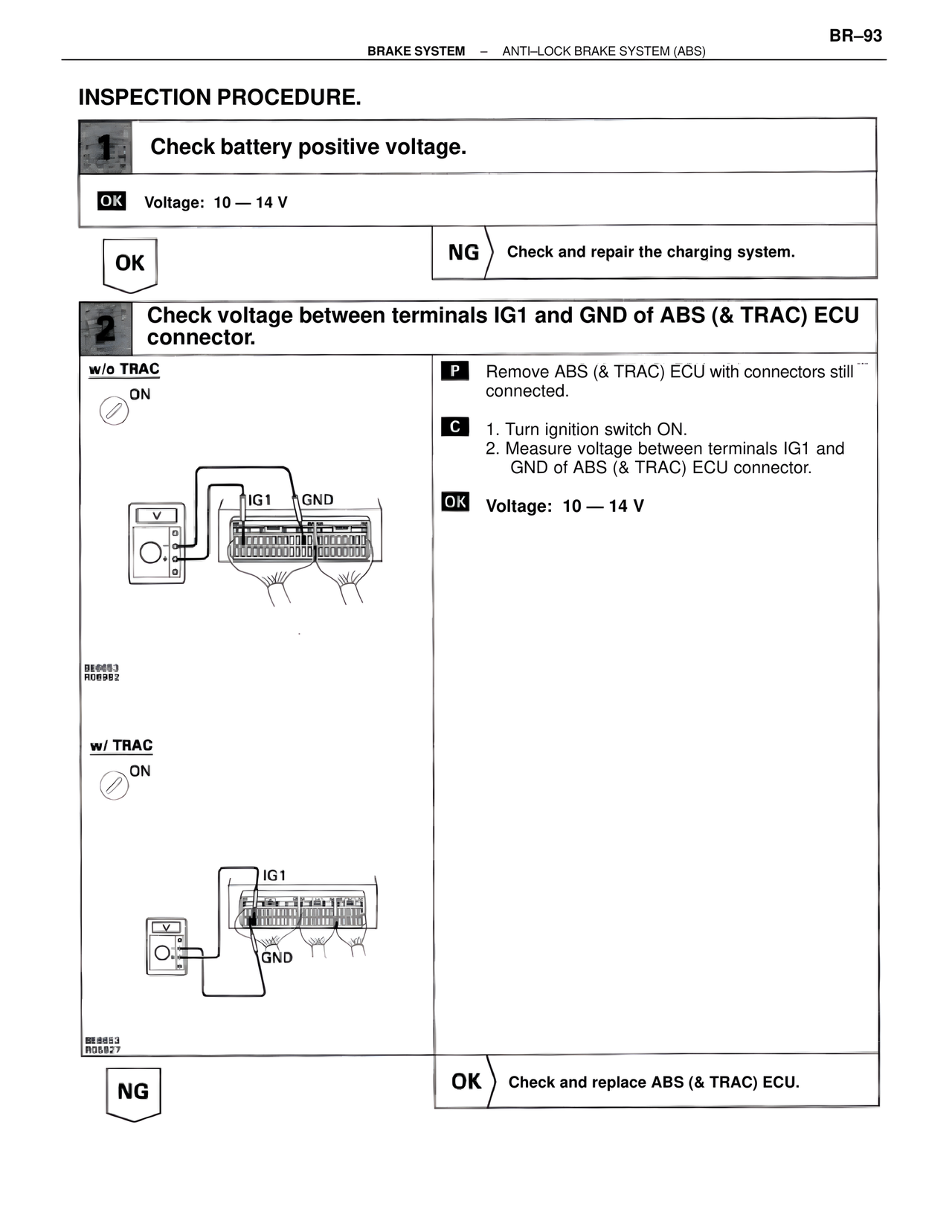

INSPECTION PROCEDURE.
1 Check battery positive voltage.
OK Voltage: 10 — 14 V
OK NG Check and repair the charging system.
2 Check voltage between terminals IG1 and GND of ABS (& TRAC) ECU connector.
w/o TRAC
ON
IG1 GND
BE6653
R06982
w/ TRAC
ON
IG1
GND
BE8853
R05827
P Remove ABS (& TRAC) ECU with connectors still connected.
C 1. Turn ignition switch ON.
2. Measure voltage between terminals IG1 and GND of ABS (& TRAC) ECU connector.
OK Voltage: 10 — 14 V
NG OK Check and replace ABS (& TRAC) ECU.
