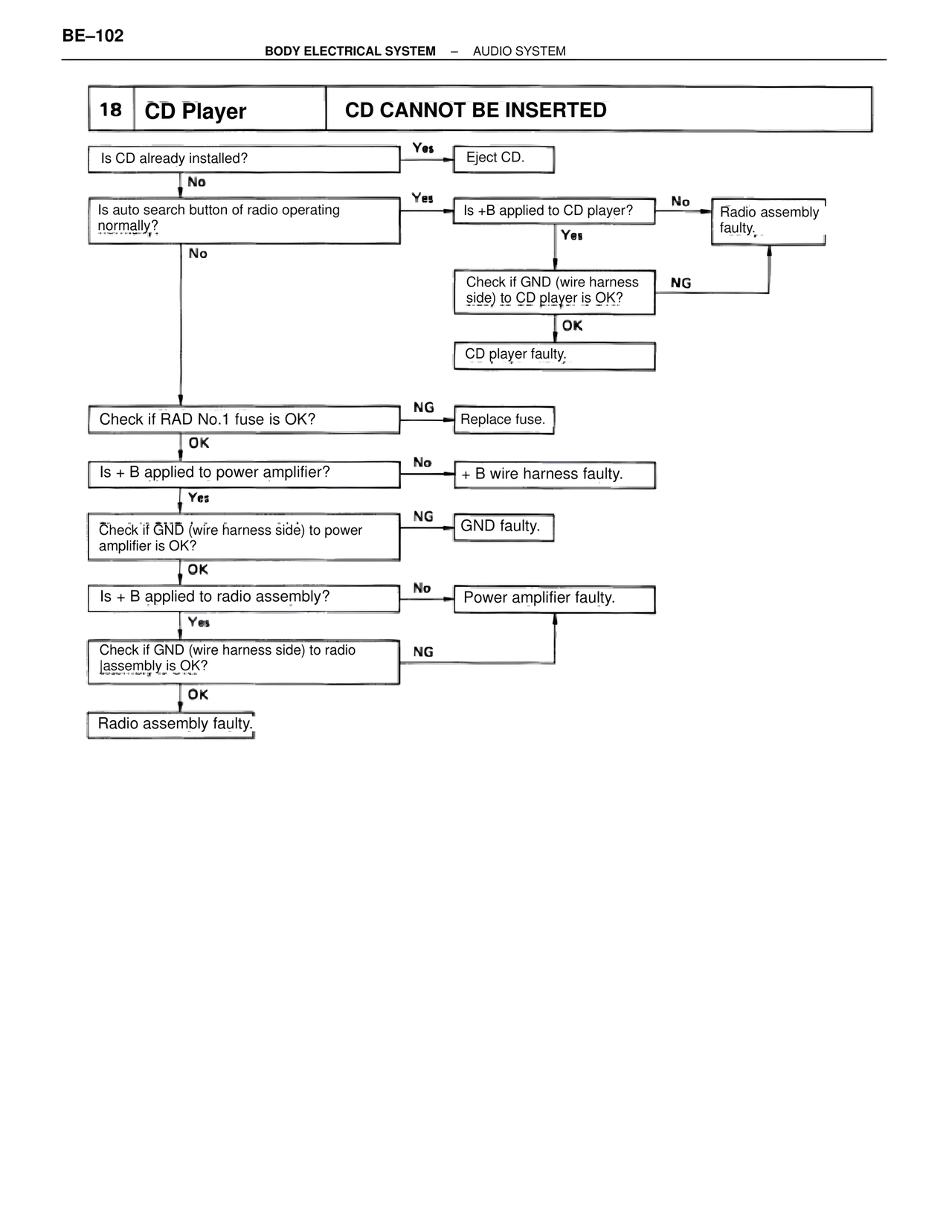

BE–102 BODY ELECTRICAL SYSTEM – AUDIO SYSTEM 18 | CD Player | CD CANNOT BE INSERTED Is CD already installed? Yes → Eject CD. No Is auto search button of radio operating normally? Yes → Is +B applied to CD player? No → Radio assembly faulty. Yes Check if GND (wire harness side) to CD player is OK? NG → Radio assembly faulty. OK CD player faulty. No Check if RAD No.1 fuse is OK? NG → Replace fuse. OK Is + B applied to power amplifier? No → + B wire harness faulty. Yes Check if GND (wire harness side) to power amplifier is OK? NG → GND faulty. OK Is + B applied to radio assembly? No → Power amplifier faulty. Yes Check if GND (wire harness side) to radio assembly is OK? NG → OK Radio assembly faulty.
