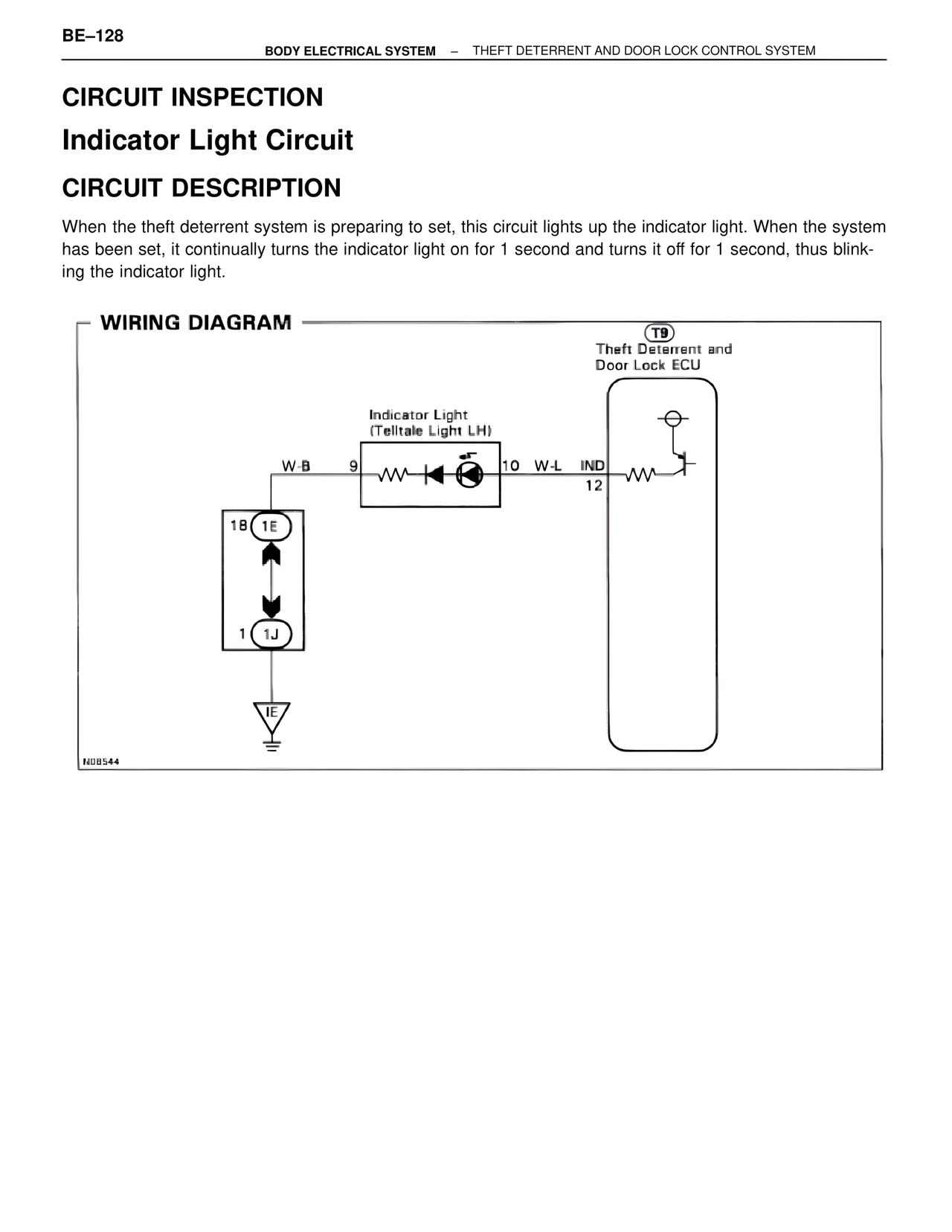

BE–128 BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM CIRCUIT INSPECTION Indicator Light Circuit CIRCUIT DESCRIPTION When the theft deterrent system is preparing to set, this circuit lights up the indicator light. When the system has been set, it continually turns the indicator light on for 1 second and turns it off for 1 second, thus blinking the indicator light. WIRING DIAGRAM T9 Theft Deterrent and Door Lock ECU Indicator Light (Telltale Light LH) W-B 9 W-L IND 10 12 18 1E 1 1J IE N08544
