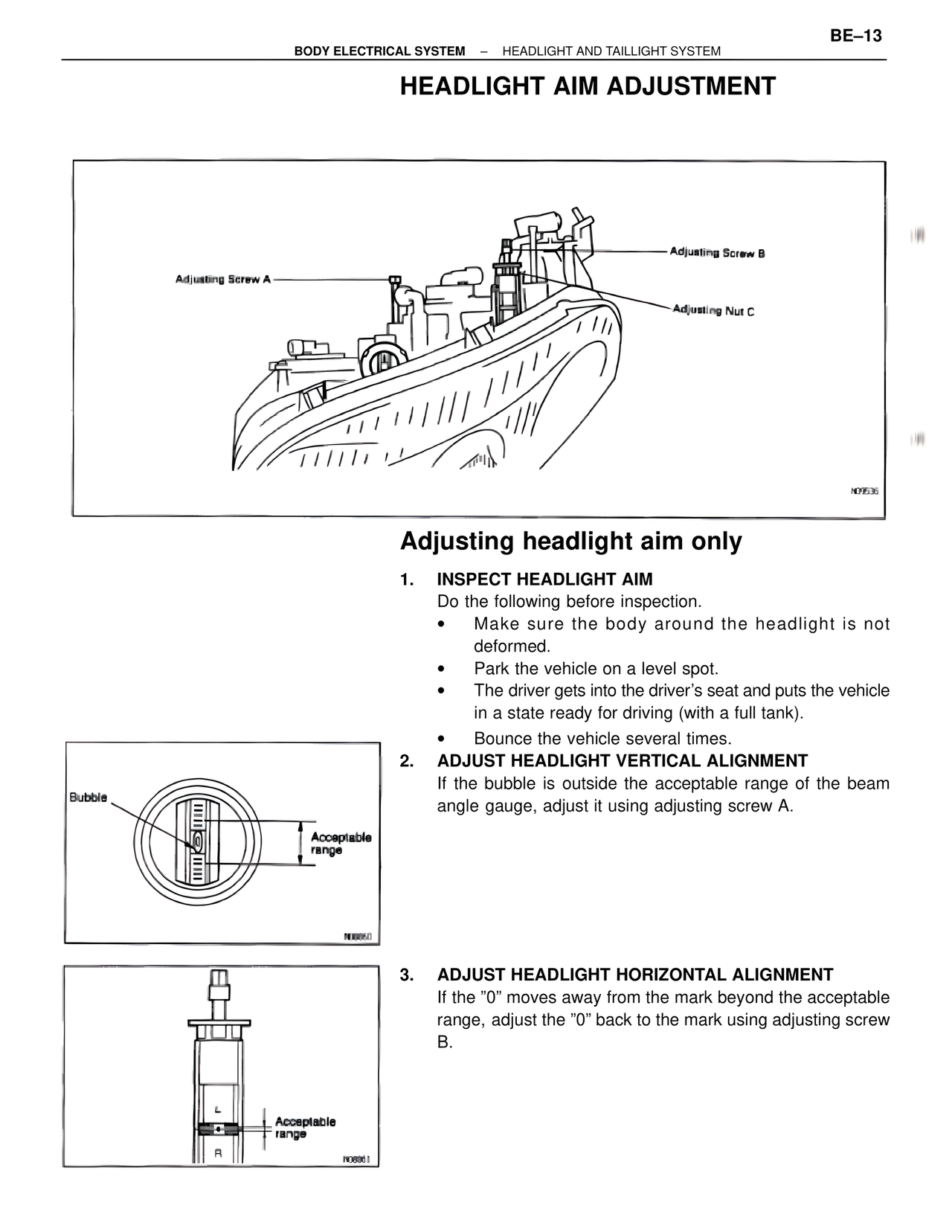

BODY ELECTRICAL SYSTEM – HEADLIGHT AND TAILLIGHT SYSTEM HEADLIGHT AIM ADJUSTMENT Adjusting Screw A Adjusting Screw B Adjusting Nut C N09536 Adjusting headlight aim only 1. INSPECT HEADLIGHT AIM Do the following before inspection. • Make sure the body around the headlight is not deformed. • Park the vehicle on a level spot. • The driver gets into the driver's seat and puts the vehicle in a state ready for driving (with a full tank). • Bounce the vehicle several times. 2. ADJUST HEADLIGHT VERTICAL ALIGNMENT If the bubble is outside the acceptable range of the beam angle gauge, adjust it using adjusting screw A. Bubble Acceptable range N08860 3. ADJUST HEADLIGHT HORIZONTAL ALIGNMENT If the "0" moves away from the mark beyond the acceptable range, adjust the "0" back to the mark using adjusting screw B. L Acceptable range R N08861
