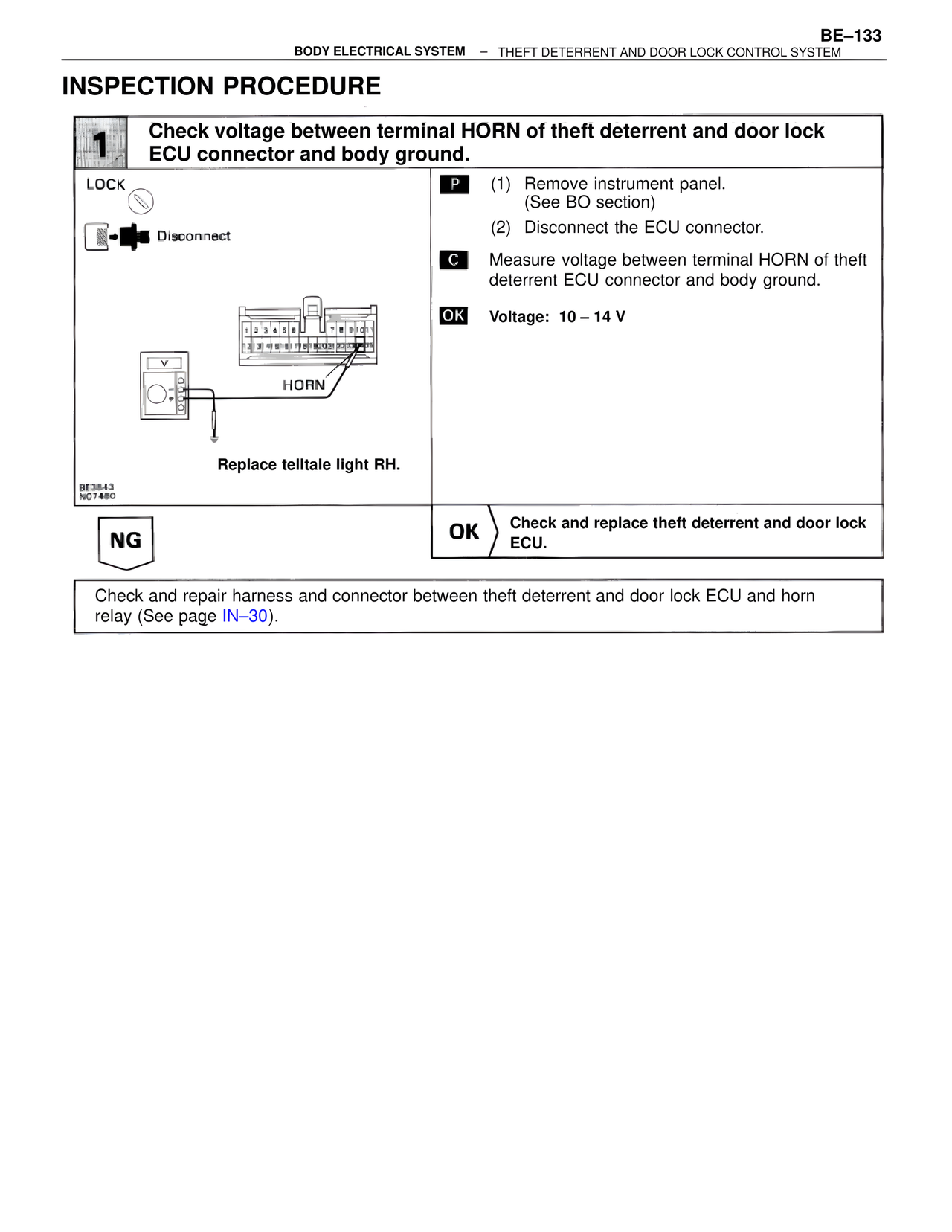

INSPECTION PROCEDURE
1 Check voltage between terminal HORN of theft deterrent and door lock ECU connector and body ground.
LOCK
Disconnect
HORN
Replace telltale light RH.
BE3843
N07480
P (1) Remove instrument panel.
(See BO section)
(2) Disconnect the ECU connector.
C Measure voltage between terminal HORN of theft deterrent ECU connector and body ground.
OK Voltage: 10 – 14 V
NG
OK Check and replace theft deterrent and door lock ECU.
Check and repair harness and connector between theft deterrent and door lock ECU and horn relay (See page IN–30).
