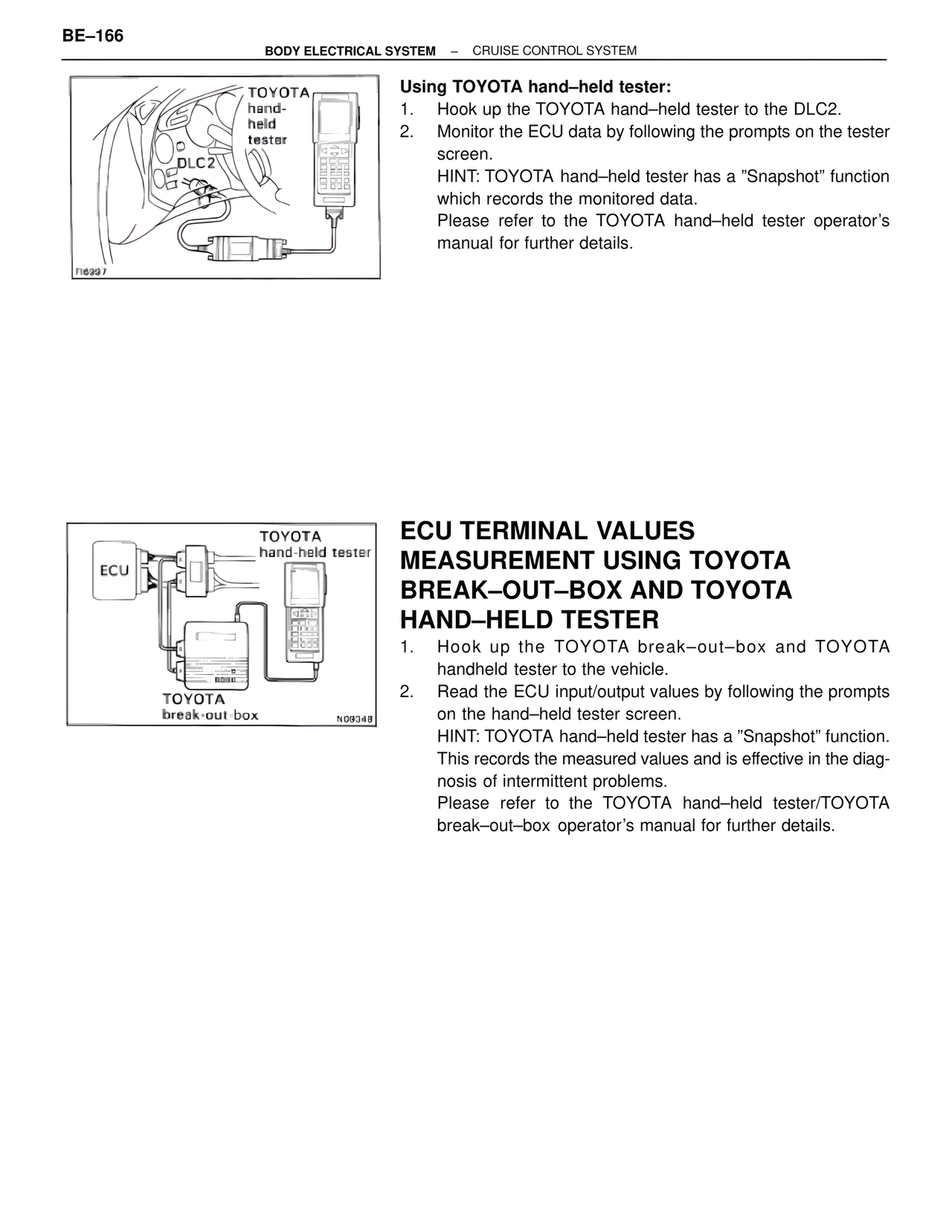

BE–166
BODY ELECTRICAL SYSTEM – CRUISE CONTROL SYSTEM
TOYOTA
hand–held
tester
DLC2
F16397
Using TOYOTA hand–held tester:
1. Hook up the TOYOTA hand–held tester to the DLC2.
2. Monitor the ECU data by following the prompts on the tester
screen.
HINT: TOYOTA hand–held tester has a "Snapshot" function
which records the monitored data.
Please refer to the TOYOTA hand–held tester operator's
manual for further details.
TOYOTA
hand-held tester
ECU
TOYOTA
break-out-box
N09348
ECU TERMINAL VALUES
MEASUREMENT USING TOYOTA
BREAK–OUT–BOX AND TOYOTA
HAND–HELD TESTER
1. Hook up the TOYOTA break–out–box and TOYOTA
handheld tester to the vehicle.
2. Read the ECU input/output values by following the prompts
on the hand–held tester screen.
HINT: TOYOTA hand–held tester has a "Snapshot" function.
This records the measured values and is effective in the diag-
nosis of intermittent problems.
Please refer to the TOYOTA hand–held tester/TOYOTA
break–out–box operator's manual for further details.
