BODY ELECTRICAL SYSTEM – FOG LIGHT SYSTEM
BE–25

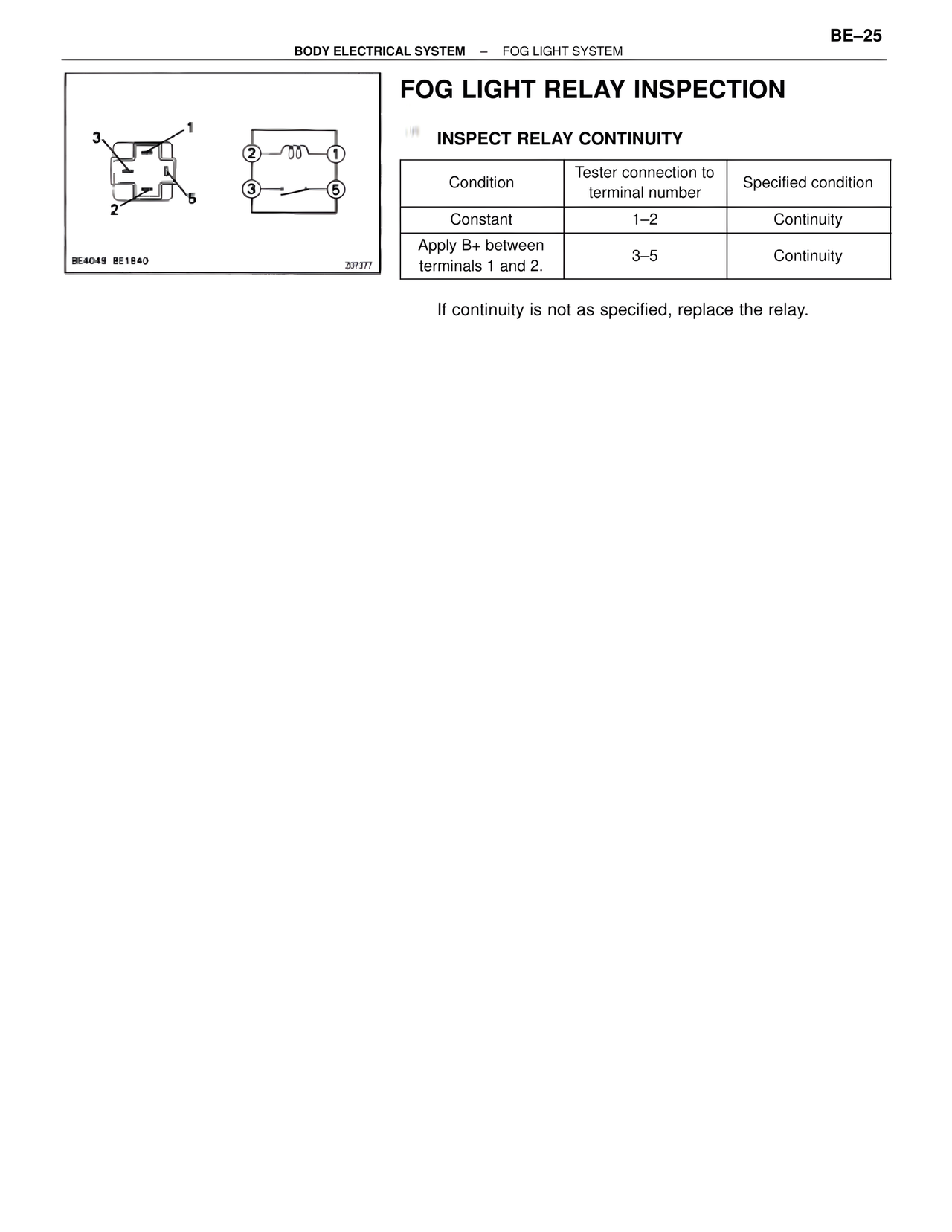

FOG LIGHT RELAY INSPECTION
INSPECT RELAY CONTINUITY
Condition | Tester connection to terminal number | Specified condition
Constant | 1–2 | Continuity
Apply B+ between terminals 1 and 2. | 3–5 | Continuity
If continuity is not as specified, replace the relay.
BE4049 BE1B40
207377
3
1
2
5
2
1
3
5
