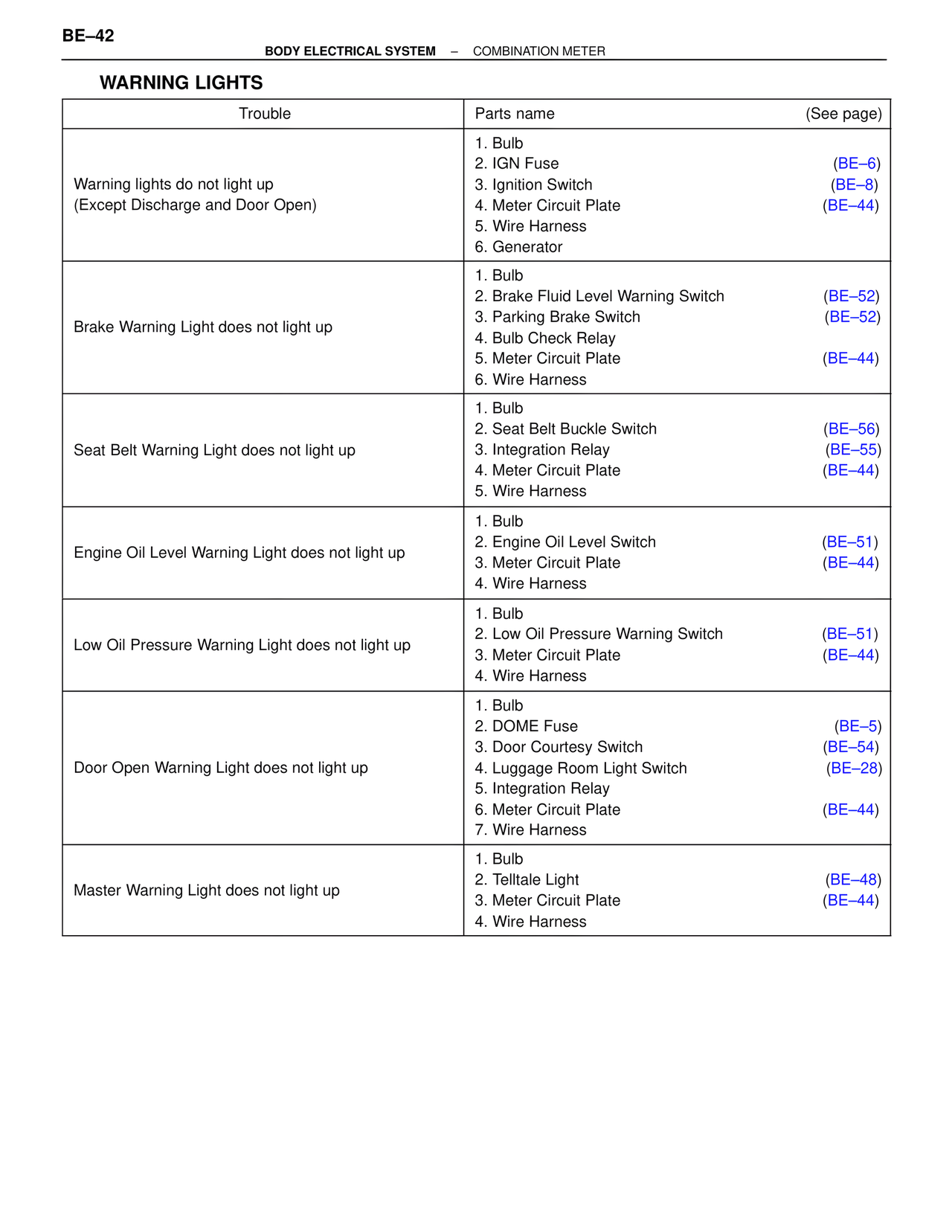

BE–42
BODY ELECTRICAL SYSTEM – COMBINATION METER
WARNING LIGHTS
Trouble | Parts name | (See page)
Warning lights do not light up
(Except Discharge and Door Open)
1. Bulb
2. IGN Fuse (BE–6)
3. Ignition Switch (BE–8)
4. Meter Circuit Plate (BE–44)
5. Wire Harness
6. Generator
Brake Warning Light does not light up
1. Bulb
2. Brake Fluid Level Warning Switch (BE–52)
3. Parking Brake Switch (BE–52)
4. Bulb Check Relay
5. Meter Circuit Plate (BE–44)
6. Wire Harness
Seat Belt Warning Light does not light up
1. Bulb
2. Seat Belt Buckle Switch (BE–56)
3. Integration Relay (BE–55)
4. Meter Circuit Plate (BE–44)
5. Wire Harness
Engine Oil Level Warning Light does not light up
1. Bulb
2. Engine Oil Level Switch (BE–51)
3. Meter Circuit Plate (BE–44)
4. Wire Harness
Low Oil Pressure Warning Light does not light up
1. Bulb
2. Low Oil Pressure Warning Switch (BE–51)
3. Meter Circuit Plate (BE–44)
4. Wire Harness
Door Open Warning Light does not light up
1. Bulb
2. DOME Fuse (BE–5)
3. Door Courtesy Switch (BE–54)
4. Luggage Room Light Switch (BE–28)
5. Integration Relay
6. Meter Circuit Plate (BE–44)
7. Wire Harness
Master Warning Light does not light up
1. Bulb
2. Telltale Light (BE–48)
3. Meter Circuit Plate (BE–44)
4. Wire Harness
