BE-6
BODY ELECTRICAL SYSTEM – POWER SOURCE

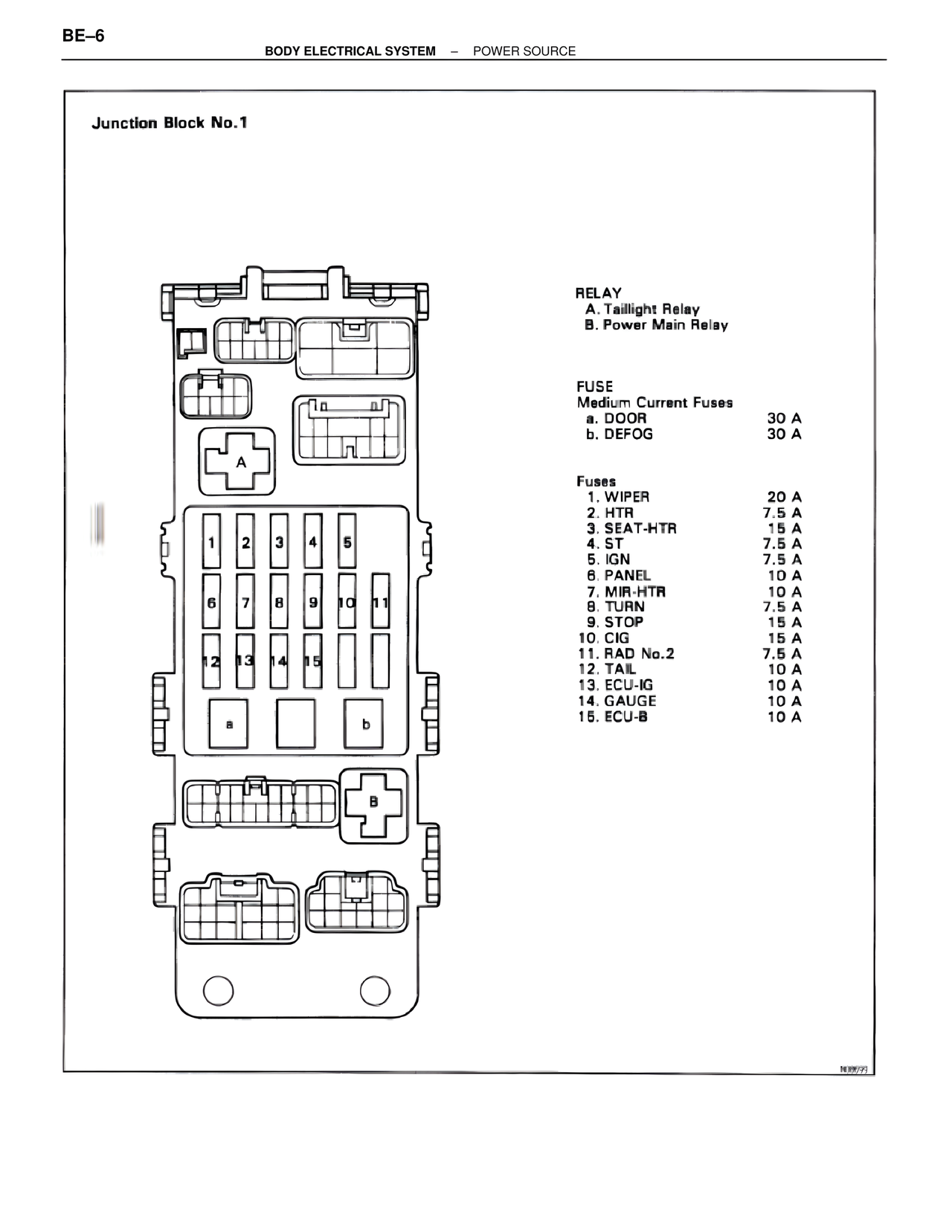

Junction Block No.1
RELAY
A. Taillight Relay
B. Power Main Relay
FUSE
Medium Current Fuses
a. DOOR 30 A
b. DEFOG 30 A
Fuses
1. WIPER 20 A
2. HTR 7.5 A
3. SEAT-HTR 15 A
4. ST 7.5 A
5. IGN 7.5 A
6. PANEL 10 A
7. MIR-HTR 10 A
8. TURN 7.5 A
9. STOP 15 A
10. CIG 15 A
11. RAD No.2 7.5 A
12. TAIL 10 A
13. ECU-IG 10 A
14. GAUGE 10 A
15. ECU-B 10 A
A
1 2 3 4 5
6 7 8 9 10 11
12 13 14 15
a b
B
N08599
